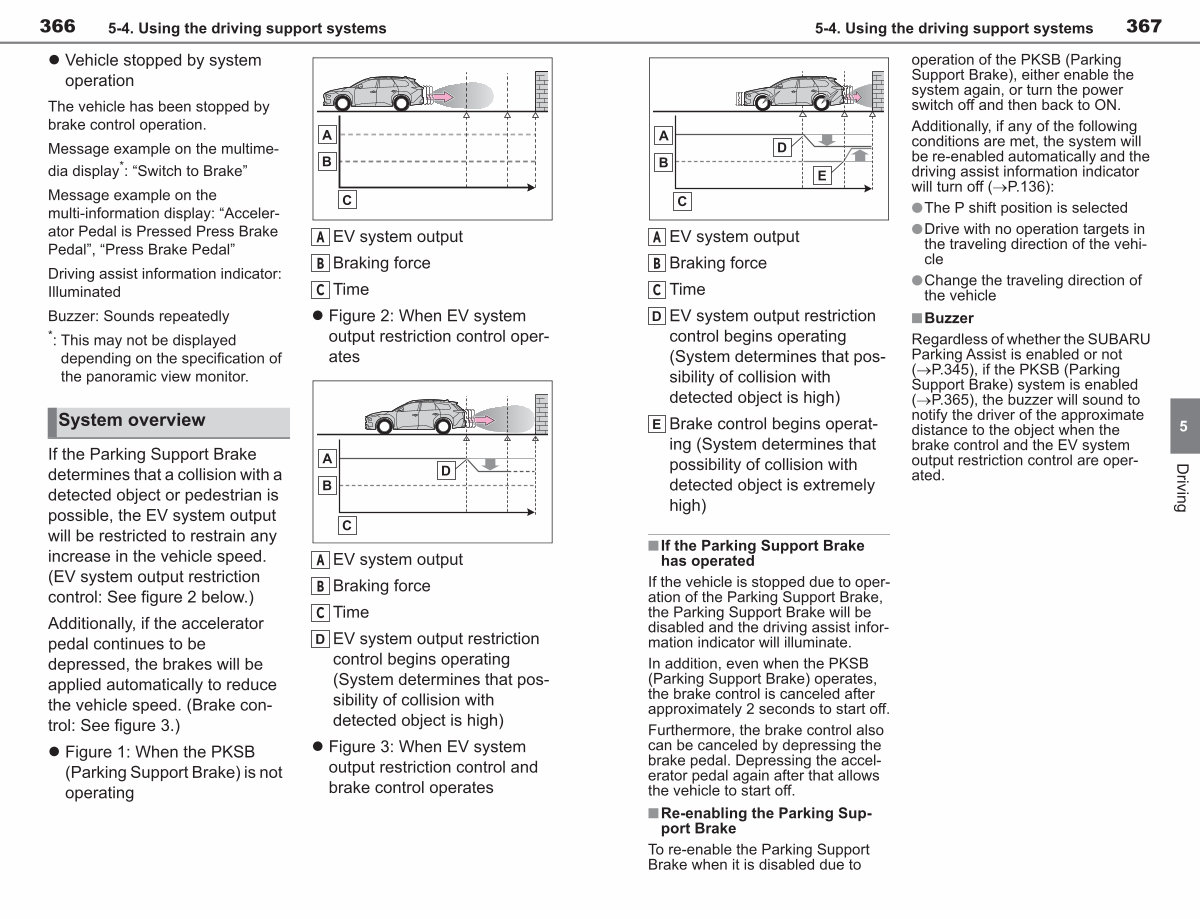

366 5-4. Using the driving support systems
• Vehicle stopped by system operation
The vehicle has been stopped by brake control operation.
Message example on the multimedia display *:“ Switch to Brake”
Message example on the multi-information display:“ Accelerator Pedal is Pressed Press Brake Pedal”,“ Press Brake Pedal”
Driving assist information indicator: Illuminated
Buzzer: Sounds repeatedly *: This may not be displayed
depending on the specification of the panoramic view monitor.
A EV system output
B Braking force
C Time
• Figure 2: When EV system output restriction control operates
System overview
If the Parking Support Brake determines that a collision with a detected object or pedestrian is possible, the EV system output will be restricted to restrain any increase in the vehicle speed.( EV system output restriction control: See figure 2 below.)
Additionally, if the accelerator pedal continues to be depressed, the brakes will be applied automatically to reduce the vehicle speed.( Brake control: See figure 3.)
• Figure 1: When the PKSB( Parking Support Brake) is not operating
A EV system output
B Braking force
C Time
EV system output restriction control begins operating( System determines that possibility of collision with detected object is high)
• Figure 3: When EV system output restriction control and brake control operates
