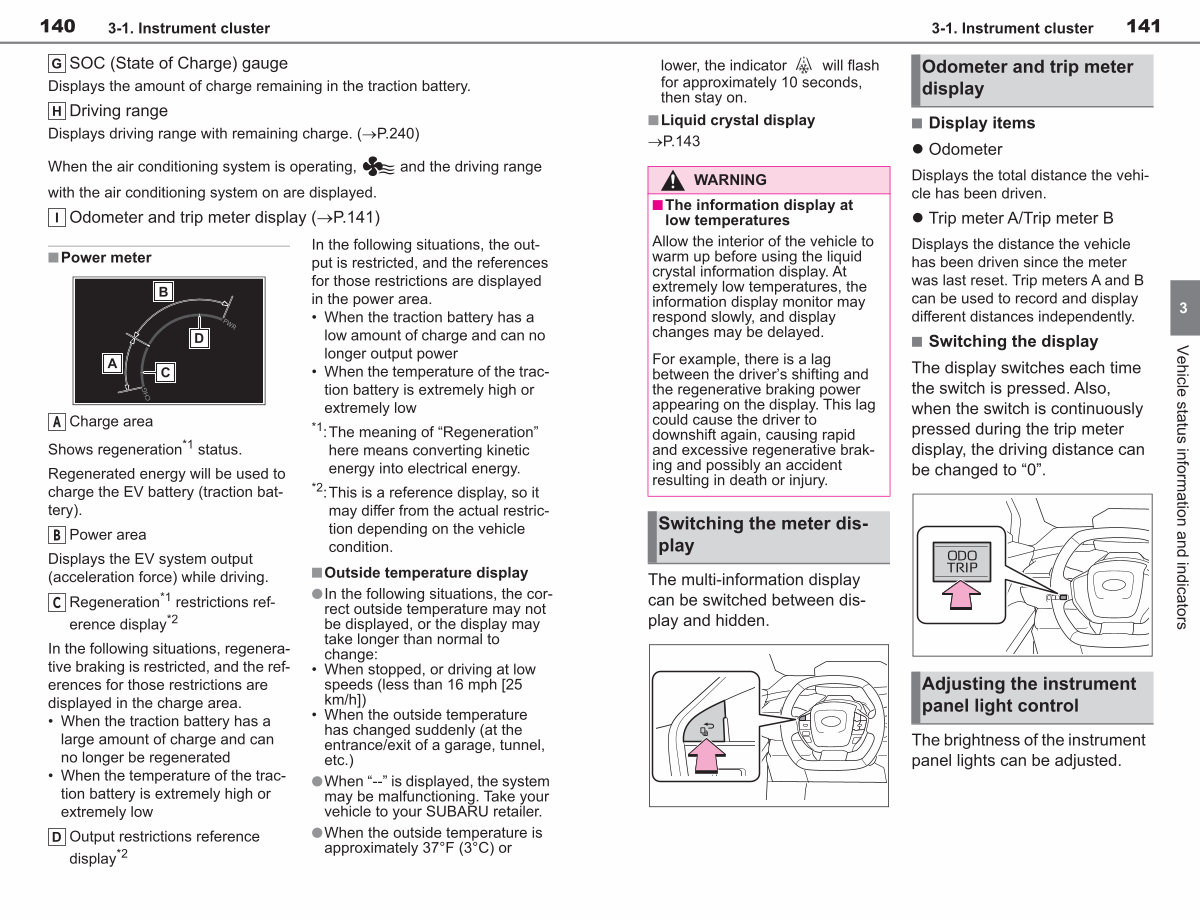

140 3-1. Instrument cluster
SOC( State of Charge) gauge Displays the amount of charge remaining in the traction battery.
Driving range Displays driving range with remaining charge.( �P. 240)
When the air conditioning system is operating, with the air conditioning system on are displayed.
Odometer and trip meter display( �P. 141) and the driving range n Power meter
A Charge area Shows regeneration * 1 status.
Regenerated energy will be used to charge the EV battery( traction battery).
B Power area
Displays the EV system output( acceleration force) while driving.
C Regeneration * 1 restrictions reference display * 2
In the following situations, regenerative braking is restricted, and the references for those restrictions are displayed in the charge area.
• When the traction battery has a large amount of charge and can no longer be regenerated
• When the temperature of the traction battery is extremely high or extremely low
Output restrictions reference display * 2
In the following situations, the output is restricted, and the references for those restrictions are displayed in the power area.
• When the traction battery has a low amount of charge and can no longer output power
• When the temperature of the traction battery is extremely high or extremely low
* 1: The meaning of“ Regeneration”
here means converting kinetic energy into electrical energy. * 2: This is a reference display, so it
may differ from the actual restriction depending on the vehicle condition.
nOutside temperature display
lIn the following situations, the correct outside temperature may not be displayed, or the display may
take longer than normal to change:
• When stopped, or driving at low
speeds( less than 16 mph [ 25
km / h ])
• When the outside temperature
has changed suddenly( at the entrance / exit of a garage, tunnel, etc.)
lWhen“--” is displayed, the system may be malfunctioning. Take your vehicle to your SUBARU retailer.
lWhen the outside temperature is approximately 37 ° F( 3 ° C) or
