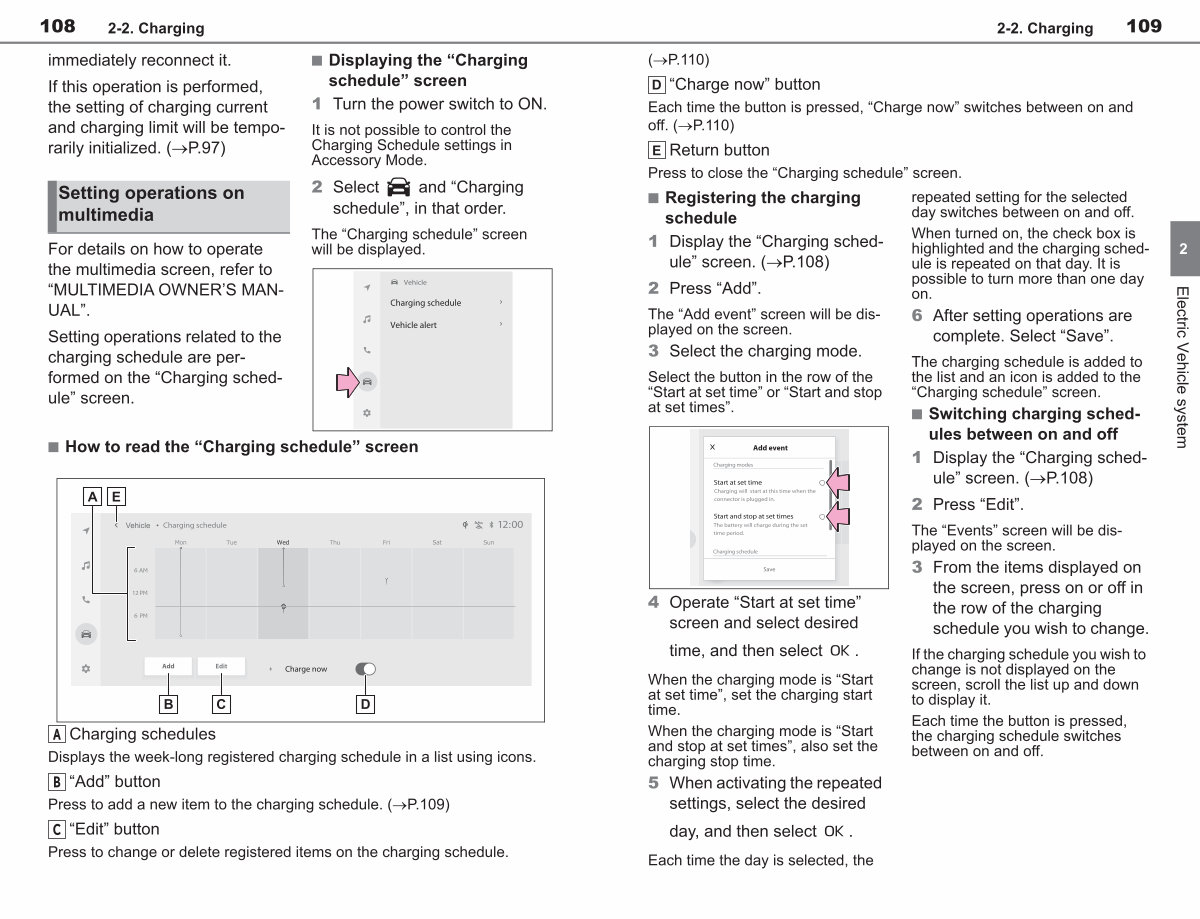

2-2. Charging
109
( �P. 110)“ Charge now” button
Each time the button is pressed,“ Charge now” switches between on and off.( �P. 110)
Return button Press to close the“ Charging schedule” screen.
n Registering the charging schedule
1 Display the“ Charging schedule” screen.( �P. 108)
2 Press“ Add”.
The“ Add event” screen will be displayed on the screen.
3 Select the charging mode.
Select the button in the row of the
“ Start at set time” or“ Start and stop at set times”.
4 Operate“ Start at set time” screen and select desired
time, and then select.
When the charging mode is“ Start
at set time”, set the charging start time.
When the charging mode is“ Start and stop at set times”, also set the
charging stop time.
5 When activating the repeated settings, select the desired
day, and then select. repeated setting for the selected day switches between on and off.
When turned on, the check box is highlighted and the charging schedule is repeated on that day. It is
possible to turn more than one day on.
6 After setting operations are complete. Select“ Save”.
The charging schedule is added to the list and an icon is added to the“ Charging schedule” screen.
n Switching charging schedules between on and off 1 Display the“ Charging schedule” screen.( �P. 108)
2 Press“ Edit”.
The“ Events” screen will be displayed on the screen.
3 From the items displayed on the screen, press on or off in the row of the charging schedule you wish to change.
If the charging schedule you wish to change is not displayed on the
screen, scroll the list up and down to display it.
Each time the button is pressed, the charging schedule switches
between on and off.
2
Electric Vehicle system
Each time the day is selected, the
