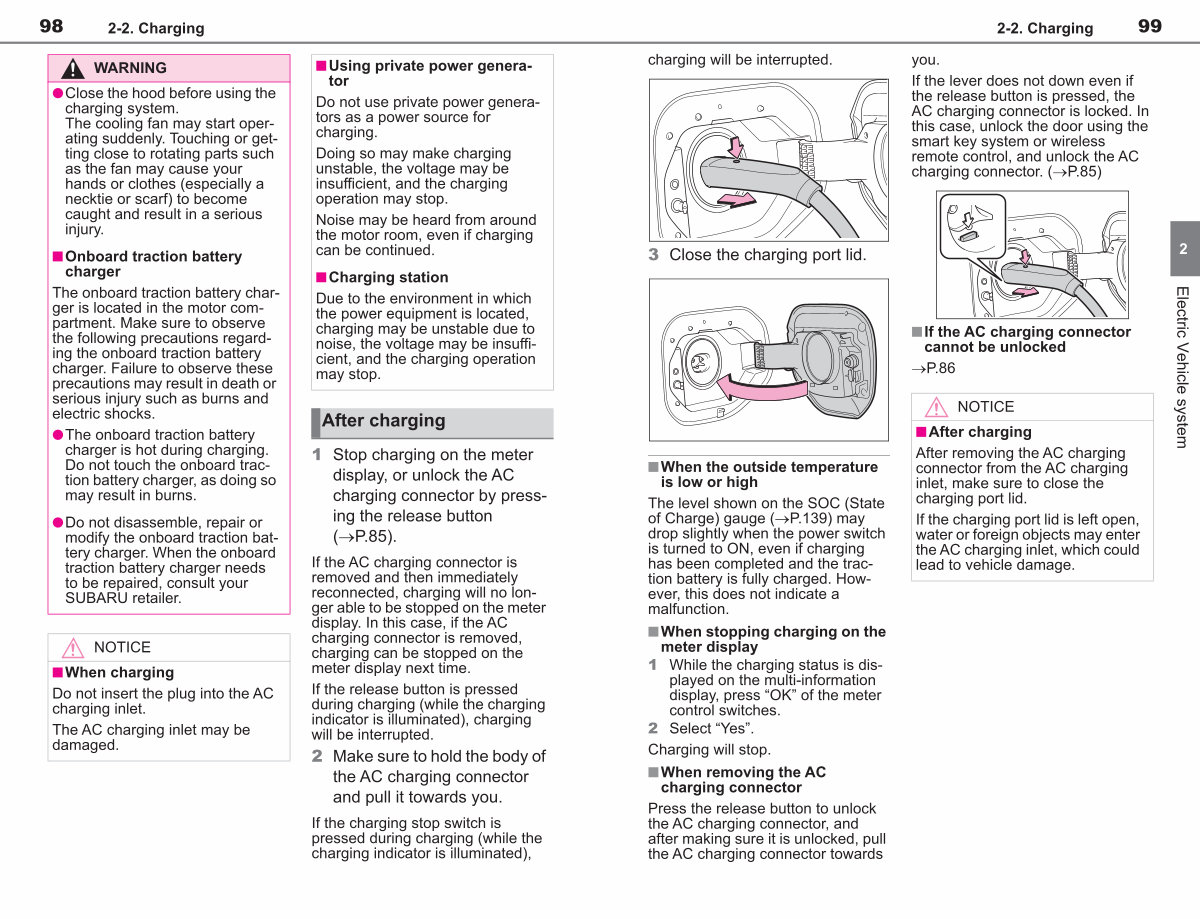

98 2-2. Charging
WARNING
lClose the hood before using the charging system. The cooling fan may start operating suddenly. Touching or getting close to rotating parts such as the fan may cause your hands or clothes( especially a
necktie or scarf) to become caught and result in a serious injury.
n Onboard traction battery charger
The onboard traction battery charger is located in the motor compartment. Make sure to observe the following precautions regarding the onboard traction battery charger. Failure to observe these precautions may result in death or serious injury such as burns and electric shocks.
lThe onboard traction battery charger is hot during charging. Do not touch the onboard traction battery charger, as doing so may result in burns.
lDo not disassemble, repair or modify the onboard traction battery charger. When the onboard
traction battery charger needs to be repaired, consult your SUBARU retailer.
NOTICE n When charging
Do not insert the plug into the AC charging inlet.
The AC charging inlet may be damaged. n Using private power generator
Do not use private power generators as a power source for charging.
Doing so may make charging unstable, the voltage may be
insufficient, and the charging operation may stop.
Noise may be heard from around the motor room, even if charging
can be continued.
n Charging station
Due to the environment in which the power equipment is located, charging may be unstable due to noise, the voltage may be insufficient, and the charging operation may stop.
After charging
1 Stop charging on the meter display, or unlock the AC charging connector by pressing the release button( �P. 85).
If the AC charging connector is removed and then immediately
reconnected, charging will no longer able to be stopped on the meter display. In this case, if the AC
charging connector is removed, charging can be stopped on the meter display next time.
If the release button is pressed during charging( while the charging indicator is illuminated), charging will be interrupted.
2 Make sure to hold the body of the AC charging connector and pull it towards you.
If the charging stop switch is
pressed during charging( while the charging indicator is illuminated),
