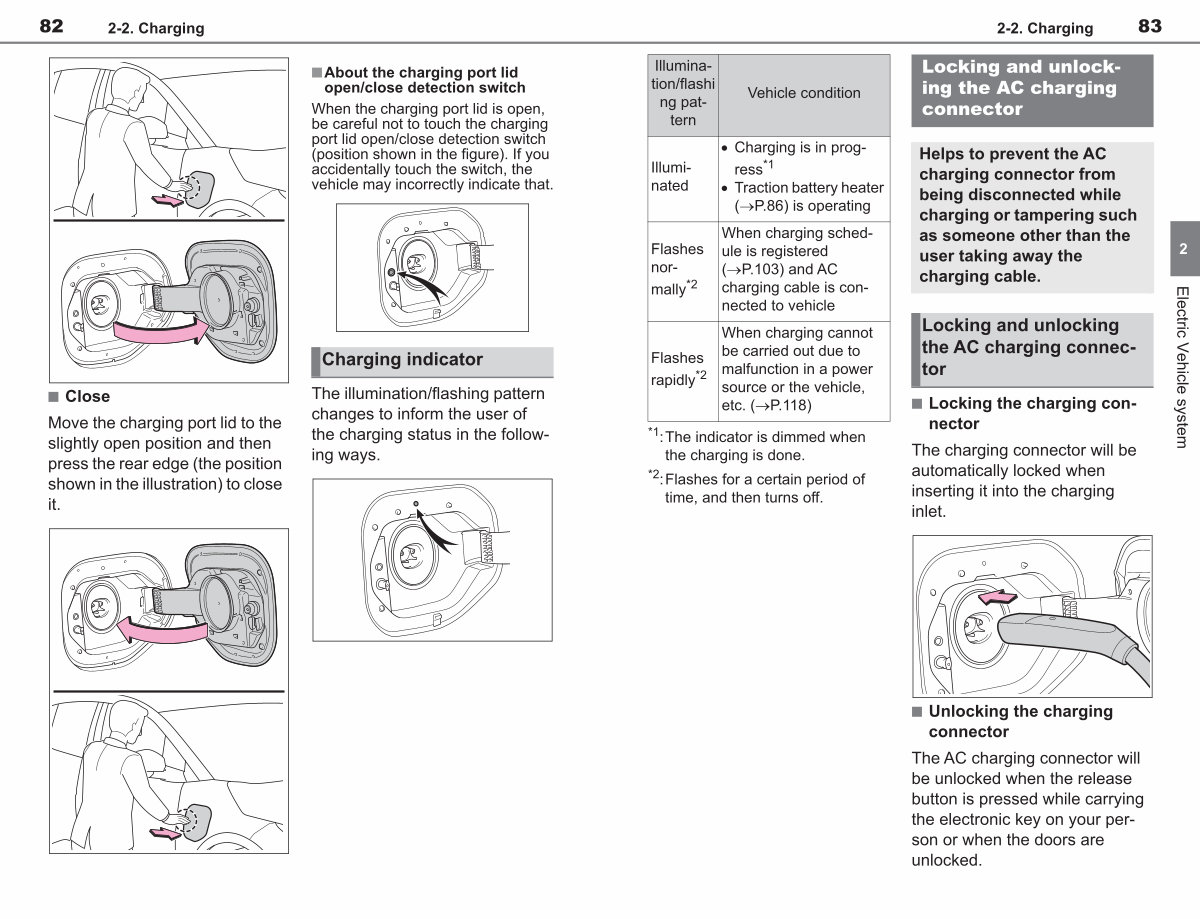

2-2. Charging
83
Illumination / flashi ng pattern
Illuminated
Flashes normally * 2
Flashes rapidly * 2
Vehicle condition
� Charging is in progress * 1
� Traction battery heater( �P. 86) is operating
When charging schedule is registered( �P. 103) and AC charging cable is connected to vehicle
When charging cannot be carried out due to malfunction in a power source or the vehicle, etc.( �P. 118)
* 1: The indicator is dimmed when
the charging is done.
* 2: Flashes for a certain period of
time, and then turns off.
Locking and unlocking the AC charging connector
Helps to prevent the AC charging connector from being disconnected while charging or tampering such as someone other than the user taking away the charging cable.
Locking and unlocking the AC charging connector
n Locking the charging connector
The charging connector will be automatically locked when inserting it into the charging inlet.
2
Electric Vehicle system n Unlocking the charging connector
The AC charging connector will be unlocked when the release button is pressed while carrying the electronic key on your person or when the doors are unlocked.
