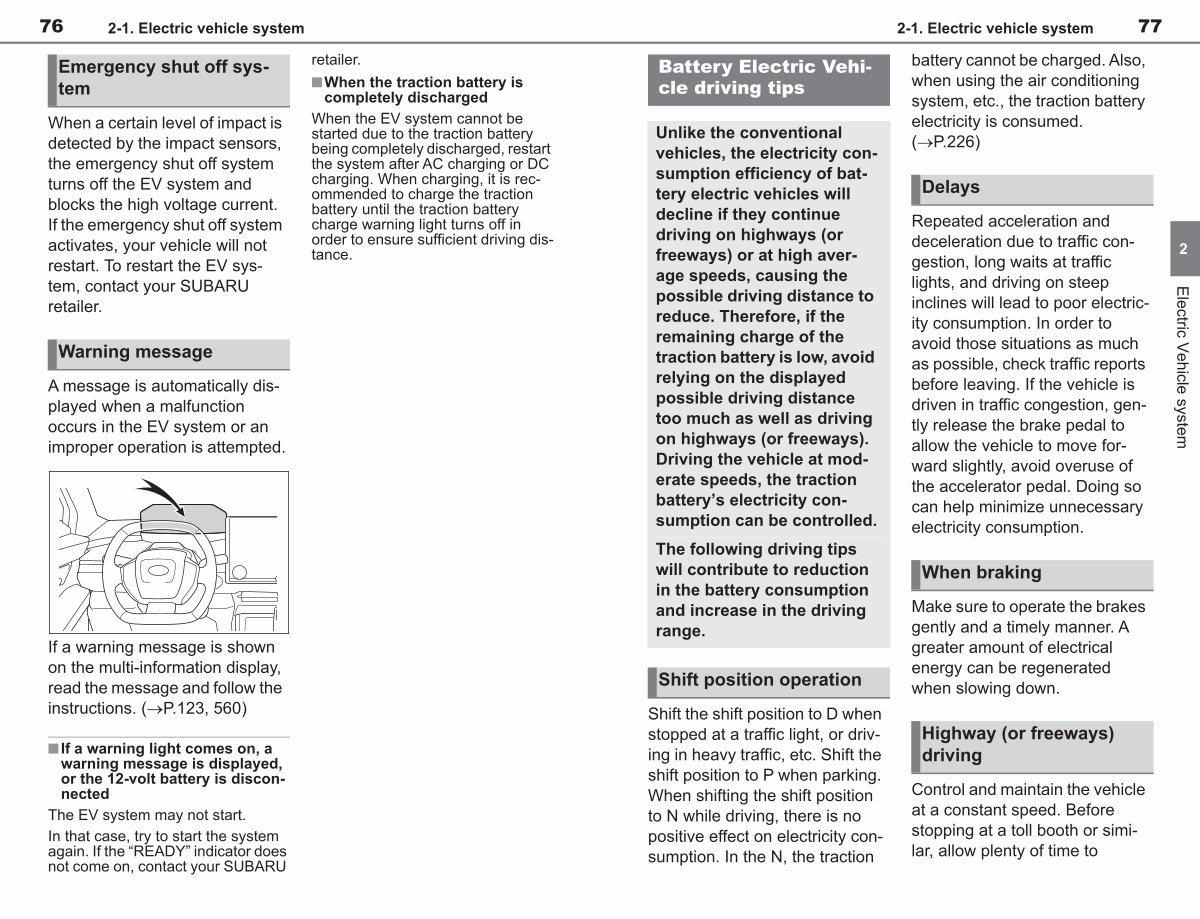

76 2-1. Electric vehicle system
Emergency shut off system
When a certain level of impact is detected by the impact sensors, the emergency shut off system turns off the EV system and blocks the high voltage current. If the emergency shut off system activates, your vehicle will not restart. To restart the EV system, contact your SUBARU retailer. retailer.
nWhen the traction battery is completely discharged
When the EV system cannot be started due to the traction battery being completely discharged, restart the system after AC charging or DC
charging. When charging, it is recommended to charge the traction
battery until the traction battery
charge warning light turns off in order to ensure sufficient driving distance.
Warning message
A message is automatically displayed when a malfunction occurs in the EV system or an improper operation is attempted.
If a warning message is shown on the multi-information display, read the message and follow the instructions.( �P. 123, 560)
n If a warning light comes on, a warning message is displayed, or the 12-volt battery is disconnected
The EV system may not start.
In that case, try to start the system again. If the“ READY” indicator does not come on, contact your SUBARU
