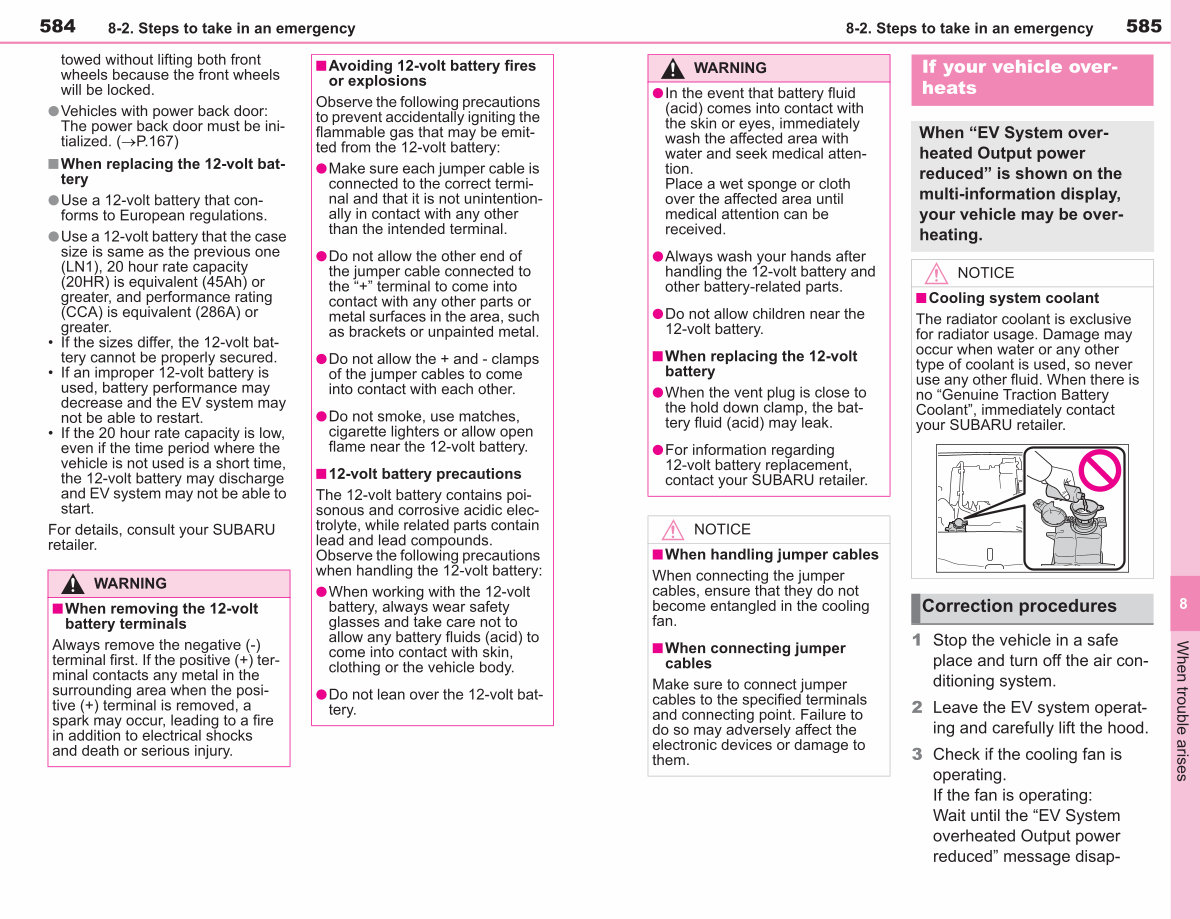

584 8-2. Steps to take in an emergency
towed without lifting both front wheels because the front wheels will be locked.
lVehicles with power back door: The power back door must be initialized.( �P. 167)
n When replacing the 12-volt battery
lUse a 12-volt battery that conforms to European regulations.
lUse a 12-volt battery that the case
size is same as the previous one( LN1), 20 hour rate capacity
( 20HR) is equivalent( 45Ah) or
greater, and performance rating( CCA) is equivalent( 286A) or
greater.
• If the sizes differ, the 12-volt battery cannot be properly secured.
• If an improper 12-volt battery is used, battery performance may decrease and the EV system may not be able to restart.
• If the 20 hour rate capacity is low, even if the time period where the vehicle is not used is a short time, the 12-volt battery may discharge and EV system may not be able to start.
For details, consult your SUBARU retailer.
WARNING
n When removing the 12-volt battery terminals
Always remove the negative(-) terminal first. If the positive(+) terminal contacts any metal in the
surrounding area when the positive(+) terminal is removed, a spark may occur, leading to a fire in addition to electrical shocks and death or serious injury. n Avoiding 12-volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable gas that may be emitted from the 12-volt battery:
lMake sure each jumper cable is
connected to the correct terminal and that it is not unintentionally in contact with any other than the intended terminal.
lDo not allow the other end of the jumper cable connected to
the“+” terminal to come into
contact with any other parts or metal surfaces in the area, such
as brackets or unpainted metal.
lDo not allow the + and- clamps
of the jumper cables to come into contact with each other.
lDo not smoke, use matches, cigarette lighters or allow open flame near the 12-volt battery.
n 12-volt battery precautions
The 12-volt battery contains poisonous and corrosive acidic electrolyte, while related parts contain
lead and lead compounds. Observe the following precautions when handling the 12-volt battery:
lWhen working with the 12-volt battery, always wear safety
glasses and take care not to
allow any battery fluids( acid) to come into contact with skin,
clothing or the vehicle body.
lDo not lean over the 12-volt battery.
