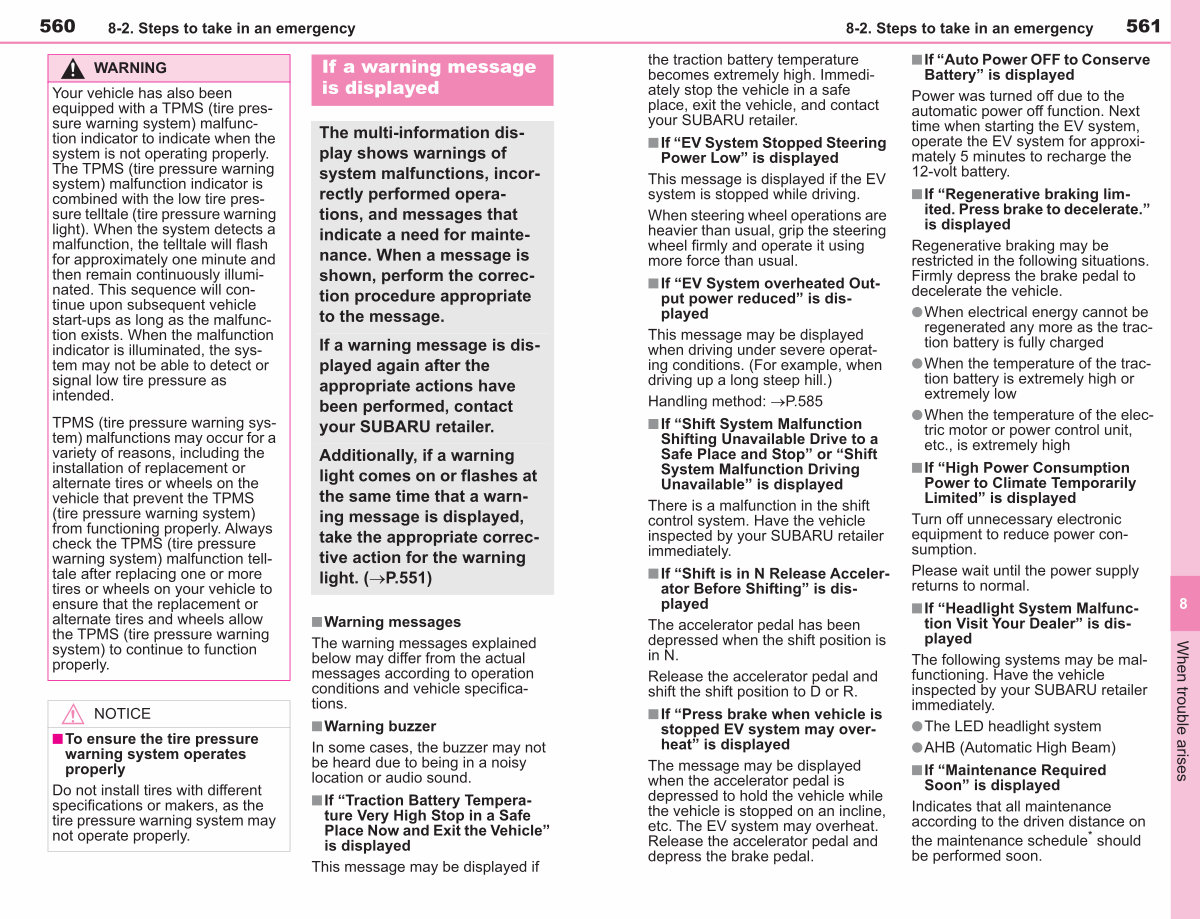

560 8-2. Steps to take in an emergency
WARNING
Your vehicle has also been equipped with a TPMS( tire pressure warning system) malfunction indicator to indicate when the
system is not operating properly. The TPMS( tire pressure warning system) malfunction indicator is
combined with the low tire pressure telltale( tire pressure warning
light). When the system detects a malfunction, the telltale will flash
for approximately one minute and
then remain continuously illuminated. This sequence will continue upon subsequent vehicle start-ups as long as the malfunction exists. When the malfunction indicator is illuminated, the system may not be able to detect or signal low tire pressure as intended.
TPMS( tire pressure warning system) malfunctions may occur for a variety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS( tire pressure warning system) from functioning properly. Always check the TPMS( tire pressure
warning system) malfunction telltale after replacing one or more tires or wheels on your vehicle to
ensure that the replacement or alternate tires and wheels allow the TPMS( tire pressure warning
system) to continue to function properly.
NOTICE
n To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire pressure warning system may
not operate properly.
If a warning message is displayed
The multi-information display shows warnings of system malfunctions, incorrectly performed operations, and messages that indicate a need for maintenance. When a message is shown, perform the correction procedure appropriate to the message.
If a warning message is displayed again after the appropriate actions have been performed, contact your SUBARU retailer.
Additionally, if a warning light comes on or flashes at the same time that a warning message is displayed, take the appropriate corrective action for the warning light.( �P. 551)
nWarning messages
The warning messages explained below may differ from the actual
messages according to operation
conditions and vehicle specifications.
nWarning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or audio sound.
nIf“ Traction Battery Temperature Very High Stop in a Safe Place Now and Exit the Vehicle” is displayed
This message may be displayed if
