7-3. Do-it-yourself maintenance
529

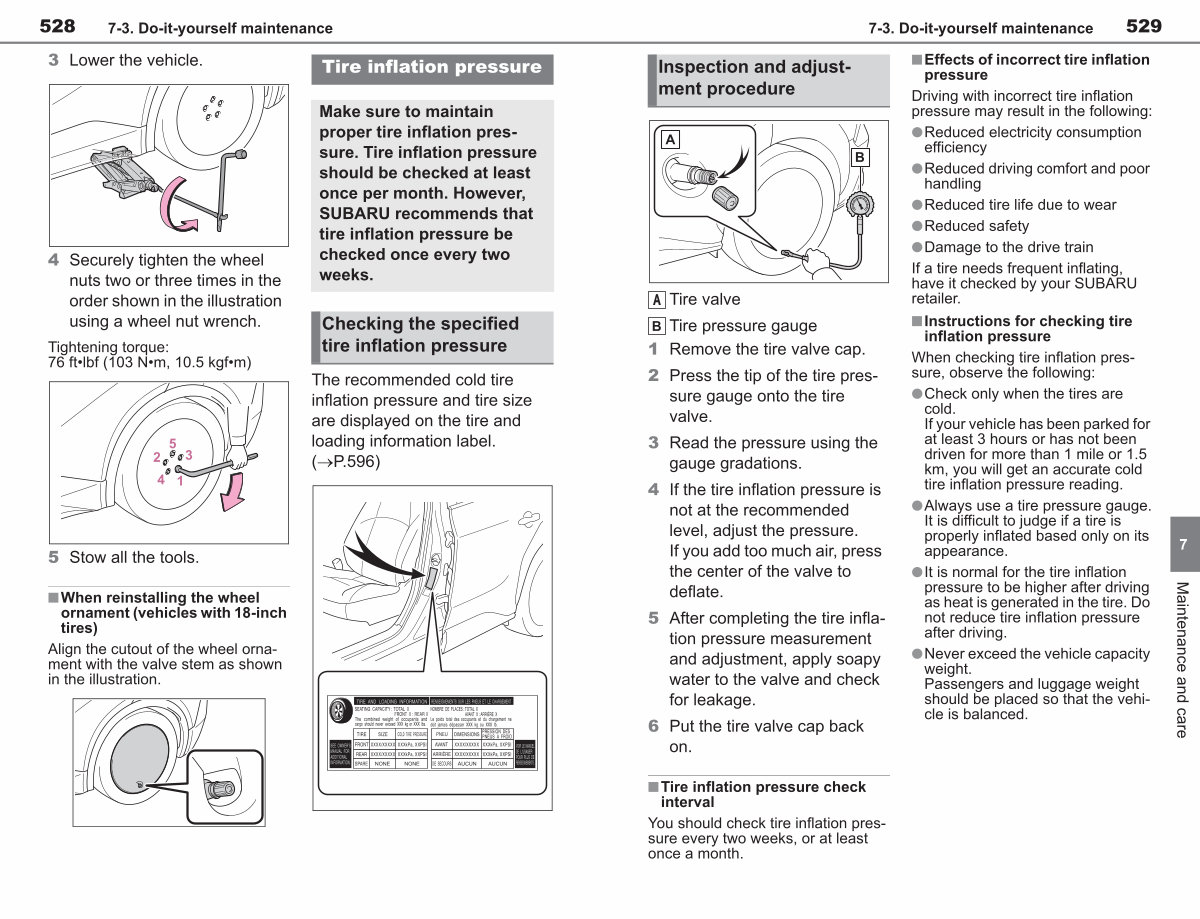

Inspection and adjustment procedure
A Tire valve Tire pressure gauge
1 Remove the tire valve cap.
2 Press the tip of the tire pressure gauge onto the tire valve.
3 Read the pressure using the gauge gradations.
4 If the tire inflation pressure is not at the recommended level, adjust the pressure. If you add too much air, press the center of the valve to deflate.
5 After completing the tire inflation pressure measurement and adjustment, apply soapy water to the valve and check for leakage.
6 Put the tire valve cap back on. nEffects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
lReduced electricity consumption efficiency
lReduced driving comfort and poor handling
lReduced tire life due to wear lReduced safety lDamage to the drive train
If a tire needs frequent inflating,
have it checked by your SUBARU retailer.
nInstructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
lCheck only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been
driven for more than 1 mile or 1.5 km, you will get an accurate cold tire inflation pressure reading.
lAlways use a tire pressure gauge. It is difficult to judge if a tire is
properly inflated based only on its appearance.
lIt is normal for the tire inflation
pressure to be higher after driving as heat is generated in the tire. Do
not reduce tire inflation pressure after driving.
lNever exceed the vehicle capacity
weight. Passengers and luggage weight
should be placed so that the vehicle is balanced.
7
Maintenance and care n Tire inflation pressure check interval
You should check tire inflation pressure every two weeks, or at least once a month.
