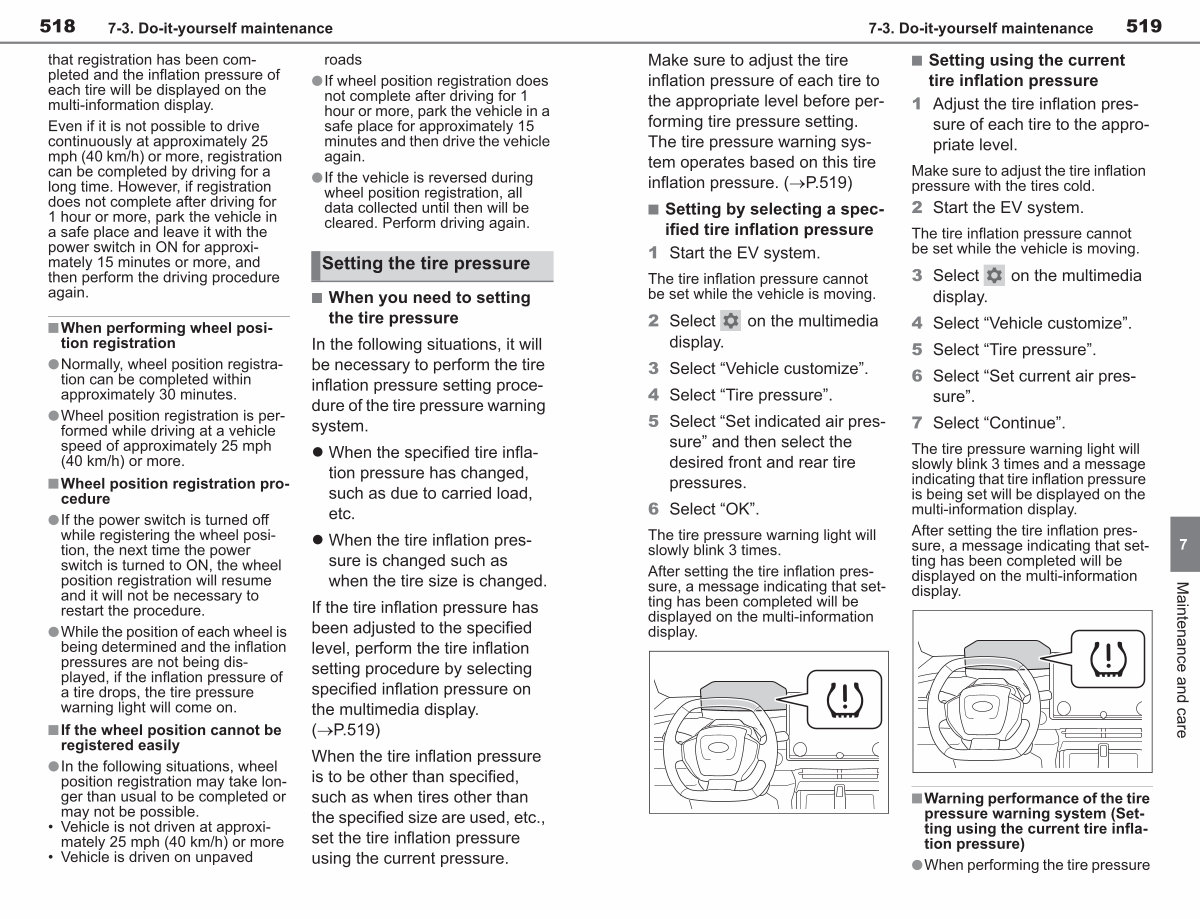

7-3. Do-it-yourself maintenance
519
Make sure to adjust the tire inflation pressure of each tire to the appropriate level before performing tire pressure setting. The tire pressure warning system operates based on this tire inflation pressure.( �P. 519)
n Setting by selecting a specified tire inflation pressure
1 Start the EV system.
The tire inflation pressure cannot be set while the vehicle is moving.
2 Select on the multimedia display.
3 Select“ Vehicle customize”. 4 Select“ Tire pressure”.
5 Select“ Set indicated air pressure” and then select the desired front and rear tire pressures.
6 Select“ OK”.
The tire pressure warning light will slowly blink 3 times.
After setting the tire inflation pressure, a message indicating that setting has been completed will be displayed on the multi-information display. n Setting using the current tire inflation pressure
1 Adjust the tire inflation pressure of each tire to the appropriate level.
Make sure to adjust the tire inflation pressure with the tires cold.
2 Start the EV system.
The tire inflation pressure cannot be set while the vehicle is moving.
3 Select on the multimedia display.
4 Select“ Vehicle customize”. 5 Select“ Tire pressure”.
6 Select“ Set current air pressure”.
7 Select“ Continue”.
The tire pressure warning light will slowly blink 3 times and a message
indicating that tire inflation pressure
is being set will be displayed on the multi-information display.
After setting the tire inflation pressure, a message indicating that setting has been completed will be displayed on the multi-information display.
7
Maintenance and care nWarning performance of the tire pressure warning system( Setting using the current tire inflation pressure)
lWhen performing the tire pressure
