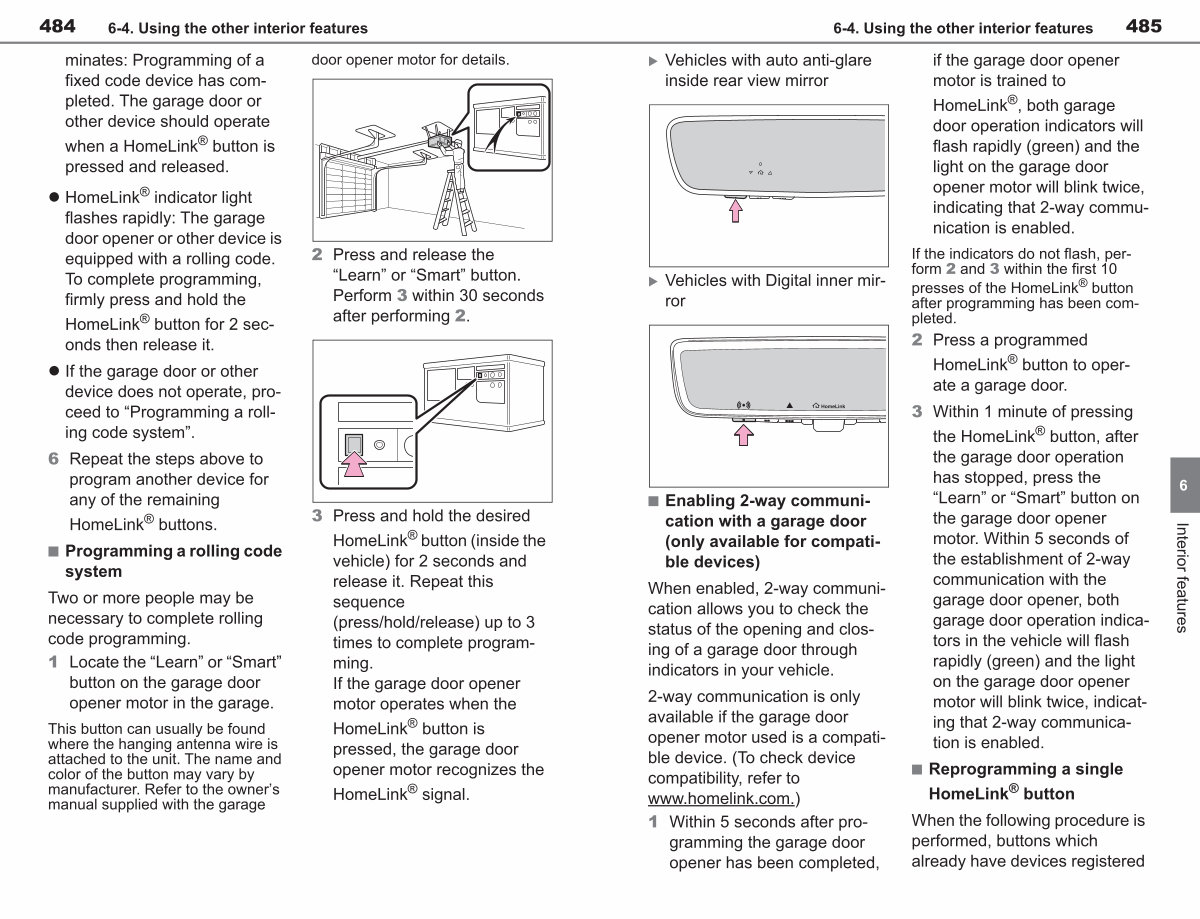

484 6-4. Using the other interior features
minates: Programming of a fixed code device has completed. The garage door or other device should operate
when a HomeLink ® button is pressed and released.
• HomeLink ® indicator light flashes rapidly: The garage door opener or other device is equipped with a rolling code. To complete programming, firmly press and hold the
HomeLink ® button for 2 seconds then release it.
• If the garage door or other device does not operate, proceed to“ Programming a rolling code system”.
6 Repeat the steps above to program another device for any of the remaining
HomeLink ® buttons.
n Programming a rolling code system
Two or more people may be necessary to complete rolling code programming. 1 Locate the“ Learn” or“ Smart” button on the garage door opener motor in the garage.
This button can usually be found where the hanging antenna wire is attached to the unit. The name and color of the button may vary by manufacturer. Refer to the owner’ s manual supplied with the garage door opener motor for details.
2 Press and release the“ Learn” or“ Smart” button. Perform 3 within 30 seconds after performing 2.
3 Press and hold the desired
HomeLink ® button( inside the vehicle) for 2 seconds and release it. Repeat this sequence( press / hold / release) up to 3 times to complete programming. If the garage door opener motor operates when the
HomeLink ® button is pressed, the garage door opener motor recognizes the
HomeLink ® signal.
