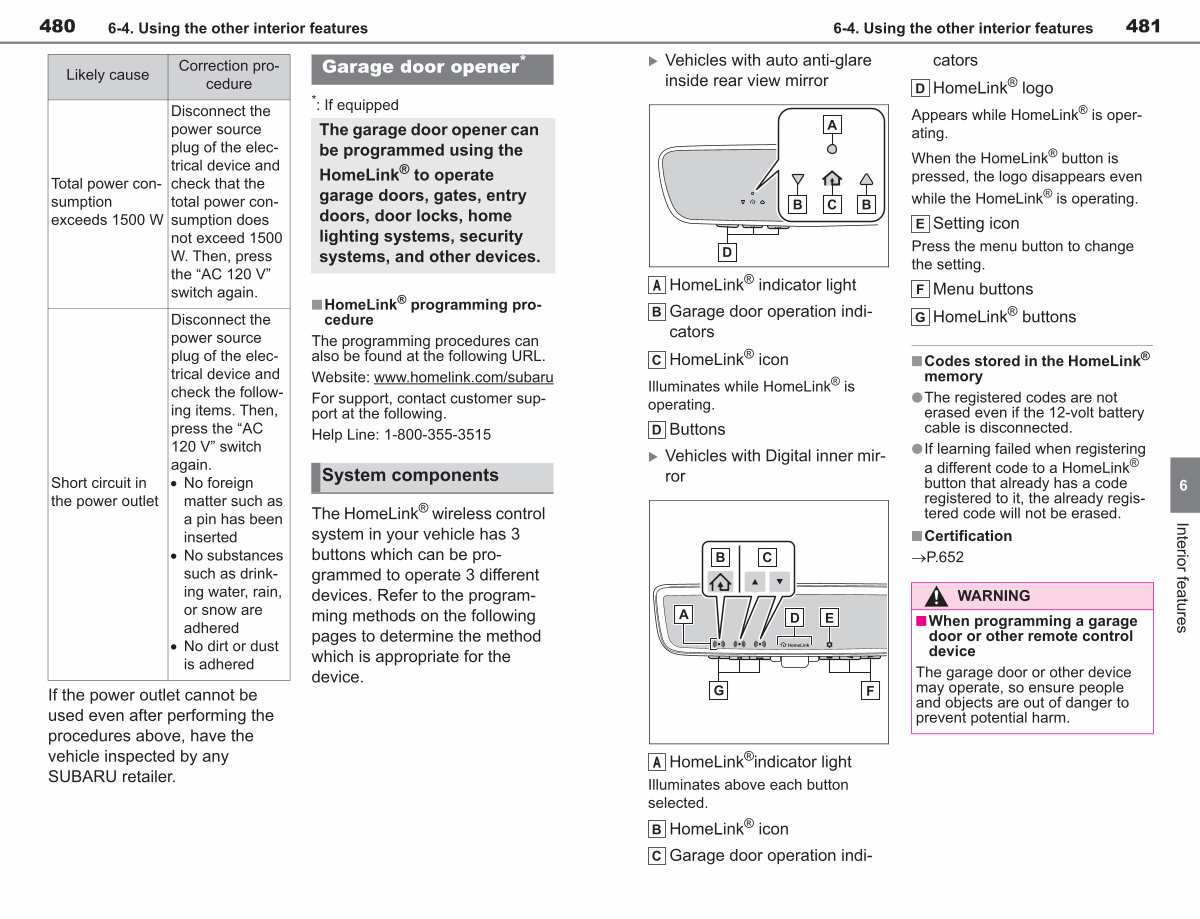

6-4. Using the other interior features
481
� Vehicles with auto anti-glare inside rear view mirror
Illuminates above each button selected.
HomeLink ® icon Garage door operation indicators HomeLink ® logo
A HomeLink ® indicator light
Garage door operation indicators
HomeLink ® icon
Illuminates while HomeLink ® is operating.
Buttons
� Vehicles with Digital inner mirror
Appears while HomeLink ® is operating.
When the HomeLink ® button is pressed, the logo disappears even
while the HomeLink ® is operating. Setting icon
Press the menu button to change the setting.
Menu buttons HomeLink ® buttons
nCodes stored in the HomeLink ® memory
lThe registered codes are not erased even if the 12-volt battery cable is disconnected.
lIf learning failed when registering
a different code to a HomeLink ® button that already has a code
registered to it, the already registered code will not be erased.
nCertification �P. 652
WARNING
n When programming a garage door or other remote control
device
The garage door or other device may operate, so ensure people and objects are out of danger to prevent potential harm.
6
Interior features
A HomeLink ® indicator light
