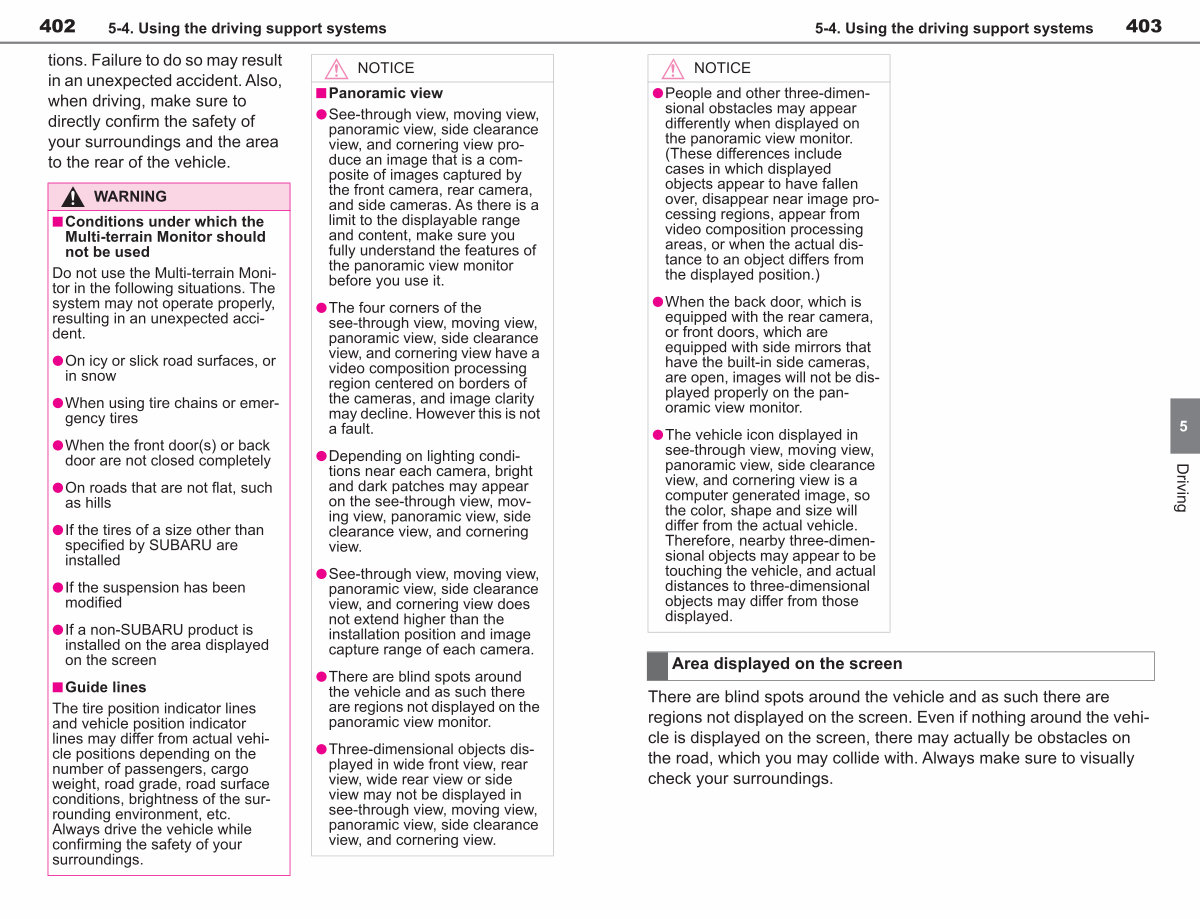

402 5-4. Using the driving support systems
tions. Failure to do so may result in an unexpected accident. Also, when driving, make sure to directly confirm the safety of your surroundings and the area to the rear of the vehicle.
WARNING
n Conditions under which the Multi-terrain Monitor should not be used
Do not use the Multi-terrain Monitor in the following situations. The system may not operate properly,
resulting in an unexpected accident.
lOn icy or slick road surfaces, or in snow
lWhen using tire chains or emergency tires
lWhen the front door( s) or back door are not closed completely
lOn roads that are not flat, such as hills
lIf the tires of a size other than specified by SUBARU are installed
lIf the suspension has been modified
lIf a non-SUBARU product is installed on the area displayed on the screen
n Guide lines
The tire position indicator lines and vehicle position indicator lines may differ from actual vehicle positions depending on the number of passengers, cargo weight, road grade, road surface conditions, brightness of the surrounding environment, etc. Always drive the vehicle while confirming the safety of your surroundings.
NOTICE n Panoramic view lSee-through view, moving view, panoramic view, side clearance
view, and cornering view produce an image that is a composite of images captured by
the front camera, rear camera, and side cameras. As there is a limit to the displayable range
and content, make sure you fully understand the features of
the panoramic view monitor before you use it.
lThe four corners of the see-through view, moving view, panoramic view, side clearance view, and cornering view have a video composition processing region centered on borders of the cameras, and image clarity may decline. However this is not a fault.
lDepending on lighting conditions near each camera, bright and dark patches may appear on the see-through view, moving view, panoramic view, side clearance view, and cornering view.
lSee-through view, moving view, panoramic view, side clearance
view, and cornering view does not extend higher than the installation position and image
capture range of each camera.
lThere are blind spots around
the vehicle and as such there are regions not displayed on the
panoramic view monitor.
l Three-dimensional objects displayed in wide front view, rear view, wide rear view or side
view may not be displayed in see-through view, moving view, panoramic view, side clearance view, and cornering view.
