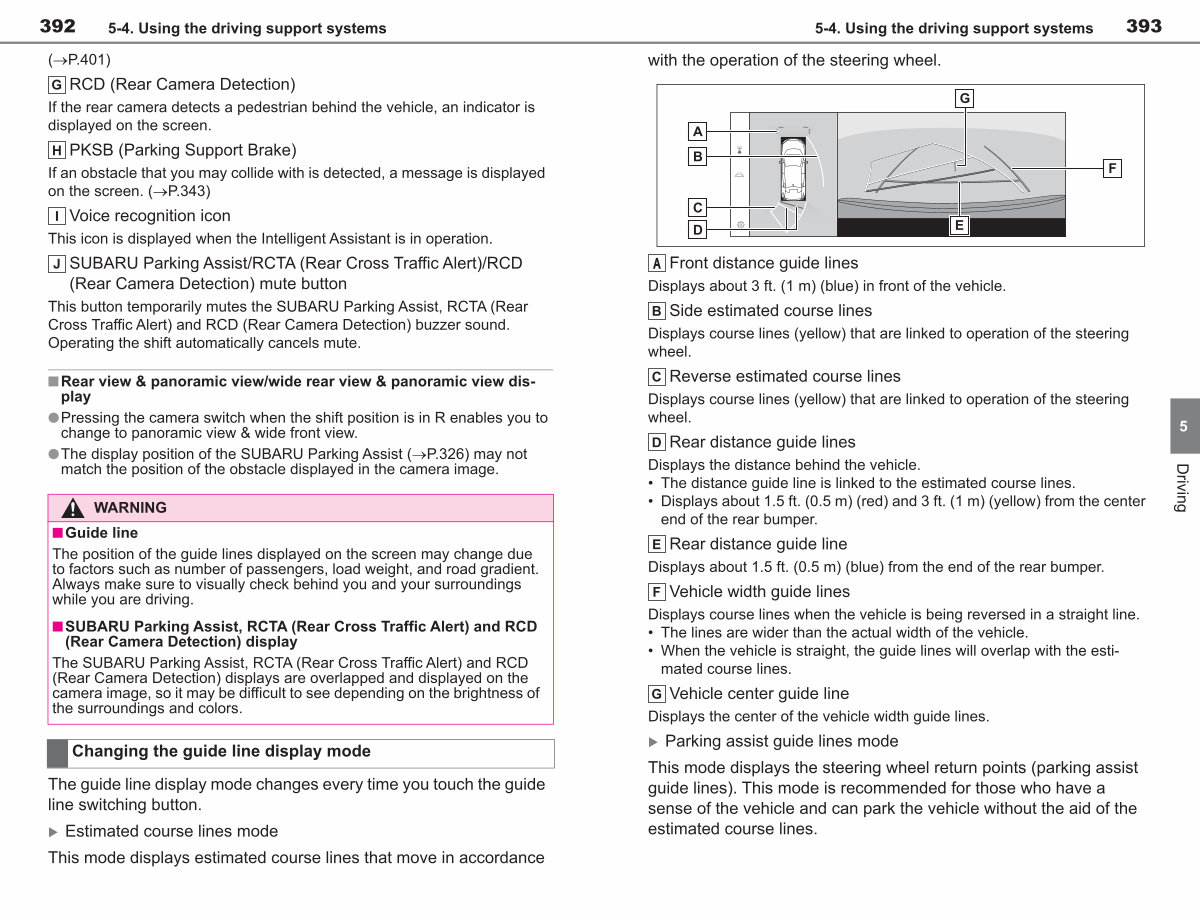

5-4. Using the driving support systems
393 with the operation of the steering wheel.
A Front distance guide lines Displays about 3 ft.( 1 m)( blue) in front of the vehicle.
Side estimated course lines
Displays course lines( yellow) that are linked to operation of the steering wheel.
Reverse estimated course lines
Displays course lines( yellow) that are linked to operation of the steering wheel.
Rear distance guide lines
Displays the distance behind the vehicle.
• The distance guide line is linked to the estimated course lines.
• Displays about 1.5 ft.( 0.5 m)( red) and 3 ft.( 1 m)( yellow) from the center end of the rear bumper.
Rear distance guide line Displays about 1.5 ft.( 0.5 m)( blue) from the end of the rear bumper.
Vehicle width guide lines
Displays course lines when the vehicle is being reversed in a straight line.
• The lines are wider than the actual width of the vehicle.
• When the vehicle is straight, the guide lines will overlap with the estimated course lines.
Vehicle center guide line Displays the center of the vehicle width guide lines.
� Parking assist guide lines mode
This mode displays the steering wheel return points( parking assist guide lines). This mode is recommended for those who have a sense of the vehicle and can park the vehicle without the aid of the estimated course lines.
5
Driving
