5-4. Using the driving support systems
385

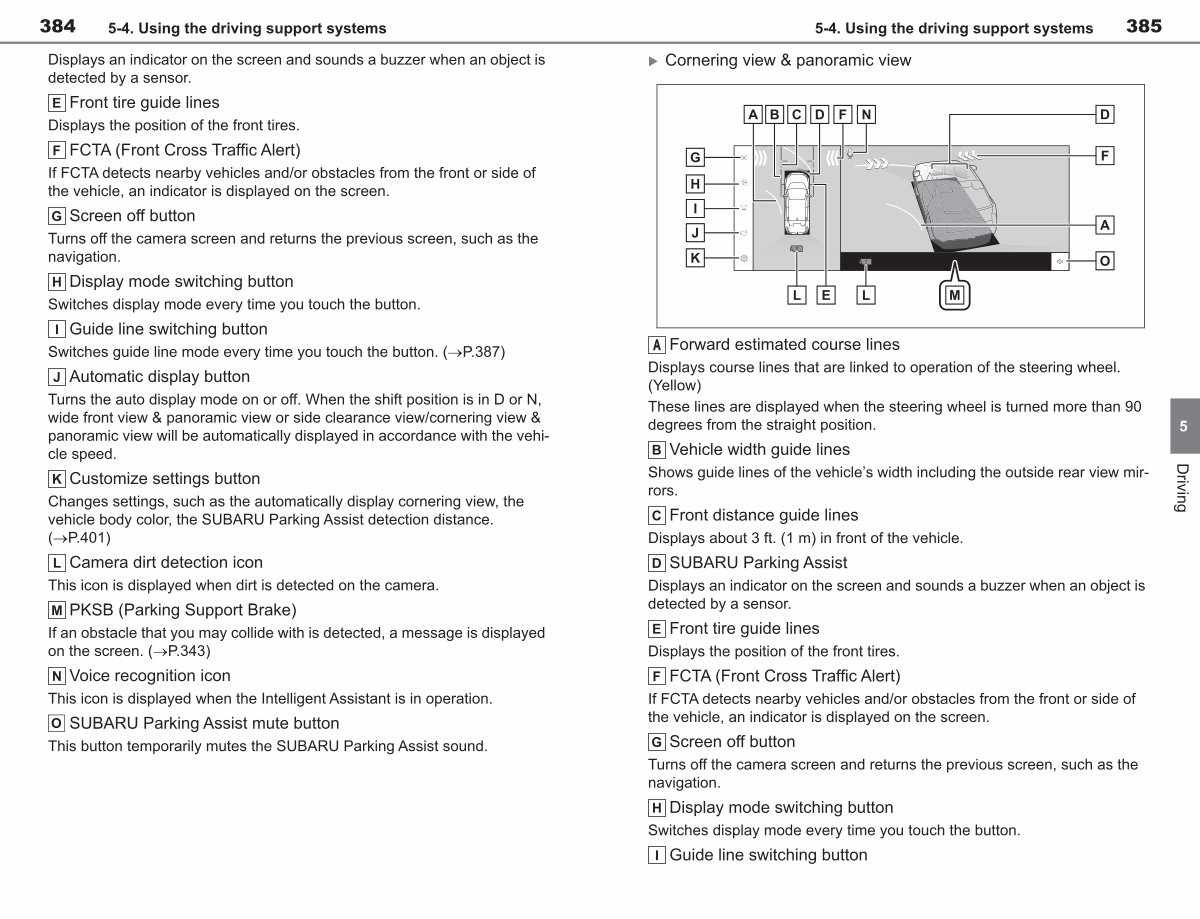

� Cornering view & panoramic view
A Forward estimated course lines
Displays course lines that are linked to operation of the steering wheel.( Yellow) These lines are displayed when the steering wheel is turned more than 90 degrees from the straight position.
Vehicle width guide lines
Shows guide lines of the vehicle’ s width including the outside rear view mirrors.
Front distance guide lines Displays about 3 ft.( 1 m) in front of the vehicle.
SUBARU Parking Assist
Displays an indicator on the screen and sounds a buzzer when an object is detected by a sensor.
Front tire guide lines Displays the position of the front tires.
FCTA( Front Cross Traffic Alert)
If FCTA detects nearby vehicles and / or obstacles from the front or side of the vehicle, an indicator is displayed on the screen.
Screen off button
Turns off the camera screen and returns the previous screen, such as the navigation.
Display mode switching button Switches display mode every time you touch the button.
Guide line switching button
5
Driving
