5-4. Using the driving support systems
367

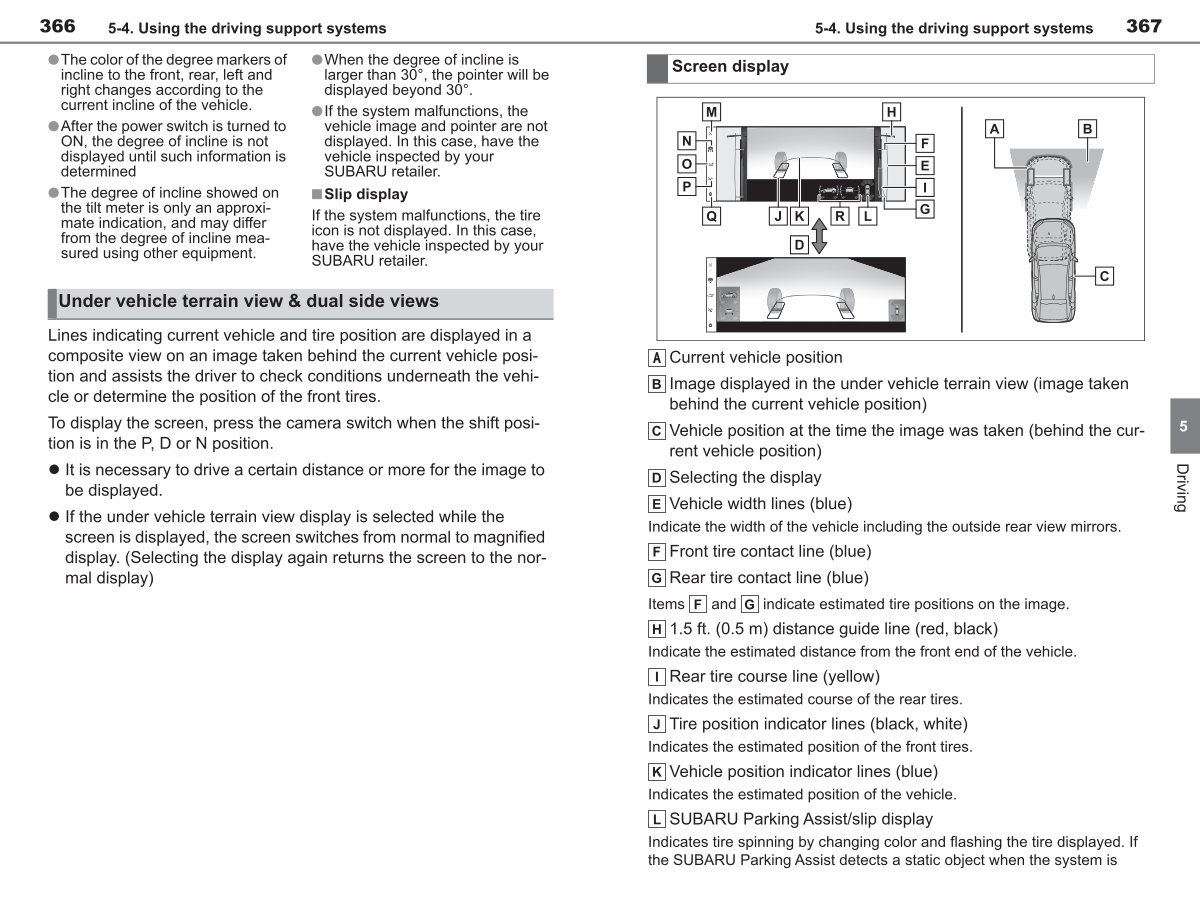

Screen display
A Current vehicle position
Image displayed in the under vehicle terrain view( image taken behind the current vehicle position)
Vehicle position at the time the image was taken( behind the current vehicle position)
Selecting the display Vehicle width lines( blue)
Indicate the width of the vehicle including the outside rear view mirrors.
Front tire contact line( blue) Rear tire contact line( blue)
Items and indicate estimated tire positions on the image. 1.5 ft.( 0.5 m) distance guide line( red, black)
Indicate the estimated distance from the front end of the vehicle.
Rear tire course line( yellow) Indicates the estimated course of the rear tires.
Tire position indicator lines( black, white) Indicates the estimated position of the front tires. Vehicle position indicator lines( blue) Indicates the estimated position of the vehicle. SUBARU Parking Assist / slip display
Indicates tire spinning by changing color and flashing the tire displayed. If the SUBARU Parking Assist detects a static object when the system is
