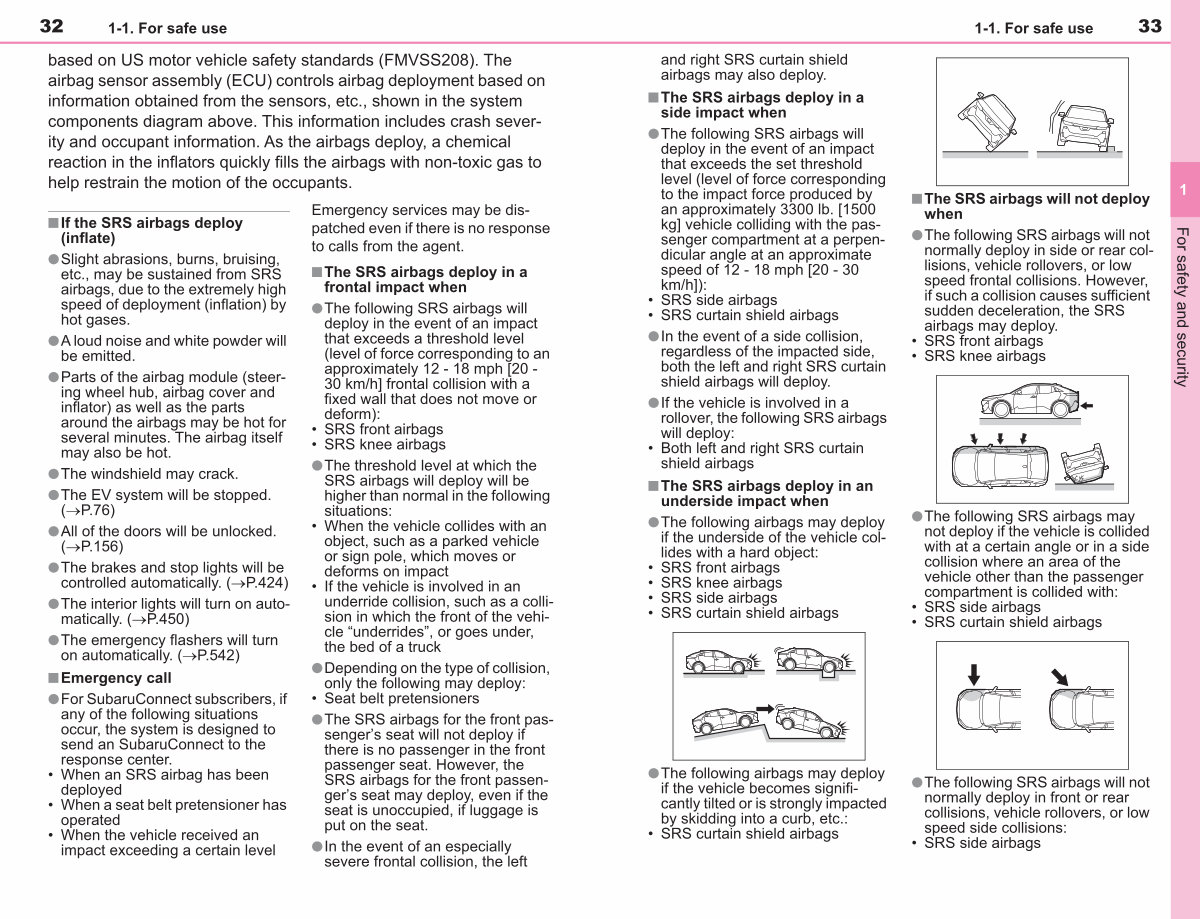

32 1-1. For safe use
based on US motor vehicle safety standards( FMVSS208). The airbag sensor assembly( ECU) controls airbag deployment based on information obtained from the sensors, etc., shown in the system components diagram above. This information includes crash severity and occupant information. As the airbags deploy, a chemical reaction in the inflators quickly fills the airbags with non-toxic gas to help restrain the motion of the occupants.
n If the SRS airbags deploy( inflate)
lSlight abrasions, burns, bruising,
etc., may be sustained from SRS airbags, due to the extremely high
speed of deployment( inflation) by hot gases.
lA loud noise and white powder will be emitted.
lParts of the airbag module( steering wheel hub, airbag cover and inflator) as well as the parts
around the airbags may be hot for several minutes. The airbag itself may also be hot.
lThe windshield may crack.
lThe EV system will be stopped.( �P. 76)
lAll of the doors will be unlocked.( �P. 156)
lThe brakes and stop lights will be controlled automatically.( �P. 424)
lThe interior lights will turn on automatically.( �P. 450)
lThe emergency flashers will turn on automatically.( �P. 542)
n Emergency call
lFor SubaruConnect subscribers, if any of the following situations occur, the system is designed to send an SubaruConnect to the response center.
• When an SRS airbag has been deployed
• When a seat belt pretensioner has
operated
• When the vehicle received an
impact exceeding a certain level
Emergency services may be dispatched even if there is no response to calls from the agent.
nThe SRS airbags deploy in a frontal impact when
lThe following SRS airbags will deploy in the event of an impact
that exceeds a threshold level
( level of force corresponding to an approximately 12- 18 mph [ 20-
30 km / h ] frontal collision with a fixed wall that does not move or deform):
• SRS front airbags
• SRS knee airbags
lThe threshold level at which the
SRS airbags will deploy will be higher than normal in the following
situations:
• When the vehicle collides with an object, such as a parked vehicle or sign pole, which moves or deforms on impact
• If the vehicle is involved in an
underride collision, such as a collision in which the front of the vehicle“ underrides”, or goes under,
the bed of a truck
lDepending on the type of collision, only the following may deploy:
• Seat belt pretensioners
lThe SRS airbags for the front passenger’ s seat will not deploy if there is no passenger in the front passenger seat. However, the SRS airbags for the front passenger’ s seat may deploy, even if the seat is unoccupied, if luggage is put on the seat.
lIn the event of an especially severe frontal collision, the left
