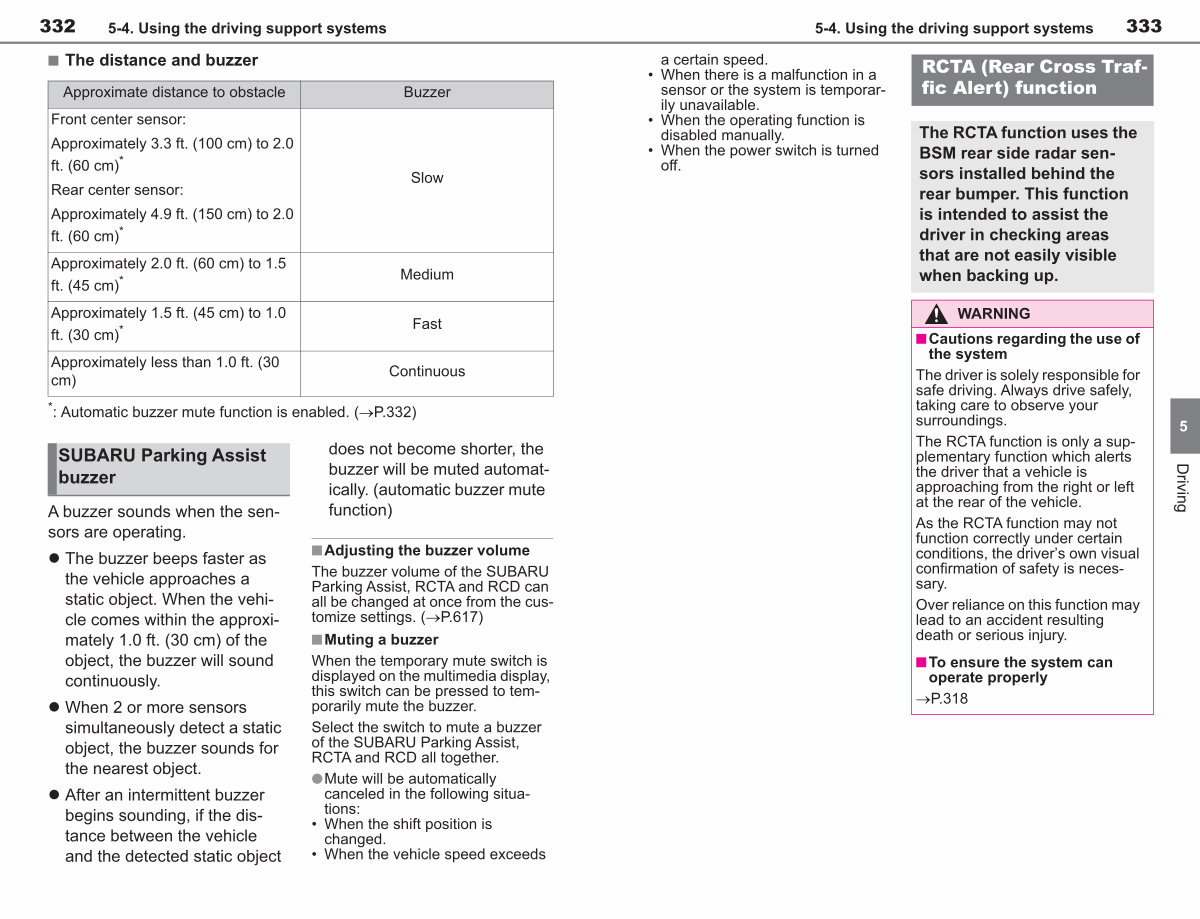

332 5-4. Using the driving support systems n The distance and buzzer Approximate distance to obstacle Front center sensor: Approximately 3.3 ft.( 100 cm) to 2.0 ft.( 60 cm) * Rear center sensor: Approximately 4.9 ft.( 150 cm) to 2.0 ft.( 60 cm) *
Approximately 2.0 ft.( 60 cm) to 1.5 ft.( 45 cm) *
Approximately 1.5 ft.( 45 cm) to 1.0 ft.( 30 cm) *
Approximately less than 1.0 ft.( 30 cm)
Buzzer
Slow
Medium
Fast
Continuous
*: Automatic buzzer mute function is enabled.( �P. 332)
SUBARU Parking Assist buzzer
A buzzer sounds when the sensors are operating.
• The buzzer beeps faster as the vehicle approaches a static object. When the vehicle comes within the approximately 1.0 ft.( 30 cm) of the object, the buzzer will sound continuously.
• When 2 or more sensors simultaneously detect a static object, the buzzer sounds for the nearest object.
• After an intermittent buzzer begins sounding, if the distance between the vehicle and the detected static object does not become shorter, the buzzer will be muted automatically.( automatic buzzer mute function)
nAdjusting the buzzer volume The buzzer volume of the SUBARU Parking Assist, RCTA and RCD can
all be changed at once from the customize settings.( �P. 617)
nMuting a buzzer
When the temporary mute switch is displayed on the multimedia display, this switch can be pressed to temporarily mute the buzzer.
Select the switch to mute a buzzer of the SUBARU Parking Assist, RCTA and RCD all together.
lMute will be automatically canceled in the following situations:
• When the shift position is
changed.
• When the vehicle speed exceeds
