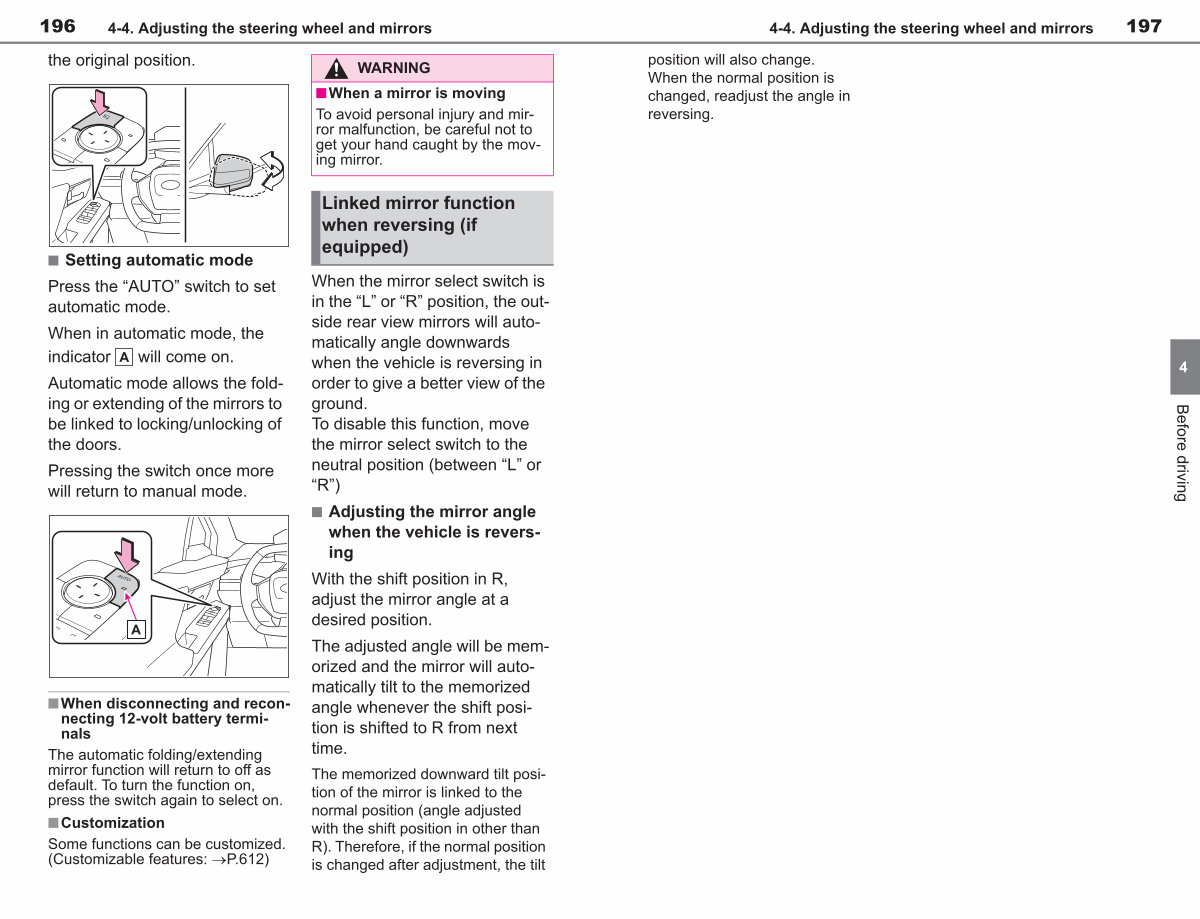

196 4-4. Adjusting the steering wheel and mirrors the original position.
n Setting automatic mode
Press the“ AUTO” switch to set automatic mode.
When in automatic mode, the indicator will come on.
Automatic mode allows the folding or extending of the mirrors to be linked to locking / unlocking of the doors.
Pressing the switch once more will return to manual mode.
n When disconnecting and reconnecting 12-volt battery terminals
The automatic folding / extending mirror function will return to off as default. To turn the function on, press the switch again to select on.
n Customization Some functions can be customized.( Customizable features: �P. 612)
WARNING n When a mirror is moving To avoid personal injury and mirror malfunction, be careful not to
get your hand caught by the moving mirror.
Linked mirror function when reversing( if equipped)
When the mirror select switch is in the“ L” or“ R” position, the outside rear view mirrors will automatically angle downwards when the vehicle is reversing in order to give a better view of the ground. To disable this function, move the mirror select switch to the neutral position( between“ L” or“ R”)
n Adjusting the mirror angle when the vehicle is reversing
With the shift position in R, adjust the mirror angle at a desired position.
The adjusted angle will be memorized and the mirror will automatically tilt to the memorized angle whenever the shift position is shifted to R from next time.
The memorized downward tilt position of the mirror is linked to the normal position( angle adjusted with the shift position in other than R). Therefore, if the normal position is changed after adjustment, the tilt
