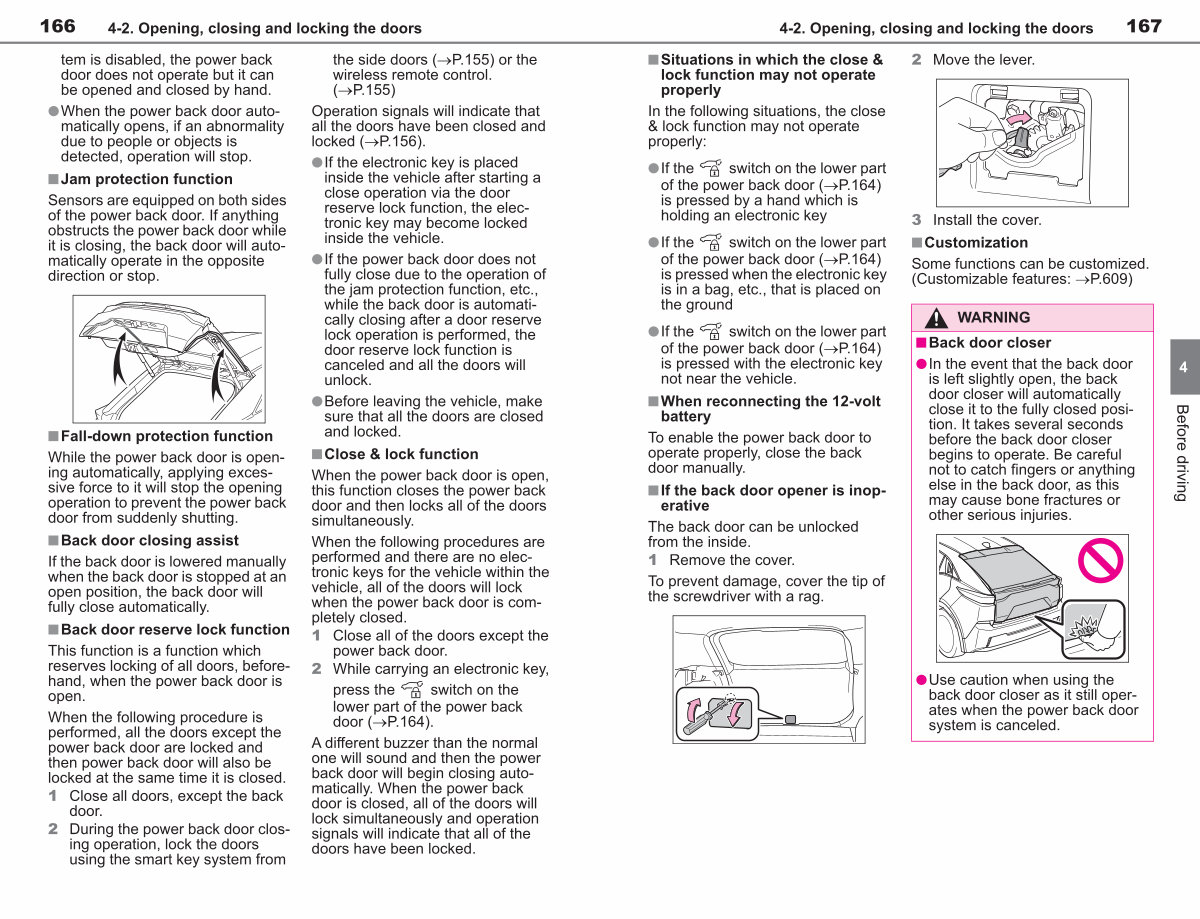

166 4-2. Opening, closing and locking the doors
tem is disabled, the power back door does not operate but it can be opened and closed by hand.
lWhen the power back door automatically opens, if an abnormality due to people or objects is detected, operation will stop.
n Jam protection function
Sensors are equipped on both sides
of the power back door. If anything obstructs the power back door while
it is closing, the back door will automatically operate in the opposite direction or stop.
n Fall-down protection function
While the power back door is opening automatically, applying excessive force to it will stop the opening
operation to prevent the power back door from suddenly shutting.
n Back door closing assist
If the back door is lowered manually
when the back door is stopped at an open position, the back door will
fully close automatically.
n Back door reserve lock function
This function is a function which reserves locking of all doors, beforehand, when the power back door is open.
When the following procedure is performed, all the doors except the power back door are locked and then power back door will also be locked at the same time it is closed.
1 Close all doors, except the back door.
2 During the power back door closing operation, lock the doors using the smart key system from the side doors( �P. 155) or the wireless remote control.( �P. 155)
Operation signals will indicate that all the doors have been closed and locked( �P. 156).
lIf the electronic key is placed inside the vehicle after starting a
close operation via the door reserve lock function, the electronic key may become locked inside the vehicle.
lIf the power back door does not
fully close due to the operation of the jam protection function, etc.,
while the back door is automatically closing after a door reserve lock operation is performed, the door reserve lock function is canceled and all the doors will unlock.
lBefore leaving the vehicle, make sure that all the doors are closed
and locked.
nClose & lock function
When the power back door is open, this function closes the power back door and then locks all of the doors simultaneously.
When the following procedures are performed and there are no electronic keys for the vehicle within the vehicle, all of the doors will lock when the power back door is completely closed.
1 Close all of the doors except the power back door.
2 While carrying an electronic key,
press the switch on the lower part of the power back door( �P. 164).
A different buzzer than the normal one will sound and then the power back door will begin closing automatically. When the power back door is closed, all of the doors will lock simultaneously and operation
signals will indicate that all of the doors have been locked.
