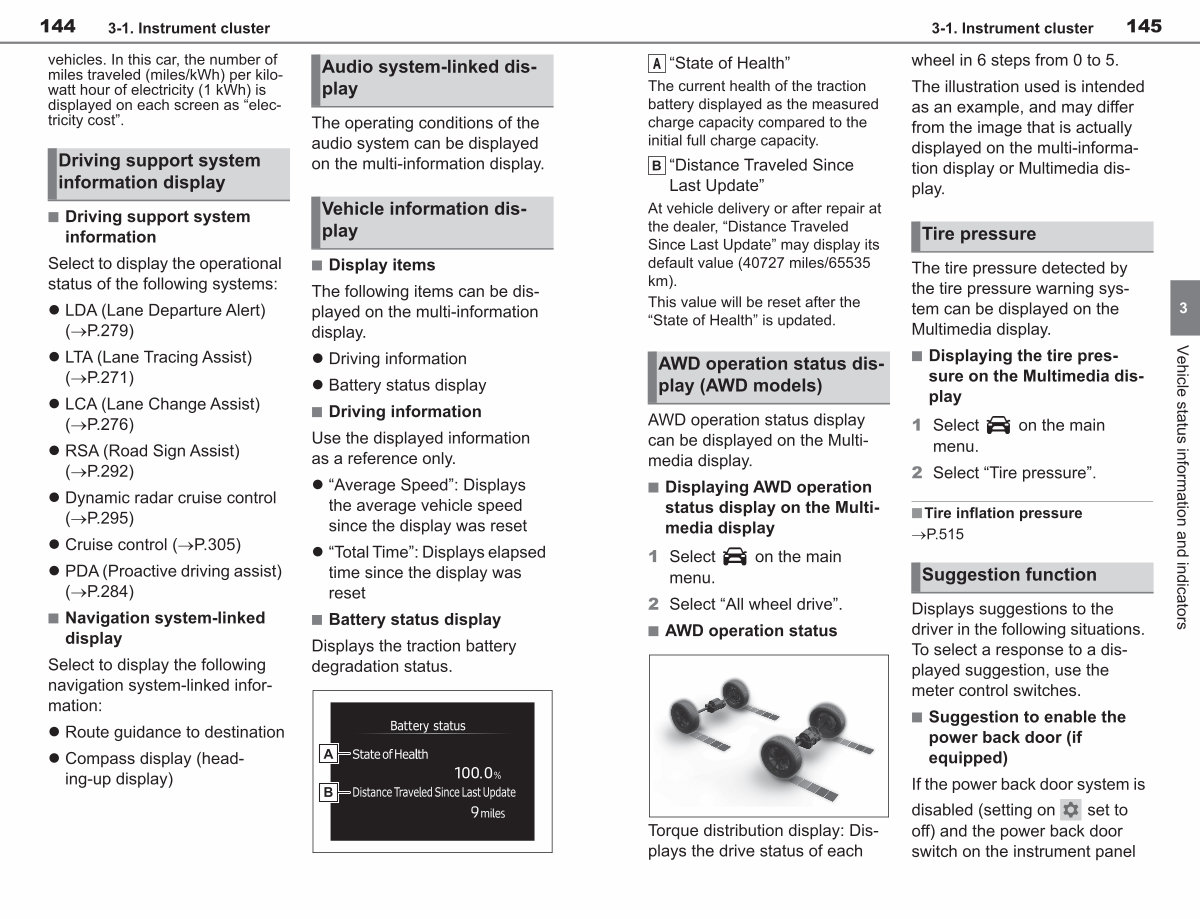

3-1. Instrument cluster
145
A
“ State of Health”
The current health of the traction battery displayed as the measured charge capacity compared to the initial full charge capacity.
“ Distance Traveled Since Last Update”
At vehicle delivery or after repair at the dealer,“ Distance Traveled Since Last Update” may display its default value( 40727 miles / 65535 km). This value will be reset after the“ State of Health” is updated.
AWD operation status display( AWD models)
AWD operation status display can be displayed on the Multimedia display.
n Displaying AWD operation status display on the Multimedia display
1 Select on the main menu.
2 Select“ All wheel drive”. n AWD operation status
Torque distribution display: Displays the drive status of each wheel in 6 steps from 0 to 5.
The illustration used is intended as an example, and may differ from the image that is actually displayed on the multi-information display or Multimedia display.
Tire pressure
The tire pressure detected by the tire pressure warning system can be displayed on the Multimedia display.
n Displaying the tire pressure on the Multimedia display
1 Select on the main menu.
2 Select“ Tire pressure”.
nTire inflation pressure �P. 515
Suggestion function
Displays suggestions to the driver in the following situations. To select a response to a displayed suggestion, use the meter control switches.
n Suggestion to enable the power back door( if equipped)
If the power back door system is disabled( setting on set to off) and the power back door switch on the instrument panel
3
Vehicle status information and indicators
