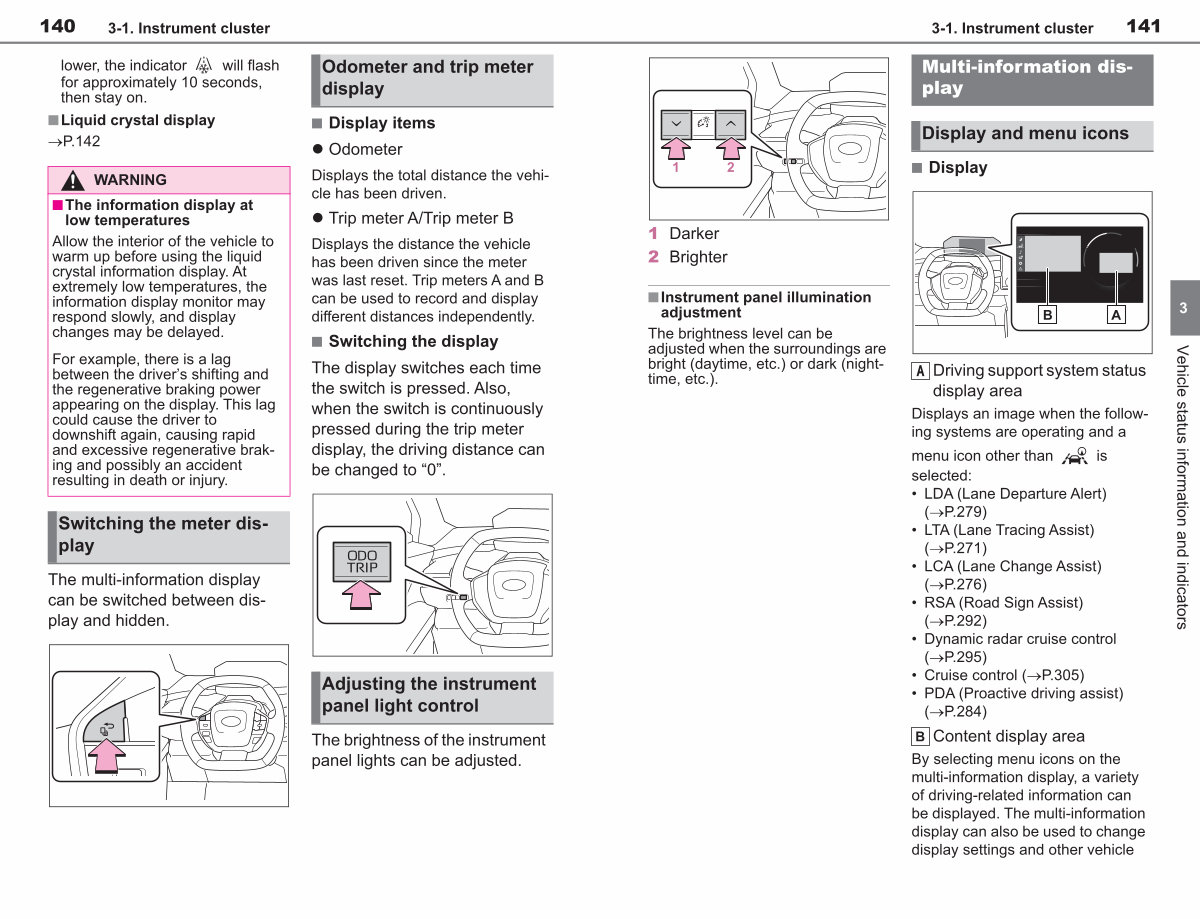

140 3-1. Instrument cluster
lower, the indicator will flash
for approximately 10 seconds, then stay on.
n Liquid crystal display �P. 142
WARNING
n The information display at low temperatures
Allow the interior of the vehicle to
warm up before using the liquid crystal information display. At
extremely low temperatures, the
information display monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the driver’ s shifting and the regenerative braking power appearing on the display. This lag could cause the driver to downshift again, causing rapid and excessive regenerative braking and possibly an accident resulting in death or injury.
Odometer and trip meter display
n Display items
• Odometer
Displays the total distance the vehicle has been driven.
• Trip meter A / Trip meter B
Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display different distances independently.
n Switching the display
The display switches each time the switch is pressed. Also, when the switch is continuously pressed during the trip meter display, the driving distance can be changed to“ 0”.
Switching the meter display
The multi-information display can be switched between display and hidden.
Adjusting the instrument panel light control
The brightness of the instrument panel lights can be adjusted.
