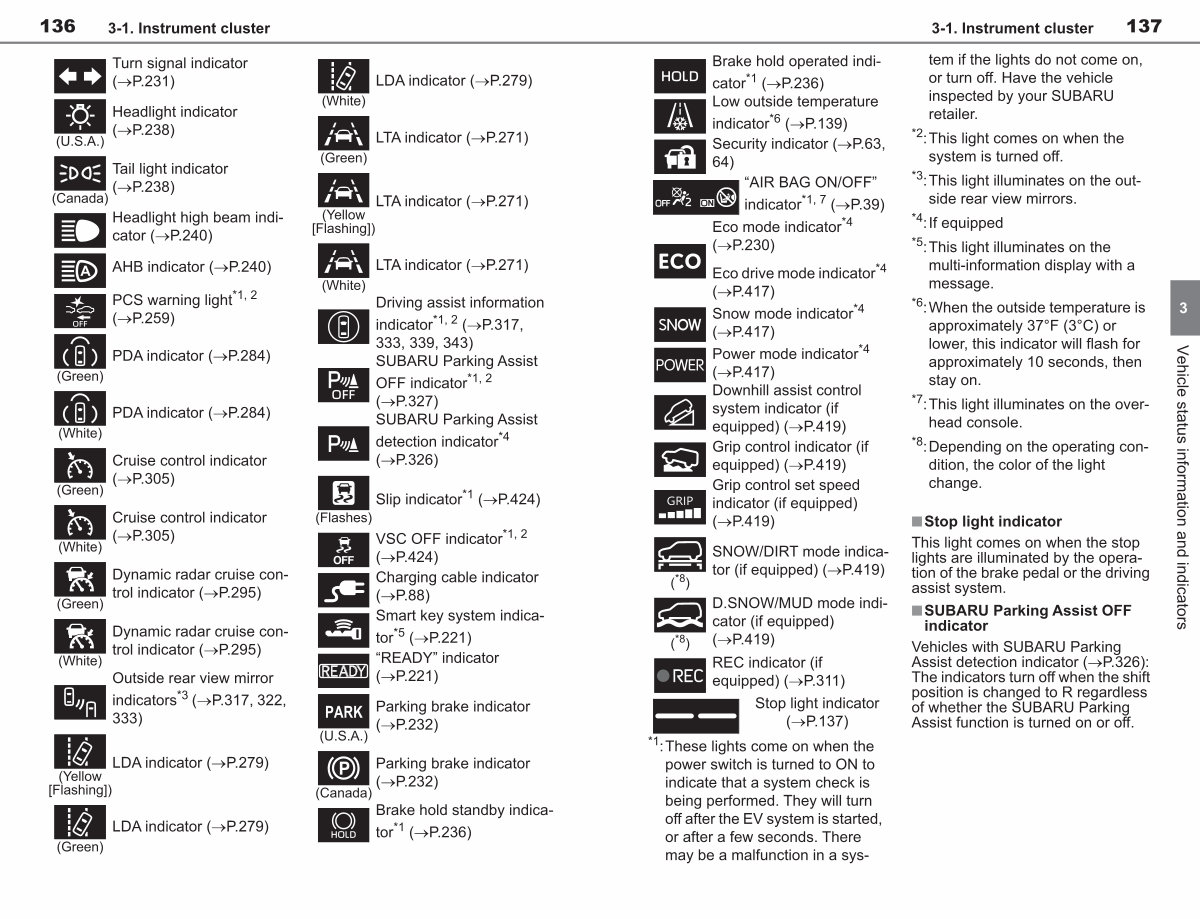

3-1. Instrument cluster
137
( * 8)
( * 8)
Brake hold operated indicator * 1( �P. 236) Low outside temperature
indicator * 6( �P. 139) Security indicator( �P. 63, 64)“ AIR BAG ON / OFF” indicator * 1, 7( �P. 39)
Eco mode indicator * 4( �P. 230)
Eco drive mode indicator * 4( �P. 417)
Snow mode indicator * 4( �P. 417)
Power mode indicator * 4( �P. 417) Downhill assist control system indicator( if equipped)( �P. 419) Grip control indicator( if equipped)( �P. 419) Grip control set speed indicator( if equipped)( �P. 419)
SNOW / DIRT mode indicator( if equipped)( �P. 419)
D. SNOW / MUD mode indicator( if equipped)( �P. 419)
REC indicator( if equipped)( �P. 311)
Stop light indicator( �P. 137)
* 1: These lights come on when the
power switch is turned to ON to indicate that a system check is being performed. They will turn off after the EV system is started, or after a few seconds. There may be a malfunction in a system if the lights do not come on, or turn off. Have the vehicle inspected by your SUBARU retailer.
* 2: This light comes on when the
system is turned off.
* 3: This light illuminates on the outside rear view mirrors.
* 4: If equipped
* 5: This light illuminates on the
multi-information display with a message.
* 6: When the outside temperature is
approximately 37 ° F( 3 ° C) or lower, this indicator will flash for approximately 10 seconds, then stay on.
* 7: This light illuminates on the overhead console.
* 8: Depending on the operating condition, the color of the light change.
nStop light indicator
This light comes on when the stop
lights are illuminated by the operation of the brake pedal or the driving
assist system.
nSUBARU Parking Assist OFF indicator
Vehicles with SUBARU Parking Assist detection indicator( �P. 326):
The indicators turn off when the shift position is changed to R regardless
of whether the SUBARU Parking Assist function is turned on or off.
3
Vehicle status information and indicators
