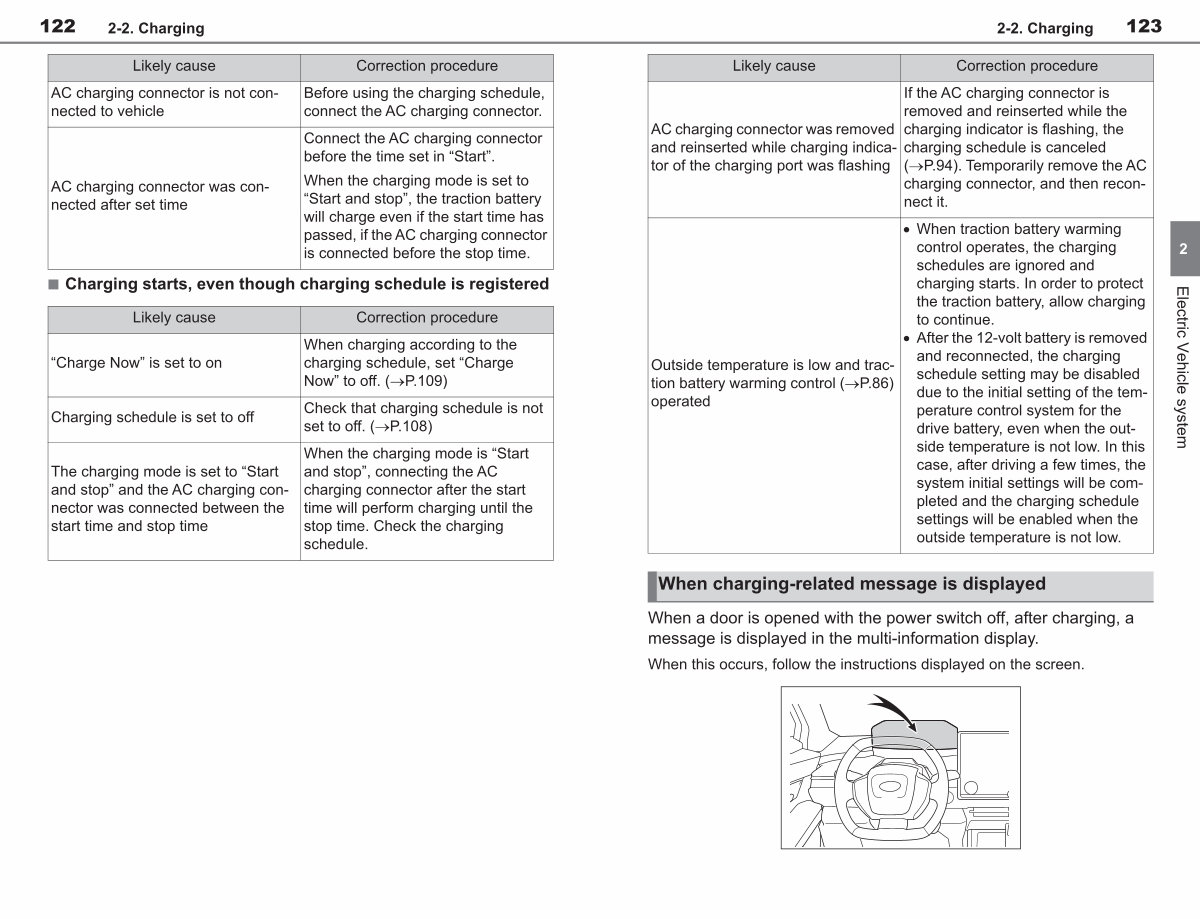

2-2. Charging
123
Likely cause
AC charging connector was removed and reinserted while charging indicator of the charging port was flashing
Outside temperature is low and traction battery warming control( �P. 86) operated
Correction procedure
If the AC charging connector is removed and reinserted while the charging indicator is flashing, the charging schedule is canceled( �P. 94). Temporarily remove the AC charging connector, and then reconnect it.
� When traction battery warming control operates, the charging schedules are ignored and charging starts. In order to protect the traction battery, allow charging to continue.
� After the 12-volt battery is removed and reconnected, the charging schedule setting may be disabled due to the initial setting of the temperature control system for the drive battery, even when the outside temperature is not low. In this case, after driving a few times, the system initial settings will be completed and the charging schedule settings will be enabled when the outside temperature is not low.
2
Electric Vehicle system
When charging-related message is displayed
When a door is opened with the power switch off, after charging, a message is displayed in the multi-information display.
When this occurs, follow the instructions displayed on the screen.
