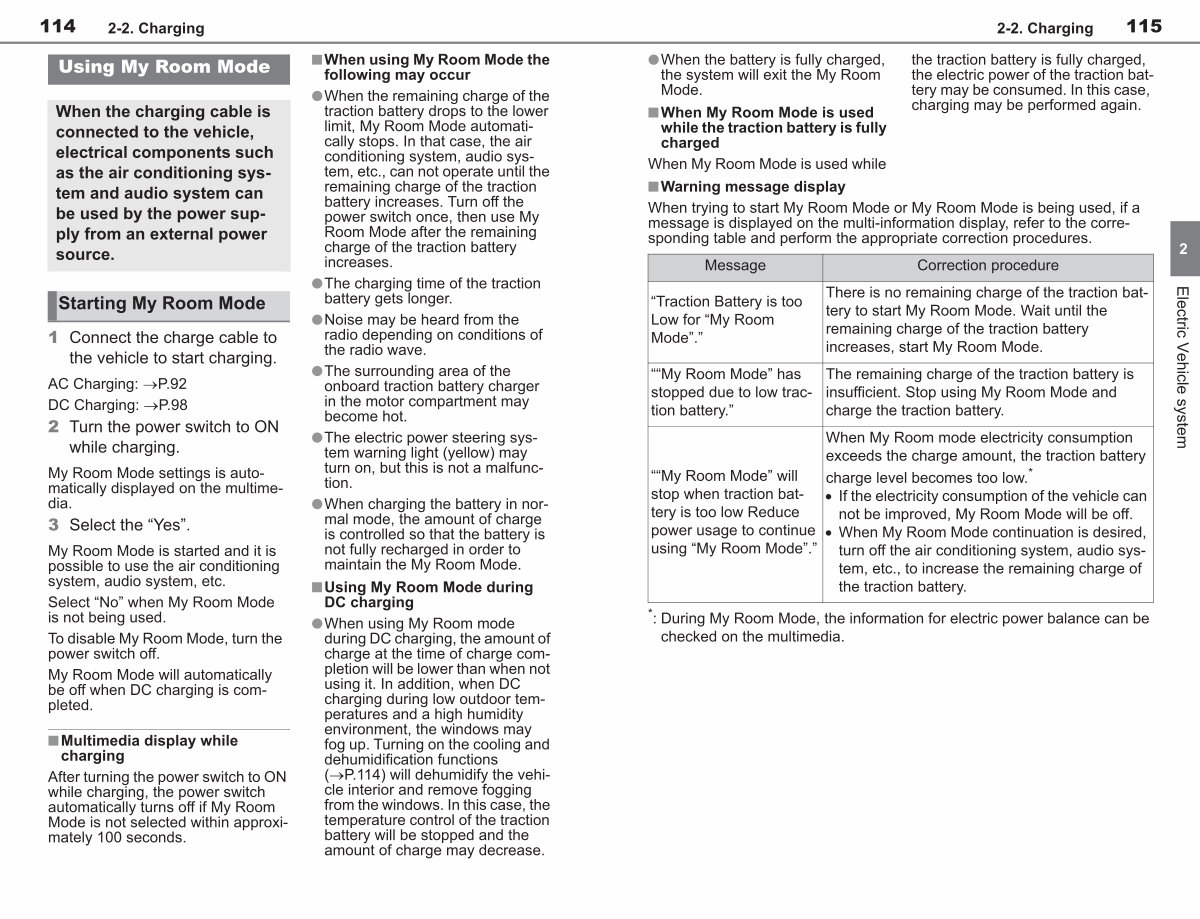

114 2-2. Charging
Using My Room Mode
When the charging cable is connected to the vehicle, electrical components such as the air conditioning system and audio system can be used by the power supply from an external power source.
Starting My Room Mode
1 Connect the charge cable to the vehicle to start charging.
AC Charging: �P. 92 DC Charging: �P. 98 2 Turn the power switch to ON while charging.
My Room Mode settings is automatically displayed on the multimedia.
3 Select the“ Yes”.
My Room Mode is started and it is possible to use the air conditioning
system, audio system, etc.
Select“ No” when My Room Mode is not being used.
To disable My Room Mode, turn the power switch off.
My Room Mode will automatically be off when DC charging is completed.
n Multimedia display while charging
After turning the power switch to ON while charging, the power switch automatically turns off if My Room
Mode is not selected within approximately 100 seconds. nWhen using My Room Mode the following may occur
lWhen the remaining charge of the traction battery drops to the lower limit, My Room Mode automatically stops. In that case, the air
conditioning system, audio system, etc., can not operate until the
remaining charge of the traction
battery increases. Turn off the power switch once, then use My
Room Mode after the remaining
charge of the traction battery increases.
lThe charging time of the traction battery gets longer.
lNoise may be heard from the radio depending on conditions of
the radio wave.
lThe surrounding area of the onboard traction battery charger
in the motor compartment may become hot.
lThe electric power steering system warning light( yellow) may
turn on, but this is not a malfunction.
lWhen charging the battery in normal mode, the amount of charge is controlled so that the battery is
not fully recharged in order to maintain the My Room Mode.
nUsing My Room Mode during DC charging
lWhen using My Room mode during DC charging, the amount of
charge at the time of charge completion will be lower than when not using it. In addition, when DC
charging during low outdoor temperatures and a high humidity environment, the windows may fog up. Turning on the cooling and dehumidification functions( �P. 114) will dehumidify the vehicle interior and remove fogging from the windows. In this case, the
temperature control of the traction battery will be stopped and the
amount of charge may decrease.
