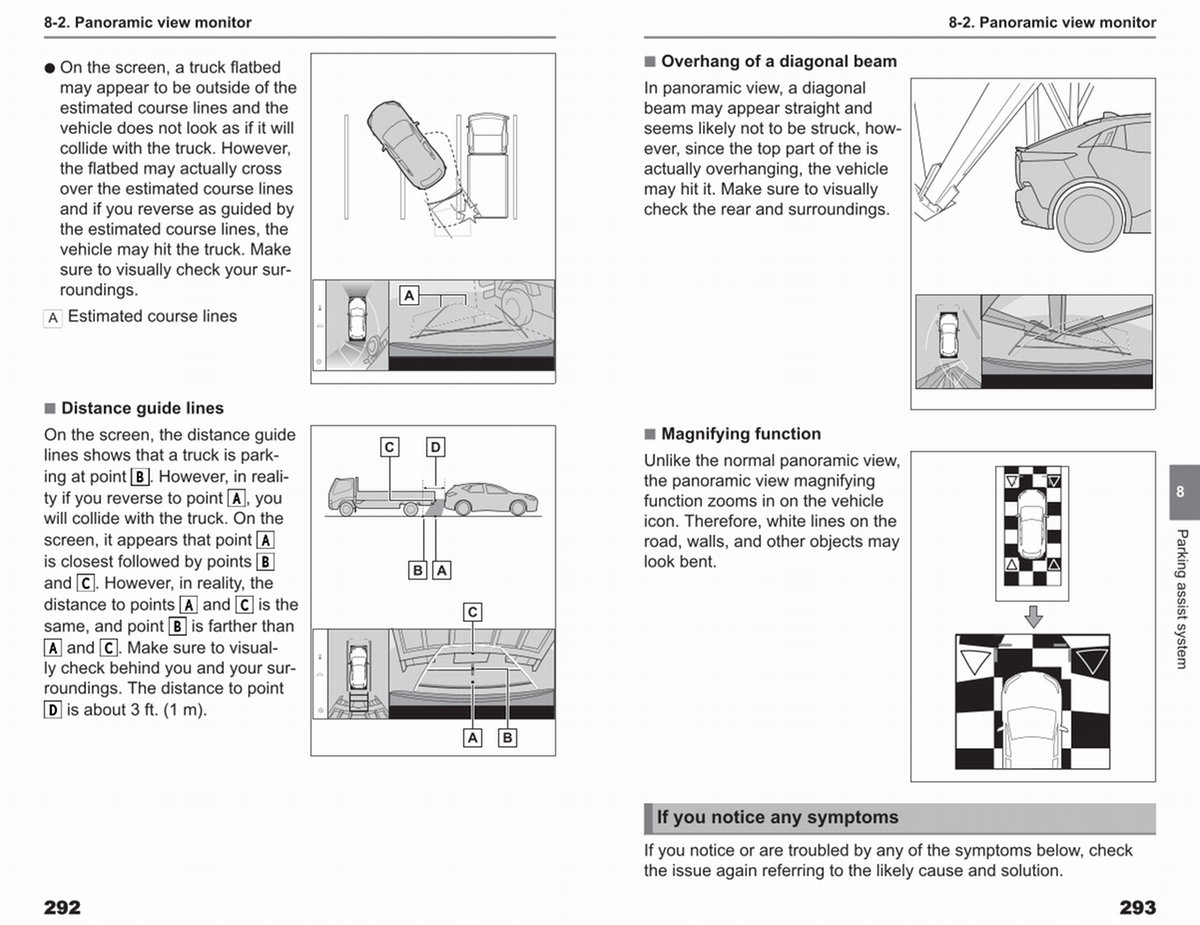

8-2. Panoramic view monitor
● On the screen, a truck flatbed may appear to be outside of the estimated course lines and the vehicle does not look as if it will collide with the truck. However, the flatbed may actually cross over the estimated course lines and if you reverse as guided by the estimated course lines, the vehicle may hit the truck. Make sure to visually check your surroundings.
A Estimated course lines
■ Distance guide lines
On the screen, the distance guide lines shows that a truck is parking at point. However, in reality if you reverse to point, you will collide with the truck. On the screen, it appears that point is closest followed by points and. However, in reality, the distance to points and is the same, and point is farther than and. Make sure to visually check behind you and your surroundings. The distance to point is about 3 ft.( 1 m).
292
