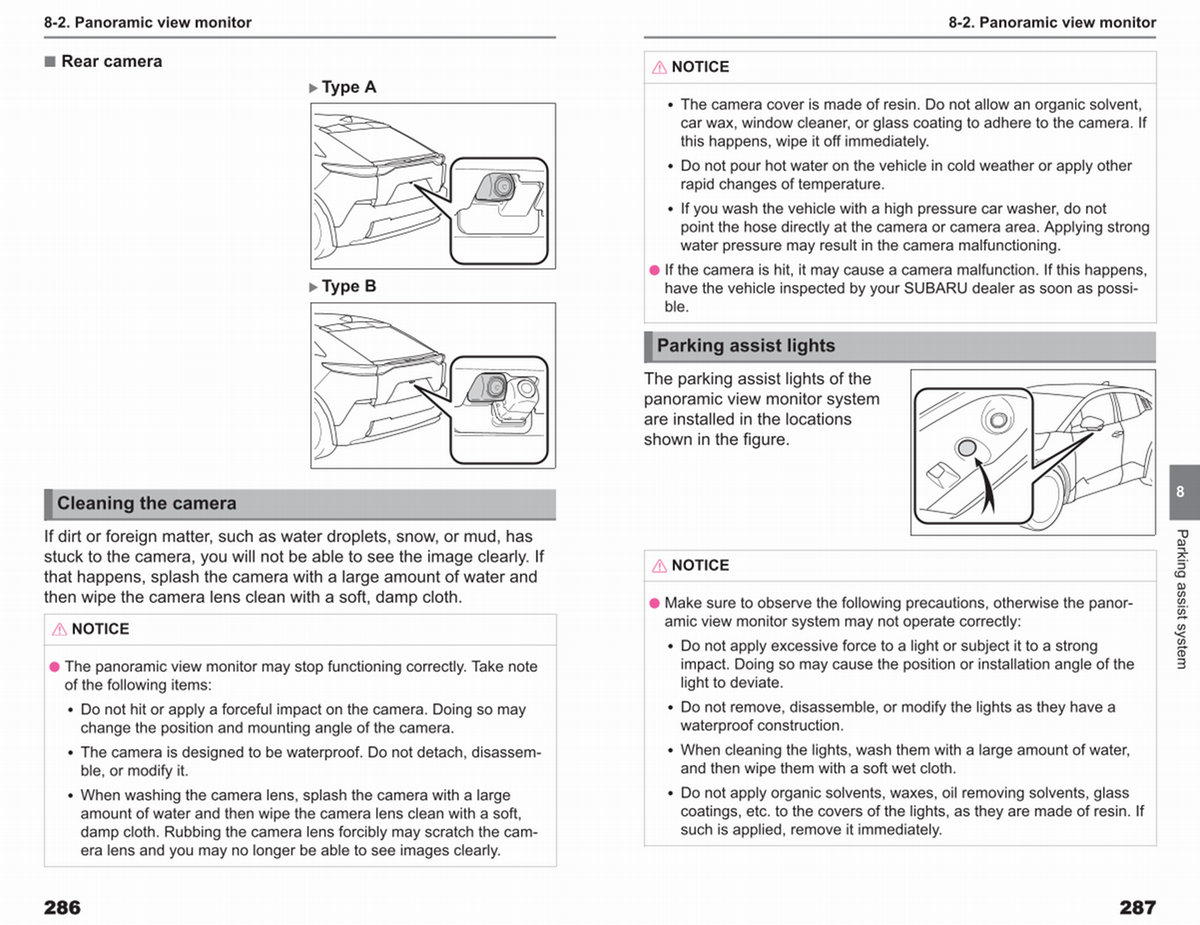

8-2. Panoramic view monitor
NOTICE
• The camera cover is made of resin. Do not allow an organic solvent, car wax, window cleaner, or glass coating to adhere to the camera. If this happens, wipe it off immediately.
• Do not pour hot water on the vehicle in cold weather or apply other rapid changes of temperature.
• If you wash the vehicle with a high pressure car washer, do not point the hose directly at the camera or camera area. Applying strong water pressure may result in the camera malfunctioning.
● If the camera is hit, it may cause a camera malfunction. If this happens, have the vehicle inspected by your SUBARU dealer as soon as possible.
Parking assist lights
The parking assist lights of the panoramic view monitor system are installed in the locations shown in the figure.
8
NOTICE
● Make sure to observe the following precautions, otherwise the panoramic view monitor system may not operate correctly:
• Do not apply excessive force to a light or subject it to a strong impact. Doing so may cause the position or installation angle of the light to deviate.
• Do not remove, disassemble, or modify the lights as they have a waterproof construction.
• When cleaning the lights, wash them with a large amount of water, and then wipe them with a soft wet cloth.
• Do not apply organic solvents, waxes, oil removing solvents, glass coatings, etc. to the covers of the lights, as they are made of resin. If such is applied, remove it immediately.
Parking assist system
287
