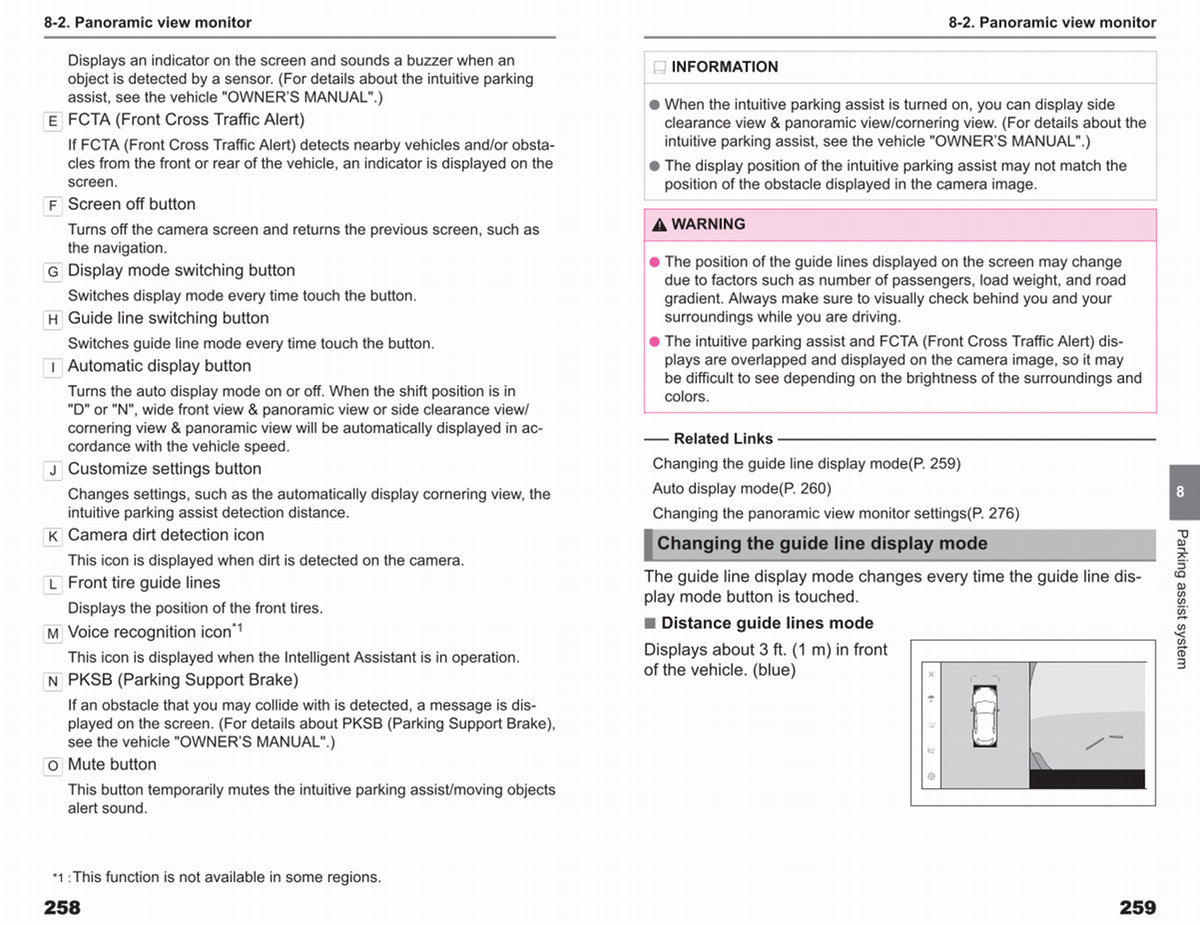

8-2. Panoramic view monitor
Displays an indicator on the screen and sounds a buzzer when an object is detected by a sensor.( For details about the intuitive parking assist, see the vehicle " OWNER’ S MANUAL ".)
E FCTA( Front Cross Traffic Alert)
F
If FCTA( Front Cross Traffic Alert) detects nearby vehicles and / or obstacles from the front or rear of the vehicle, an indicator is displayed on the screen. Screen off button
Turns off the camera screen and returns the previous screen, such as the navigation.
G Display mode switching button Switches display mode every time touch the button.
H Guide line switching button
I
J
Switches guide line mode every time touch the button. Automatic display button
Turns the auto display mode on or off. When the shift position is in " D " or " N ", wide front view & panoramic view or side clearance view / cornering view & panoramic view will be automatically displayed in accordance with the vehicle speed. Customize settings button
Changes settings, such as the automatically display cornering view, the intuitive parking assist detection distance.
K Camera dirt detection icon
L
This icon is displayed when dirt is detected on the camera. Front tire guide lines Displays the position of the front tires.
M Voice recognition icon * 1 This icon is displayed when the Intelligent Assistant is in operation.
N PKSB( Parking Support Brake)
If an obstacle that you may collide with is detected, a message is displayed on the screen.( For details about PKSB( Parking Support Brake), see the vehicle " OWNER’ S MANUAL ".)
O Mute button
This button temporarily mutes the intuitive parking assist / moving objects alert sound.
* 1: This function is not available in some regions.
258
