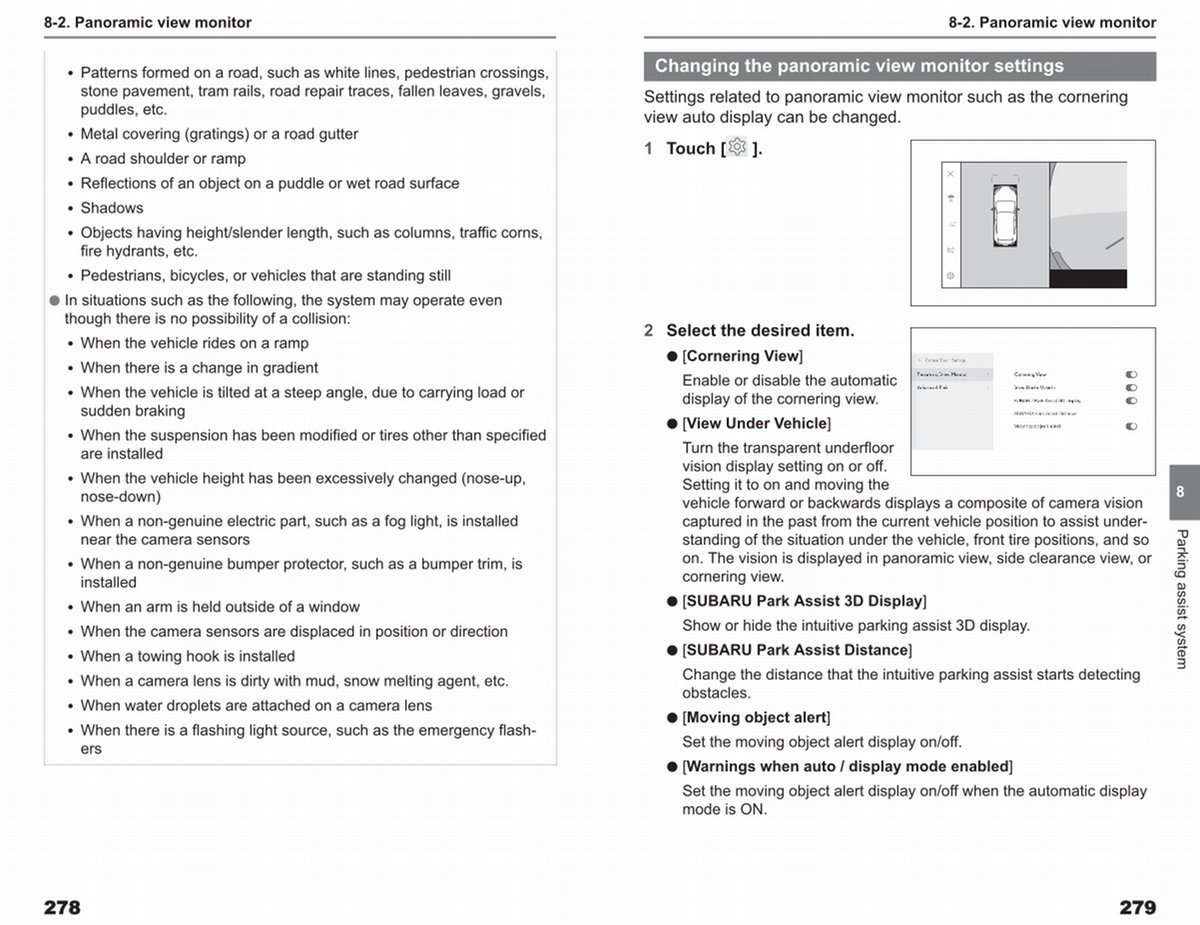

Changing the panoramic view monitor settings
Settings related to panoramic view monitor such as the cornering view auto display can be changed.
1 Touch [ ].
8-2. Panoramic view monitor
2 Select the desired item.
● [ Cornering View ]
Enable or disable the automatic display of the cornering view.
● [ View Under Vehicle ]
Turn the transparent underfloor vision display setting on or off. Setting it to on and moving the vehicle forward or backwards displays a composite of camera vision captured in the past from the current vehicle position to assist understanding of the situation under the vehicle, front tire positions, and so on. The vision is displayed in panoramic view, side clearance view, or cornering view.
● [ SUBARU Park Assist 3D Display ] Show or hide the intuitive parking assist 3D display.
● [ SUBARU Park Assist Distance ]
Change the distance that the intuitive parking assist starts detecting obstacles.
● [ Moving object alert ] Set the moving object alert display on / off.
● [ Warnings when auto / display mode enabled ]
Set the moving object alert display on / off when the automatic display mode is ON.
8
Parking assist system
279
