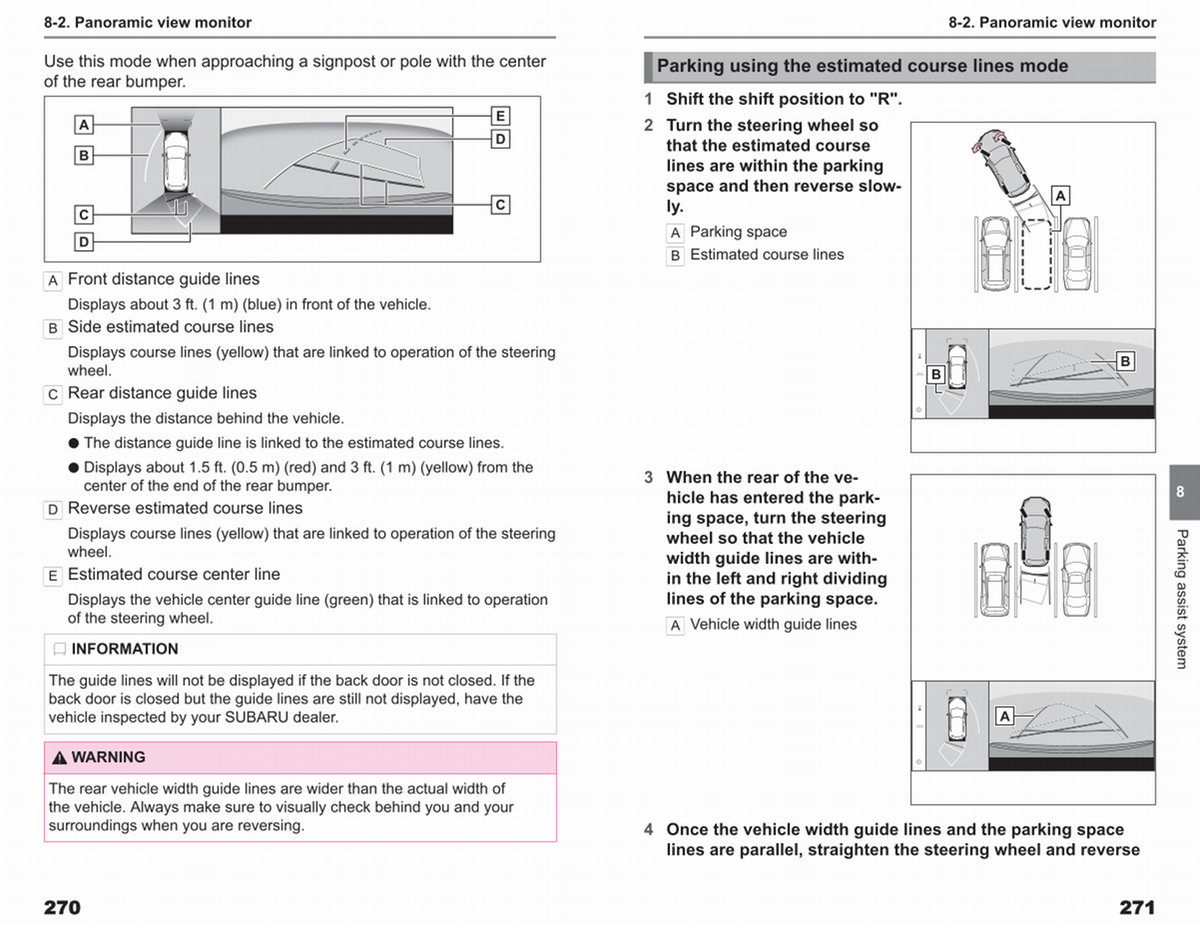

8-2. Panoramic view monitor
Use this mode when approaching a signpost or pole with the center of the rear bumper.
A Front distance guide lines Displays about 3 ft.( 1 m)( blue) in front of the vehicle.
B Side estimated course lines
Displays course lines( yellow) that are linked to operation of the steering wheel.
C Rear distance guide lines Displays the distance behind the vehicle.
● The distance guide line is linked to the estimated course lines.
● Displays about 1.5 ft.( 0.5 m)( red) and 3 ft.( 1 m)( yellow) from the center of the end of the rear bumper.
D Reverse estimated course lines
Displays course lines( yellow) that are linked to operation of the steering wheel.
E Estimated course center line
Displays the vehicle center guide line( green) that is linked to operation of the steering wheel.
INFORMATION
The guide lines will not be displayed if the back door is not closed. If the back door is closed but the guide lines are still not displayed, have the vehicle inspected by your SUBARU dealer.
WARNING
The
rear vehicle width guide lines are wider than the actual width of the vehicle. Always make sure to visually check behind you and your surroundings when you are reversing.
270
