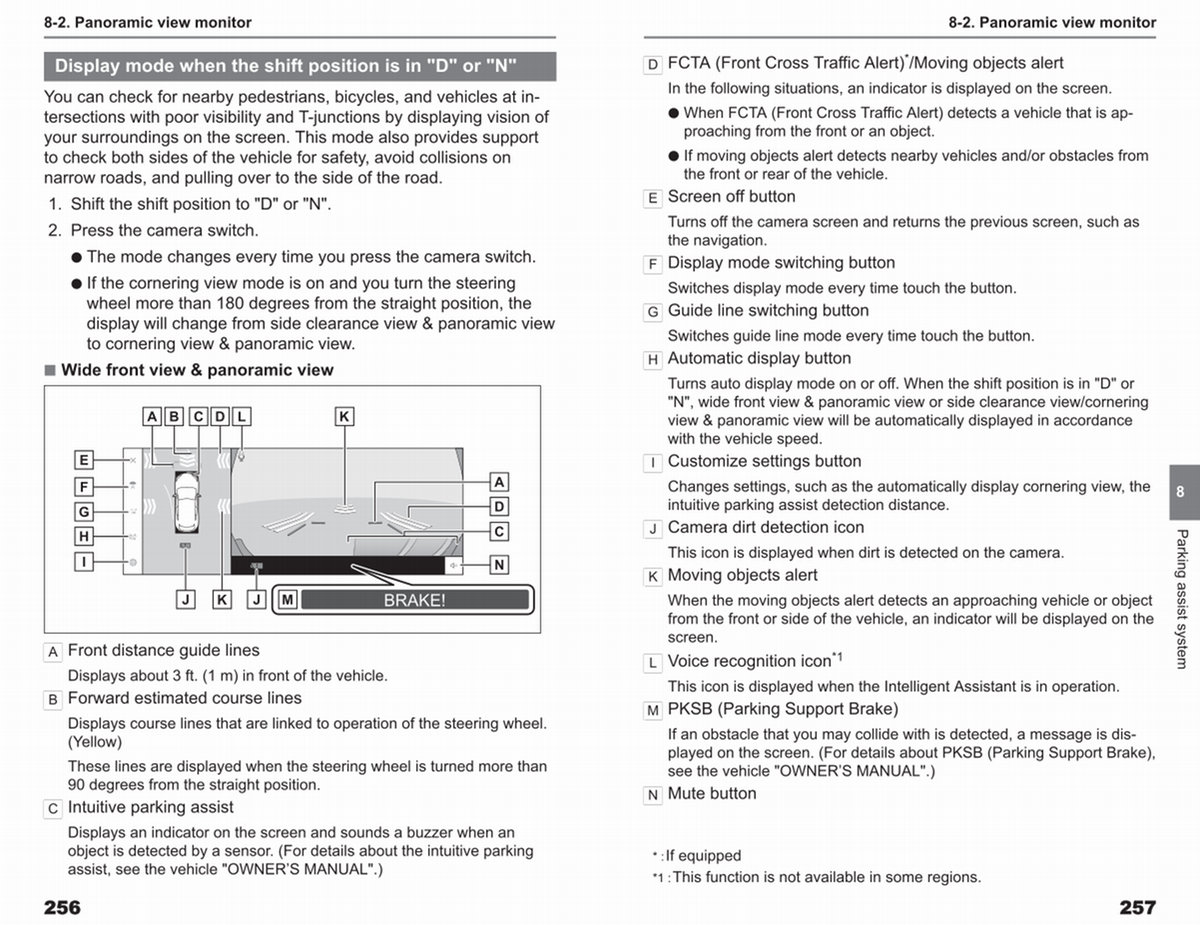

8-2. Panoramic view monitor
D FCTA( Front Cross Traffic Alert) * / Moving objects alert In the following situations, an indicator is displayed on the screen.
● When FCTA( Front Cross Traffic Alert) detects a vehicle that is approaching from the front or an object.
● If moving objects alert detects nearby vehicles and / or obstacles from the front or rear of the vehicle.
E Screen off button
F
Turns off the camera screen and returns the previous screen, such as the navigation. Display mode switching button Switches display mode every time touch the button.
G Guide line switching button Switches guide line mode every time touch the button.
H Automatic display button
I
J
Turns auto display mode on or off. When the shift position is in " D " or " N ", wide front view & panoramic view or side clearance view / cornering view & panoramic view will be automatically displayed in accordance with the vehicle speed. Customize settings button
Changes settings, such as the automatically display cornering view, the intuitive parking assist detection distance. Camera dirt detection icon This icon is displayed when dirt is detected on the camera.
K Moving objects alert
When the moving objects alert detects an approaching vehicle or object from the front or side of the vehicle, an indicator will be displayed on the screen.
L Voice recognition icon * 1 This icon is displayed when the Intelligent Assistant is in operation.
M PKSB( Parking Support Brake)
If an obstacle that you may collide with is detected, a message is displayed on the screen.( For details about PKSB( Parking Support Brake), see the vehicle " OWNER’ S MANUAL ".)
N Mute button
8
Parking assist system
*: If equipped * 1: This function is not available in some regions.
257
