C Side clearance view & panoramic view
D Cornering view & panoramic view
E Pressing the camera switch
F Touch the display mode switching button
G When the steering wheel is turned by 180 degrees or more from the center( straight-line) position
■ Display mode when the shift position is in“ R”

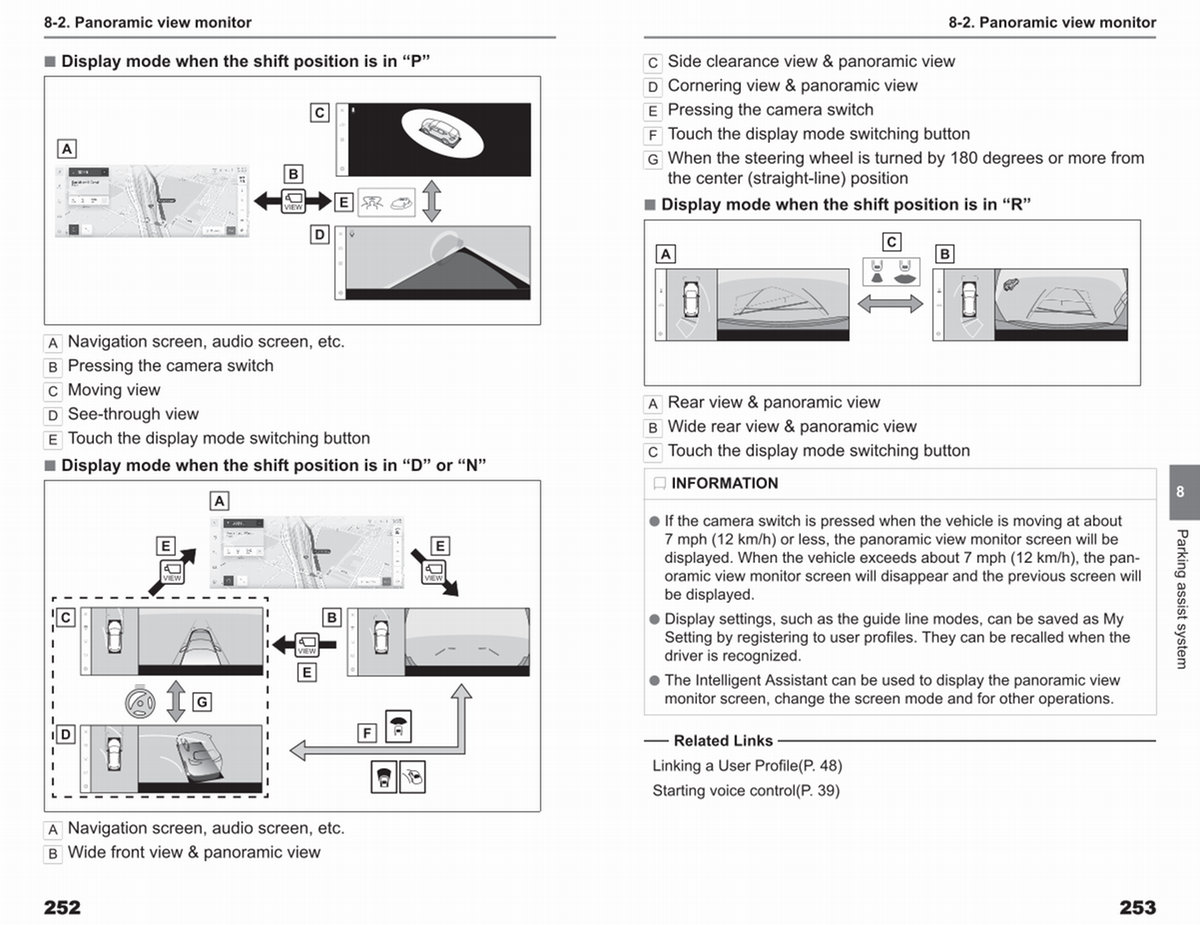

8-2. Panoramic view monitor
A Rear view & panoramic view
B Wide rear view & panoramic view
C Touch the display mode switching button
INFORMATION
● If the camera switch is pressed when the vehicle is moving at about 7 mph( 12 km / h) or less, the panoramic view monitor screen will be displayed. When the vehicle exceeds about 7 mph( 12 km / h), the panoramic view monitor screen will disappear and the previous screen will be displayed.
● Display settings, such as the guide line modes, can be saved as My Setting by registering to user profiles. They can be recalled when the driver is recognized.
● The Intelligent Assistant can be used to display the panoramic view monitor screen, change the screen mode and for other operations.
8
Parking assist system
Related Links Linking a User Profile( P. 48) Starting voice control( P. 39)
253
