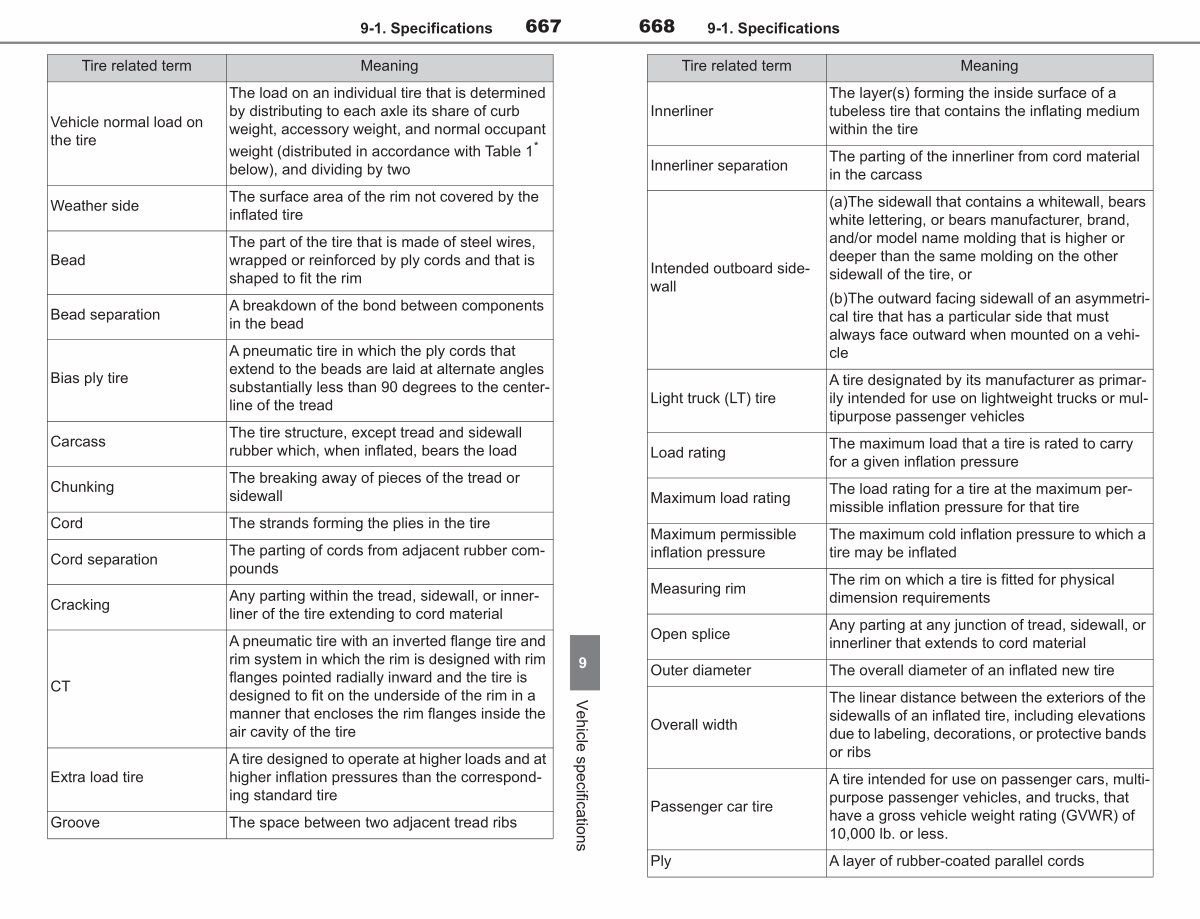

668 9-1. Specifications
Innerliner
Innerliner separation
Intended outboard sidewall
Light truck( LT) tire
Load rating
Maximum load rating
Maximum permissible inflation pressure
Measuring rim
Open splice Outer diameter
Overall width
Passenger car tire
Ply
Tire related term
Meaning
The layer( s) forming the inside surface of a tubeless tire that contains the inflating medium within the tire
The parting of the innerliner from cord material in the carcass
( a) The sidewall that contains a whitewall, bears white lettering, or bears manufacturer, brand, and / or model name molding that is higher or deeper than the same molding on the other sidewall of the tire, or
( b) The outward facing sidewall of an asymmetrical tire that has a particular side that must always face outward when mounted on a vehicle
A tire designated by its manufacturer as primarily intended for use on lightweight trucks or multipurpose passenger vehicles
The maximum load that a tire is rated to carry for a given inflation pressure
The load rating for a tire at the maximum permissible inflation pressure for that tire
The maximum cold inflation pressure to which a tire may be inflated
The rim on which a tire is fitted for physical dimension requirements
Any parting at any junction of tread, sidewall, or innerliner that extends to cord material
The overall diameter of an inflated new tire
The linear distance between the exteriors of the sidewalls of an inflated tire, including elevations due to labeling, decorations, or protective bands or ribs
A tire intended for use on passenger cars, multipurpose passenger vehicles, and trucks, that have a gross vehicle weight rating( GVWR) of 10,000 lb. or less.
A layer of rubber-coated parallel cords
