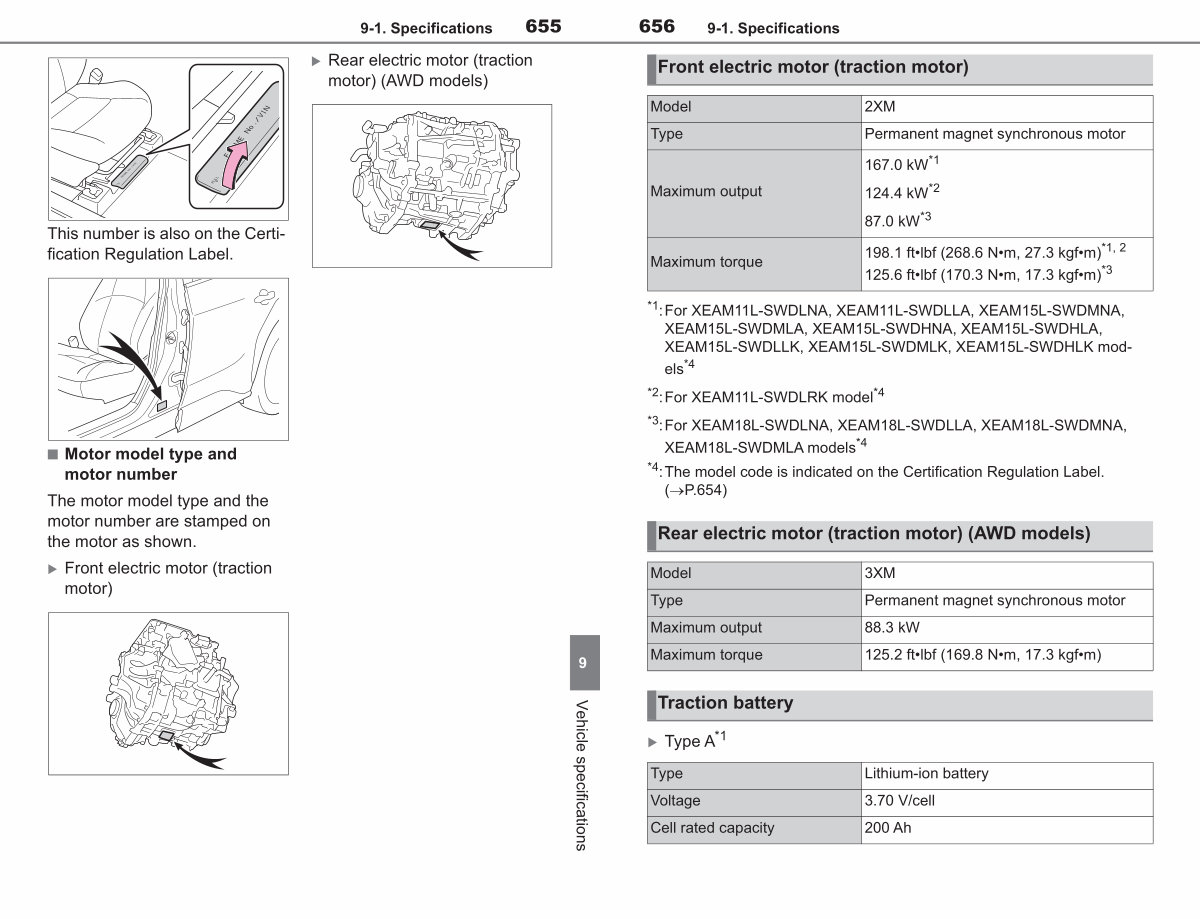

656 9-1. Specifications
Front electric motor( traction motor)
Model Type
Maximum output
Maximum torque
2XM Permanent magnet synchronous motor 167.0 kW * 1 124.4 kW * 2 87.0 kW * 3
198.1 ft • lbf( 268.6 N • m, 27.3 kgf • m) * 1, 2 125.6 ft • lbf( 170.3 N • m, 17.3 kgf • m) * 3
* 1: For XEAM11L-SWDLNA, XEAM11L-SWDLLA, XEAM15L-SWDMNA,
XEAM15L-SWDMLA, XEAM15L-SWDHNA, XEAM15L-SWDHLA, XEAM15L-SWDLLK, XEAM15L-SWDMLK, XEAM15L-SWDHLK models * 4
* 2: For XEAM11L-SWDLRK model * 4
* 3: For XEAM18L-SWDLNA, XEAM18L-SWDLLA, XEAM18L-SWDMNA,
XEAM18L-SWDMLA models * 4
* 4: The model code is indicated on the Certification Regulation Label.( �P. 654)
Rear electric motor( traction motor)( AWD models)
Model Type Maximum output
3XM Permanent magnet synchronous motor 88.3 kW Maximum torque 125.2 ft • lbf( 169.8 N • m, 17.3 kgf • m)
Traction battery
� Type A * 1 Type Voltage Cell rated capacity
Lithium-ion battery 3.70 V / cell 200 Ah
