7-3. Do-it-yourself maintenance
593

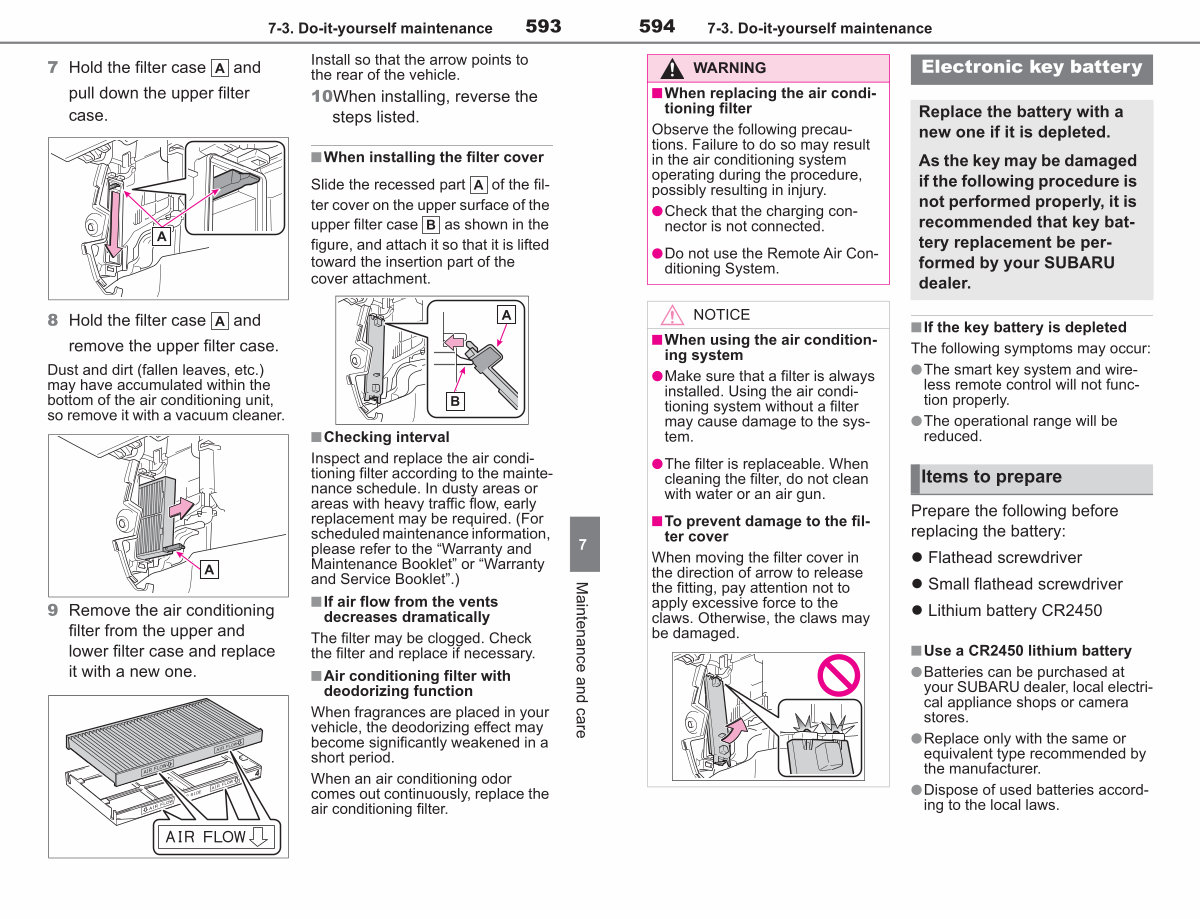

7 Hold the filter case and pull down the upper filter case.
Install so that the arrow points to the rear of the vehicle.
10When installing, reverse the steps listed.
8 Hold the filter case and remove the upper filter case.
Dust and dirt( fallen leaves, etc.) may have accumulated within the bottom of the air conditioning unit, so remove it with a vacuum cleaner.
9 Remove the air conditioning filter from the upper and lower filter case and replace it with a new one.
■ When installing the filter cover
Slide the recessed part of the filter cover on the upper surface of the upper filter case as shown in the
figure, and attach it so that it is lifted toward the insertion part of the cover attachment.
■ Checking interval
Inspect and replace the air conditioning filter according to the maintenance schedule. In dusty areas or areas with heavy traffic flow, early replacement may be required.( For scheduled maintenance information, please refer to the“ Warranty and Maintenance Booklet” or“ Warranty and Service Booklet”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
■ Air conditioning filter with deodorizing function
When fragrances are placed in your vehicle, the deodorizing effect may become significantly weakened in a short period.
When an air conditioning odor comes out continuously, replace the air conditioning filter.
7
Maintenance and care
