7-3. Do-it-yourself maintenance
589

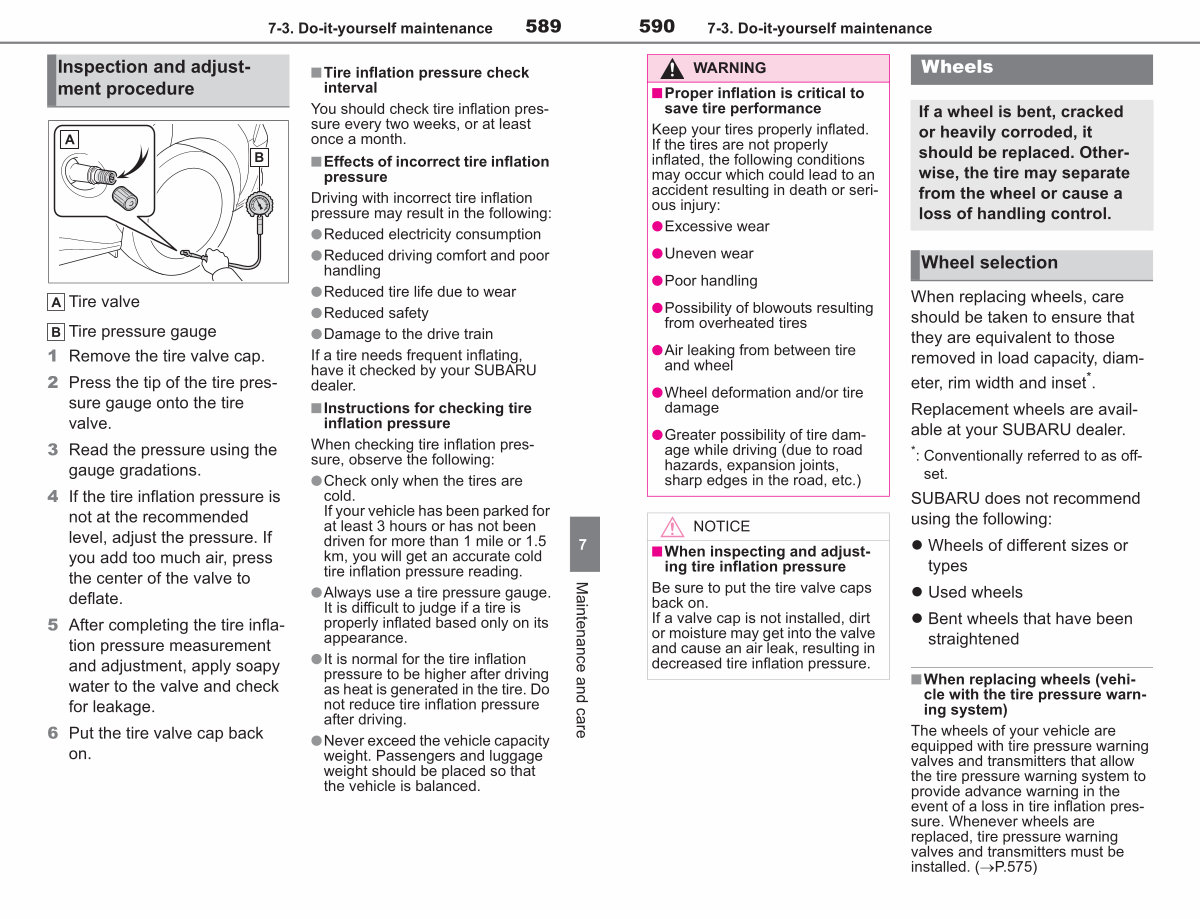

Inspection and adjustment procedure
Tire valve
Tire pressure gauge 1 Remove the tire valve cap.
2 Press the tip of the tire pressure gauge onto the tire valve.
3 Read the pressure using the gauge gradations.
4 If the tire inflation pressure is not at the recommended level, adjust the pressure. If you add too much air, press the center of the valve to deflate.
5 After completing the tire inflation pressure measurement and adjustment, apply soapy water to the valve and check for leakage.
6 Put the tire valve cap back on.
■ Tire inflation pressure check interval
You should check tire inflation pressure every two weeks, or at least once a month.
■ Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
● Reduced electricity consumption
●Reduced driving comfort and poor handling
●Reduced tire life due to wear
● Reduced safety ●Damage to the drive train
If a tire needs frequent inflating, have it checked by your SUBARU
dealer.
■ Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
●Check only when the tires are cold. If your vehicle has been parked for
at least 3 hours or has not been driven for more than 1 mile or 1.5 km, you will get an accurate cold
tire inflation pressure reading.
●Always use a tire pressure gauge.
It is difficult to judge if a tire is properly inflated based only on its appearance.
●It is normal for the tire inflation pressure to be higher after driving
as heat is generated in the tire. Do not reduce tire inflation pressure after driving.
●Never exceed the vehicle capacity weight. Passengers and luggage weight should be placed so that the vehicle is balanced.
7
Maintenance and care
