576 7-3. Do-it-yourself maintenance

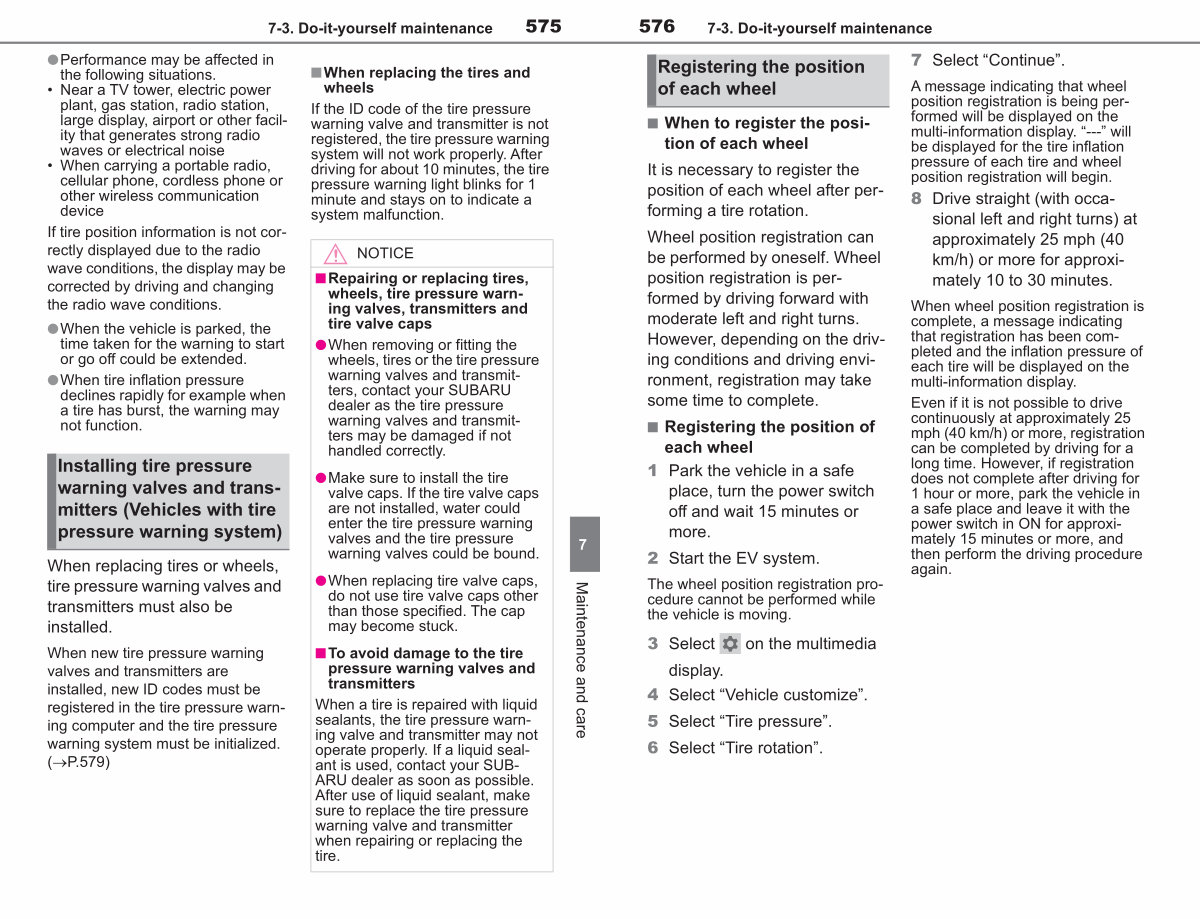

Registering the position of each wheel
■ When to register the position of each wheel
It is necessary to register the position of each wheel after performing a tire rotation.
Wheel position registration can be performed by oneself. Wheel position registration is performed by driving forward with moderate left and right turns. However, depending on the driving conditions and driving environment, registration may take some time to complete.
■ Registering the position of each wheel
1 Park the vehicle in a safe place, turn the power switch off and wait 15 minutes or more.
2 Start the EV system.
The wheel position registration procedure cannot be performed while the vehicle is moving.
7 Select“ Continue”. A message indicating that wheel position registration is being performed will be displayed on the multi-information display.“---” will be displayed for the tire inflation pressure of each tire and wheel
position registration will begin.
8 Drive straight( with occasional left and right turns) at approximately 25 mph( 40 km / h) or more for approximately 10 to 30 minutes.
When wheel position registration is complete, a message indicating
that registration has been completed and the inflation pressure of each tire will be displayed on the multi-information display.
Even if it is not possible to drive
continuously at approximately 25 mph( 40 km / h) or more, registration can be completed by driving for a
long time. However, if registration does not complete after driving for 1 hour or more, park the vehicle in
a safe place and leave it with the power switch in ON for approximately 15 minutes or more, and
then perform the driving procedure again.
3 Select on the multimedia display. 4 Select“ Vehicle customize”. 5 Select“ Tire pressure”. 6 Select“ Tire rotation”.
