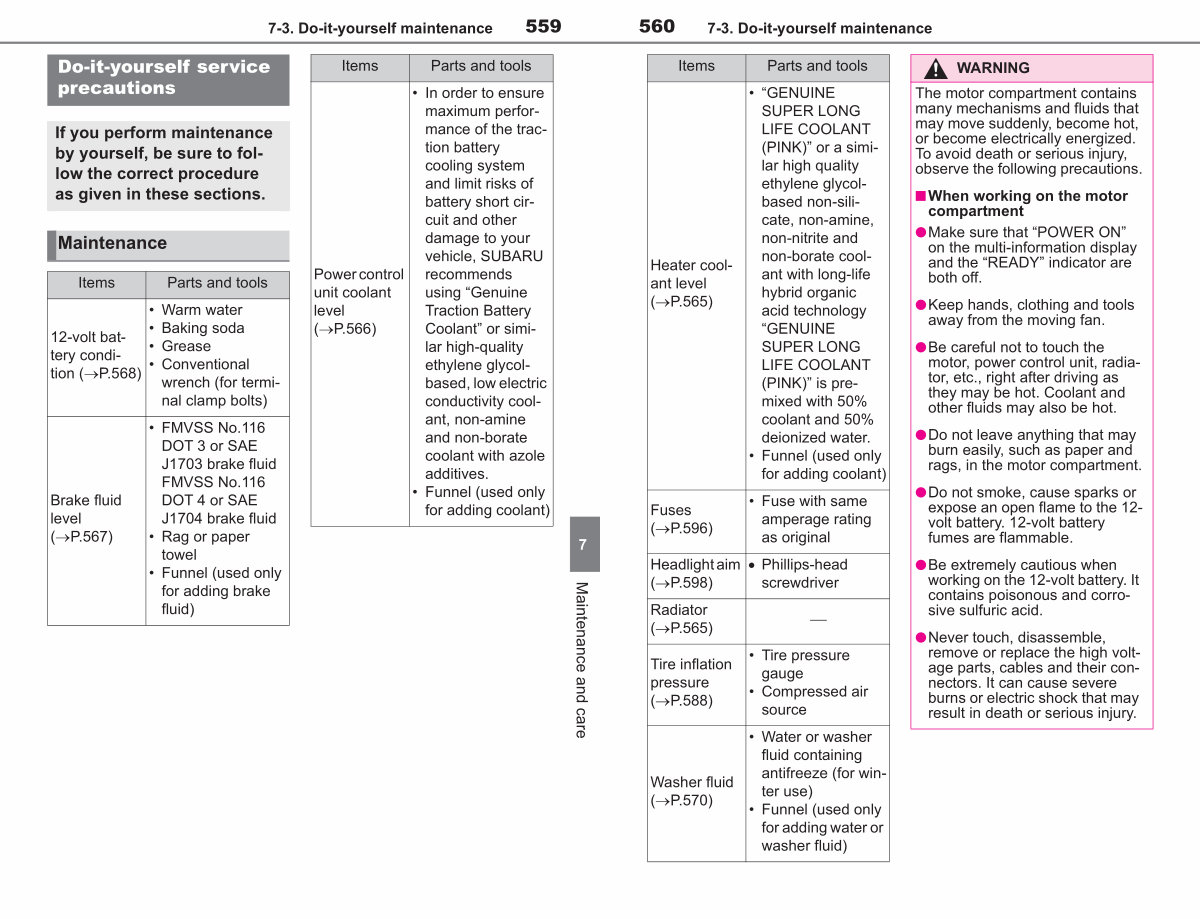

560 7-3. Do-it-yourself maintenance
Items Parts and tools WARNING
Heater coolant level( �P. 565)
Fuses( �P. 596)
Headlight aim( �P. 598)
Radiator( �P. 565)
Tire inflation pressure( �P. 588)
Washer fluid( �P. 570)
•“ GENUINE SUPER LONG LIFE COOLANT( PINK)” or a similar high quality ethylene glycolbased non-silicate, non-amine, non-nitrite and non-borate coolant with long-life hybrid organic acid technology“ GENUINE SUPER LONG LIFE COOLANT( PINK)” is premixed with 50 % coolant and 50 % deionized water.
• Funnel( used only for adding coolant)
• Fuse with same amperage rating as original
� Phillips-head screwdriver
�
• Tire pressure gauge
• Compressed air source
• Water or washer fluid containing antifreeze( for winter use)
• Funnel( used only for adding water or washer fluid)
The motor compartment contains many mechanisms and fluids that may move suddenly, become hot, or become electrically energized.
To avoid death or serious injury, observe the following precautions.
■ When working on the motor compartment
●Make sure that“ POWER ON” on the multi-information display and the“ READY” indicator are both off.
●Keep hands, clothing and tools away from the moving fan.
●Be careful not to touch the motor, power control unit, radiator, etc., right after driving as they may be hot. Coolant and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the motor compartment.
●Do not smoke, cause sparks or expose an open flame to the 12- volt battery. 12-volt battery fumes are flammable.
●Be extremely cautious when working on the 12-volt battery. It contains poisonous and corrosive sulfuric acid.
●Never touch, disassemble, remove or replace the high voltage parts, cables and their connectors. It can cause severe burns or electric shock that may result in death or serious injury.
