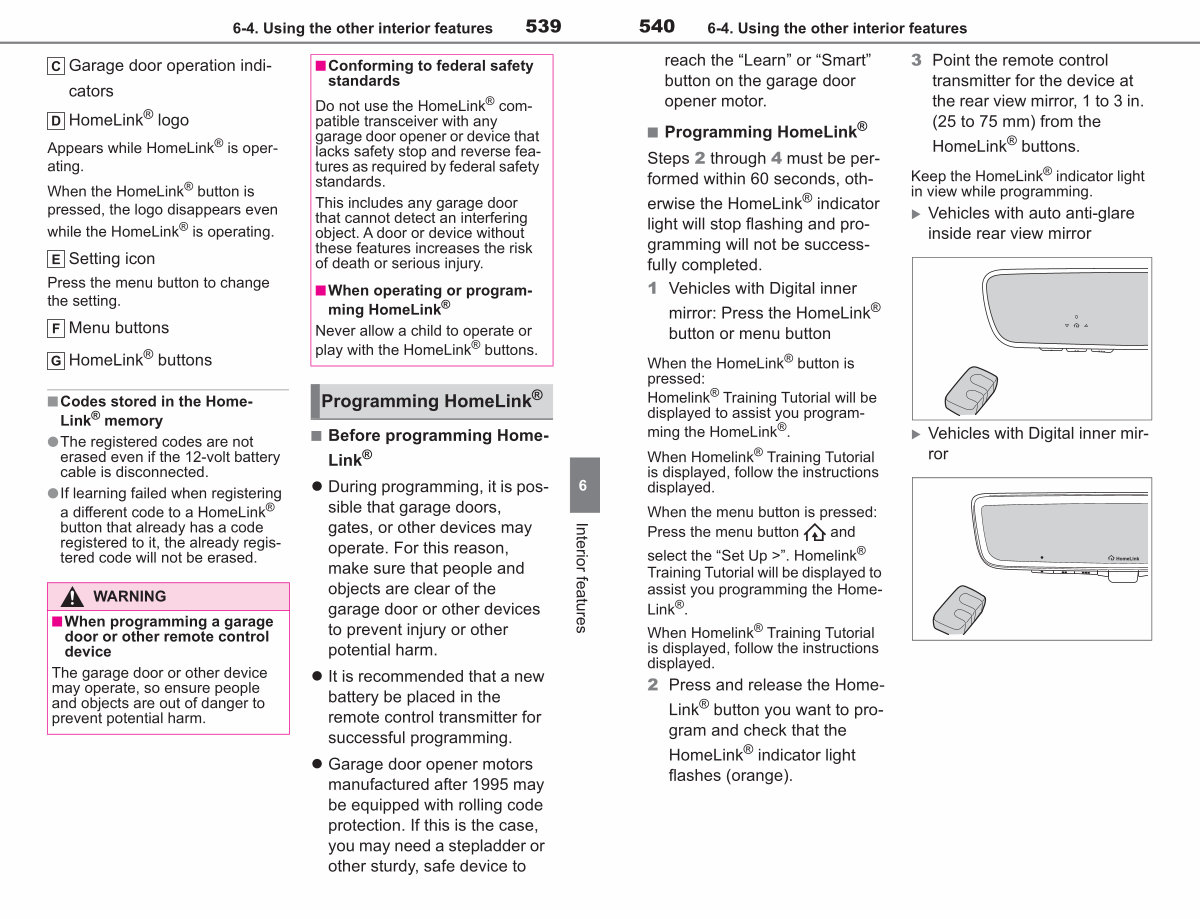

6-4. Using the other interior features
539
Garage door operation indicators HomeLink ® logo
Appears while HomeLink ® is operating.
When the HomeLink ® button is pressed, the logo disappears even
while the HomeLink ® is operating. Setting icon
Press the menu button to change the setting.
Menu buttons HomeLink ® buttons
■ Codes stored in the Home- Link ® memory
●The registered codes are not
erased even if the 12-volt battery cable is disconnected.
●If learning failed when registering a different code to a HomeLink ® button that already has a code
registered to it, the already registered code will not be erased.
WARNING
■ When programming a garage door or other remote control device
The garage door or other device may operate, so ensure people
and objects are out of danger to prevent potential harm.
■ Conforming to federal safety standards
Do not use the HomeLink ® compatible transceiver with any garage door opener or device that lacks safety stop and reverse features as required by federal safety standards.
This includes any garage door that cannot detect an interfering object. A door or device without
these features increases the risk of death or serious injury.
■ When operating or programming HomeLink ®
Never allow a child to operate or play with the HomeLink ® buttons.
Programming HomeLink ®
■ Before programming Home-
Link ®
• During programming, it is possible that garage doors, gates, or other devices may operate. For this reason, make sure that people and objects are clear of the garage door or other devices to prevent injury or other potential harm.
• It is recommended that a new battery be placed in the remote control transmitter for successful programming.
• Garage door opener motors manufactured after 1995 may be equipped with rolling code protection. If this is the case, you may need a stepladder or other sturdy, safe device to
6
Interior features
