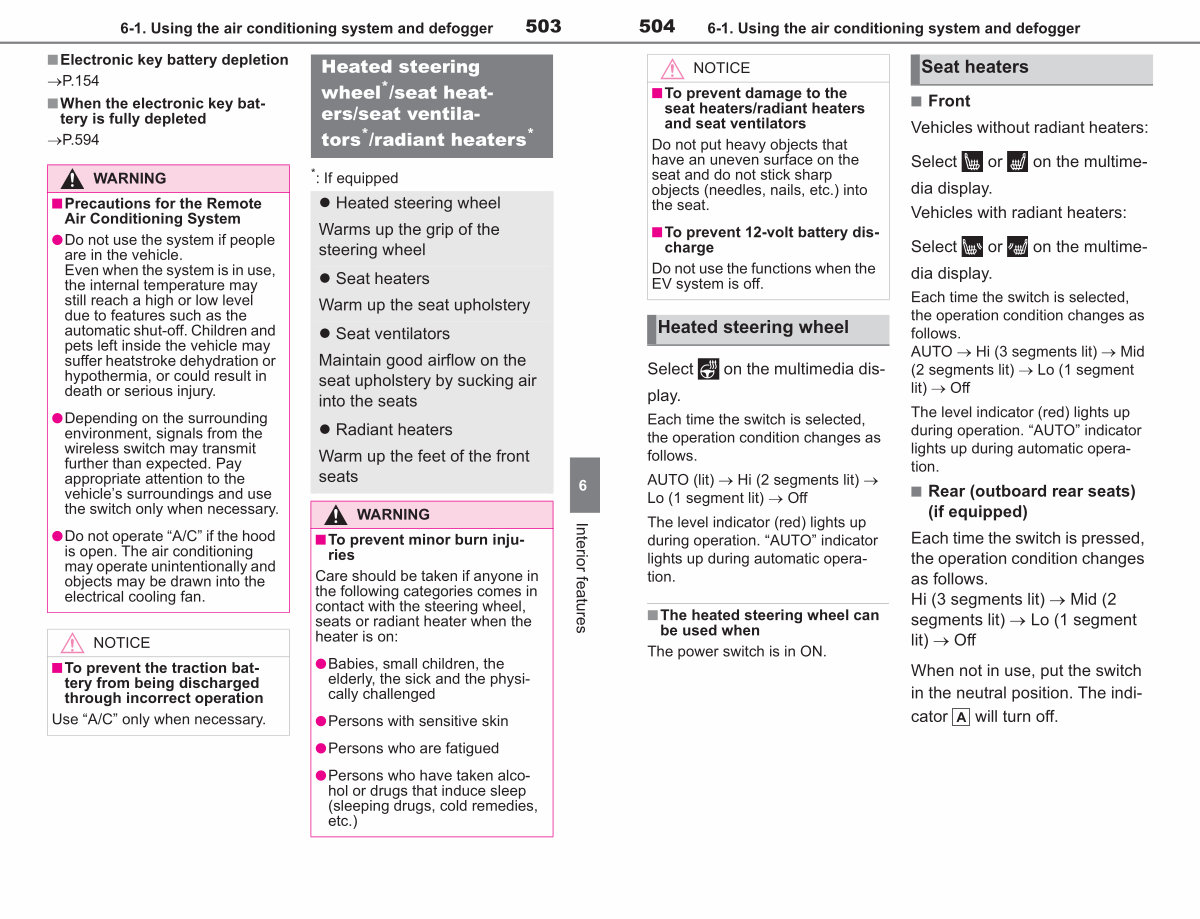

504 6-1. Using the air conditioning system and defogger
NOTICE
■ To prevent damage to the seat heaters / radiant heaters and seat ventilators
Do not put heavy objects that have an uneven surface on the seat and do not stick sharp
objects( needles, nails, etc.) into the seat.
■ To prevent 12-volt battery discharge
Do not use the functions when the EV system is off.
Heated steering wheel
Select on the multimedia display.
Each time the switch is selected, the operation condition changes as follows.
AUTO( lit) � Hi( 2 segments lit) � Lo( 1 segment lit) � Off
The level indicator( red) lights up during operation.“ AUTO” indicator lights up during automatic operation.
■ The heated steering wheel can be used when
The power switch is in ON.
Seat heaters
■ Front Vehicles without radiant heaters:
Select or on the multimedia display. Vehicles with radiant heaters:
Select or on the multimedia display.
Each time the switch is selected, the operation condition changes as follows. AUTO � Hi( 3 segments lit) � Mid( 2 segments lit) � Lo( 1 segment lit) � Off
The level indicator( red) lights up during operation.“ AUTO” indicator lights up during automatic operation.
■ Rear( outboard rear seats)( if equipped)
Each time the switch is pressed, the operation condition changes as follows. Hi( 3 segments lit) � Mid( 2 segments lit) � Lo( 1 segment lit) � Off
When not in use, put the switch in the neutral position. The indicator will turn off.
