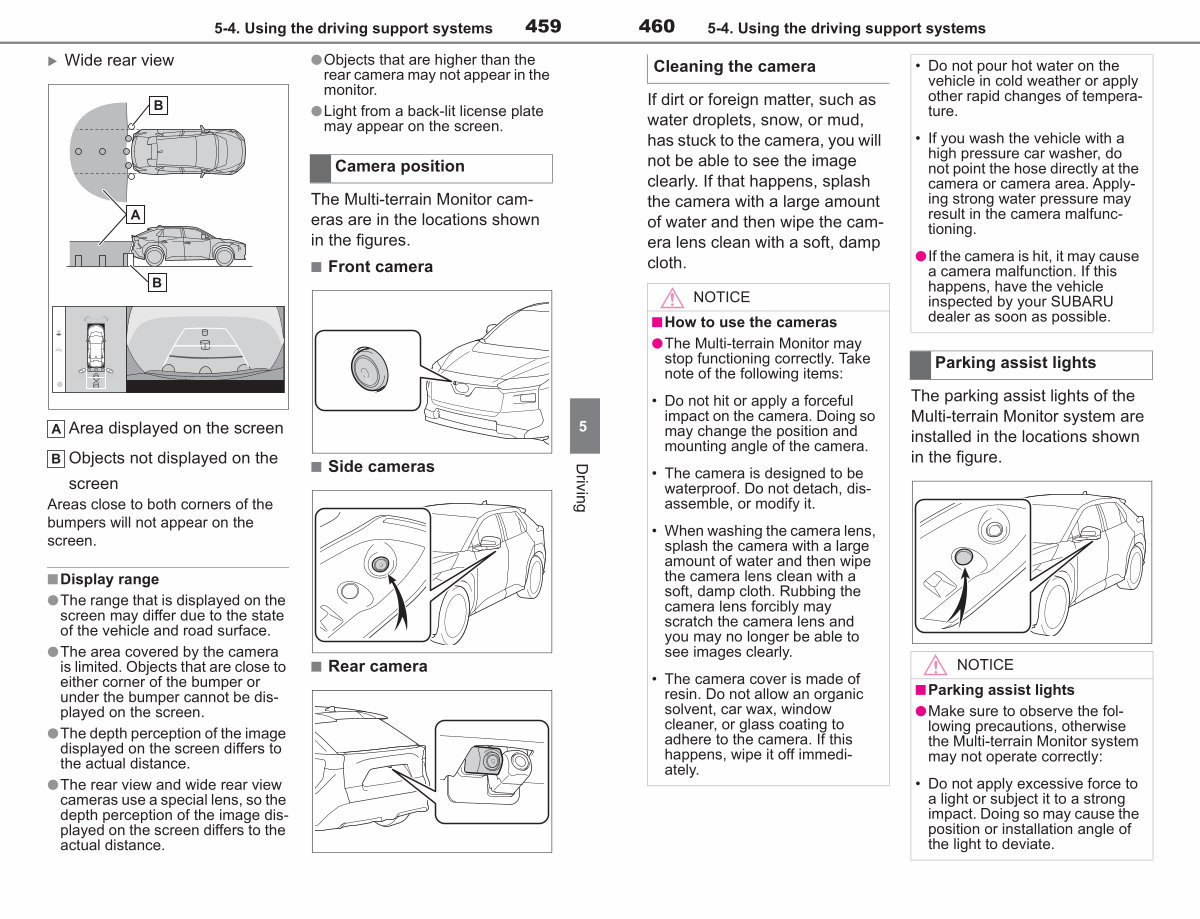

5-4. Using the driving support systems
459
� Wide rear view
●Objects that are higher than the rear camera may not appear in the monitor.
●Light from a back-lit license plate may appear on the screen.
Camera position
The Multi-terrain Monitor cameras are in the locations shown in the figures.
■ Front camera
Area displayed on the screen 5
Objects not displayed on the screen Areas close to both corners of the bumpers will not appear on the screen.
■ Side cameras
Driving
■ Display range
●The range that is displayed on the screen may differ due to the state of the vehicle and road surface.
●The area covered by the camera is limited. Objects that are close to either corner of the bumper or
under the bumper cannot be displayed on the screen.
●The depth perception of the image displayed on the screen differs to the actual distance.
●The rear view and wide rear view cameras use a special lens, so the depth perception of the image displayed on the screen differs to the actual distance.
■ Rear camera
