5-4. Using the driving support systems
457

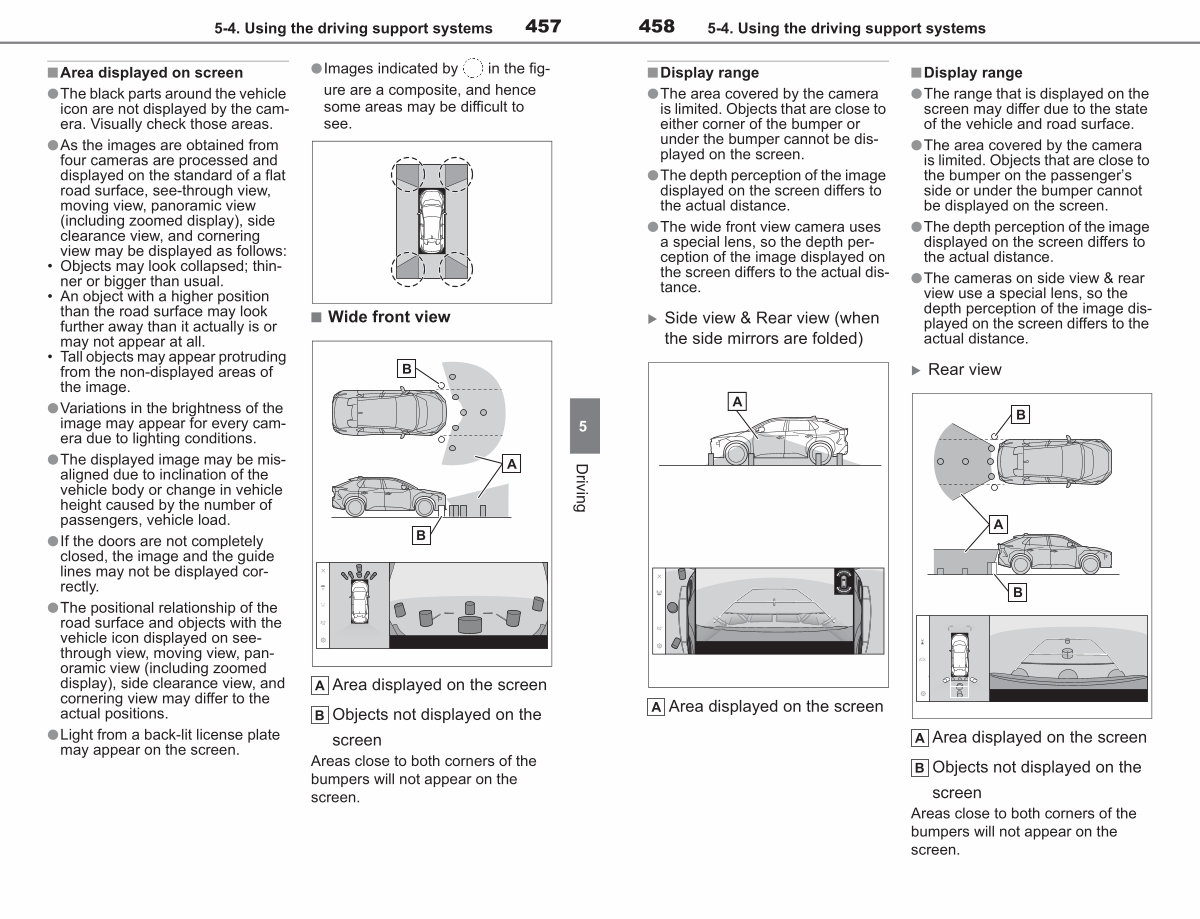

■ Area displayed on screen
●The black parts around the vehicle icon are not displayed by the camera. Visually check those areas.
●As the images are obtained from four cameras are processed and displayed on the standard of a flat
road surface, see-through view, moving view, panoramic view( including zoomed display), side
clearance view, and cornering view may be displayed as follows:
• Objects may look collapsed; thinner or bigger than usual.
• An object with a higher position than the road surface may look
further away than it actually is or may not appear at all.
• Tall objects may appear protruding
from the non-displayed areas of the image.
●Variations in the brightness of the image may appear for every camera due to lighting conditions.
●The displayed image may be misaligned due to inclination of the
vehicle body or change in vehicle height caused by the number of passengers, vehicle load.
●If the doors are not completely closed, the image and the guide
lines may not be displayed correctly.
●The positional relationship of the road surface and objects with the vehicle icon displayed on seethrough view, moving view, panoramic view( including zoomed display), side clearance view, and
cornering view may differ to the actual positions.
●Light from a back-lit license plate may appear on the screen.
● Images indicated by in the figure are a composite, and hence some areas may be difficult to see.
■ Wide front view
Area displayed on the screen Objects not displayed on the screen Areas close to both corners of the bumpers will not appear on the screen.
5
Driving
