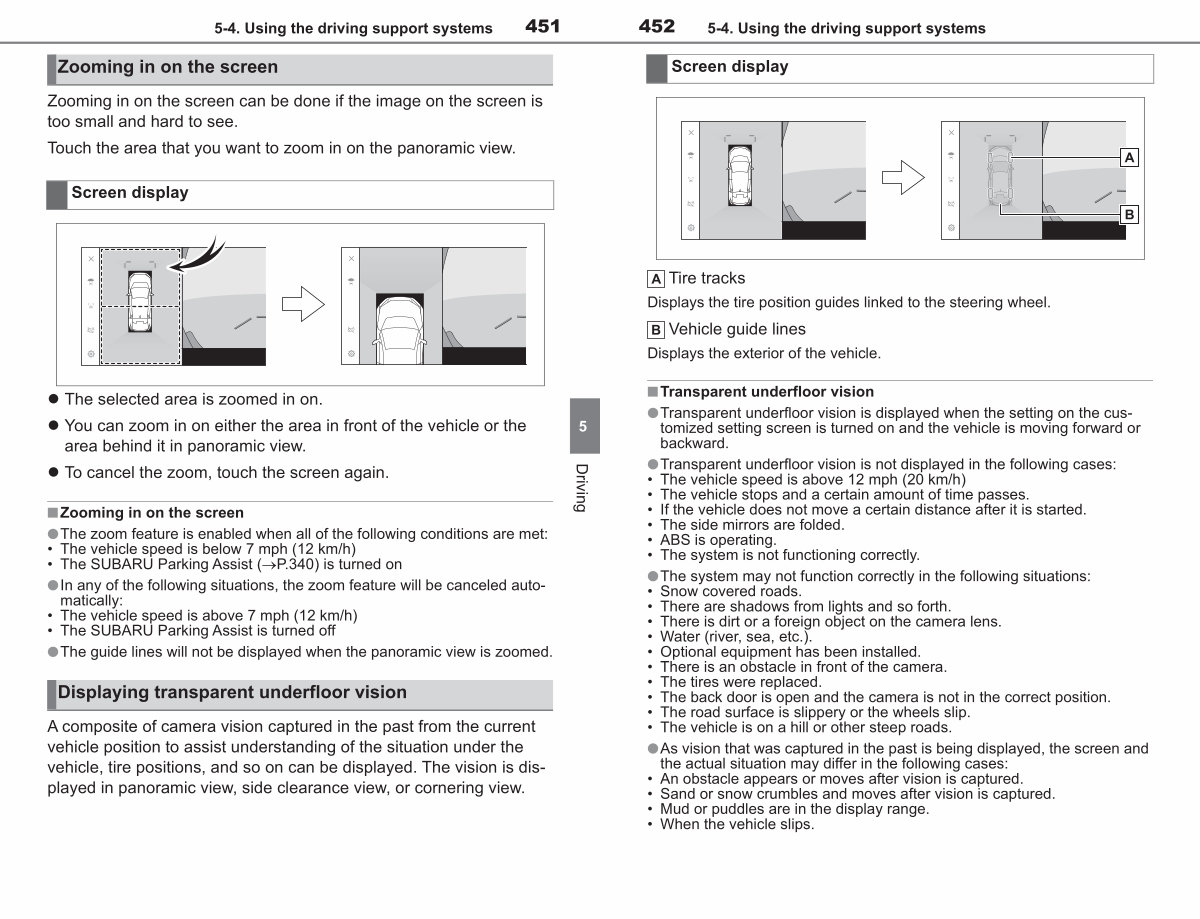

452 5-4. Using the driving support systems
Screen display
Tire tracks Displays the tire position guides linked to the steering wheel.
Vehicle guide lines Displays the exterior of the vehicle.
■ Transparent underfloor vision
●Transparent underfloor vision is displayed when the setting on the customized setting screen is turned on and the vehicle is moving forward or backward.
● Transparent underfloor vision is not displayed in the following cases:
• The vehicle speed is above 12 mph( 20 km / h)
• The vehicle stops and a certain amount of time passes.
• If the vehicle does not move a certain distance after it is started.
• The side mirrors are folded.
• ABS is operating.
• The system is not functioning correctly.
● The system may not function correctly in the following situations:
• Snow covered roads.
• There are shadows from lights and so forth.
• There is dirt or a foreign object on the camera lens.
• Water( river, sea, etc.).
• Optional equipment has been installed.
• There is an obstacle in front of the camera.
• The tires were replaced.
• The back door is open and the camera is not in the correct position.
• The road surface is slippery or the wheels slip.
• The vehicle is on a hill or other steep roads.
●As vision that was captured in the past is being displayed, the screen and the actual situation may differ in the following cases:
• An obstacle appears or moves after vision is captured.
• Sand or snow crumbles and moves after vision is captured.
• Mud or puddles are in the display range.
• When the vehicle slips.
