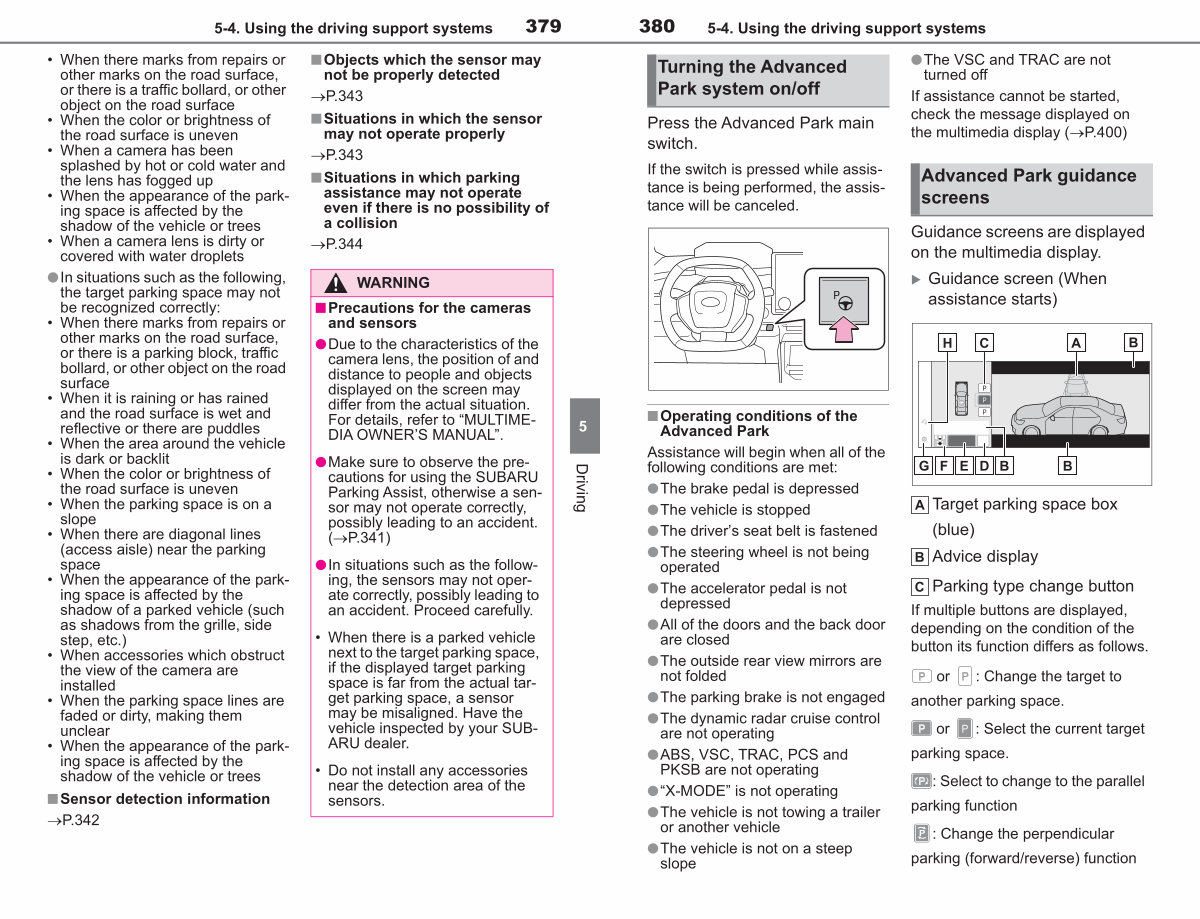

5-4. Using the driving support systems
379
• When there marks from repairs or other marks on the road surface, or there is a traffic bollard, or other object on the road surface
• When the color or brightness of the road surface is uneven
• When a camera has been splashed by hot or cold water and the lens has fogged up
• When the appearance of the parking space is affected by the shadow of the vehicle or trees
• When a camera lens is dirty or covered with water droplets
●In situations such as the following, the target parking space may not be recognized correctly:
• When there marks from repairs or other marks on the road surface, or there is a parking block, traffic
bollard, or other object on the road surface
• When it is raining or has rained
and the road surface is wet and reflective or there are puddles
• When the area around the vehicle
is dark or backlit
• When the color or brightness of the road surface is uneven
• When the parking space is on a slope
• When there are diagonal lines
( access aisle) near the parking space
• When the appearance of the parking space is affected by the shadow of a parked vehicle( such as shadows from the grille, side
step, etc.)
• When accessories which obstruct the view of the camera are
installed
• When the parking space lines are faded or dirty, making them unclear
• When the appearance of the parking space is affected by the shadow of the vehicle or trees
■ Sensor detection information �P. 342
■ Objects which the sensor may not be properly detected
�P. 343
■ Situations in which the sensor may not operate properly
�P. 343
■ Situations in which parking assistance may not operate even if there is no possibility of
a collision
�P. 344
WARNING
■ Precautions for the cameras and sensors
●Due to the characteristics of the camera lens, the position of and distance to people and objects displayed on the screen may differ from the actual situation. For details, refer to“ MULTIME- DIA OWNER’ S MANUAL”.
●Make sure to observe the precautions for using the SUBARU Parking Assist, otherwise a sensor may not operate correctly, possibly leading to an accident.( �P. 341)
●In situations such as the following, the sensors may not operate correctly, possibly leading to
an accident. Proceed carefully.
• When there is a parked vehicle next to the target parking space, if the displayed target parking
space is far from the actual target parking space, a sensor may be misaligned. Have the
vehicle inspected by your SUB- ARU dealer.
• Do not install any accessories near the detection area of the sensors.
5
Driving
