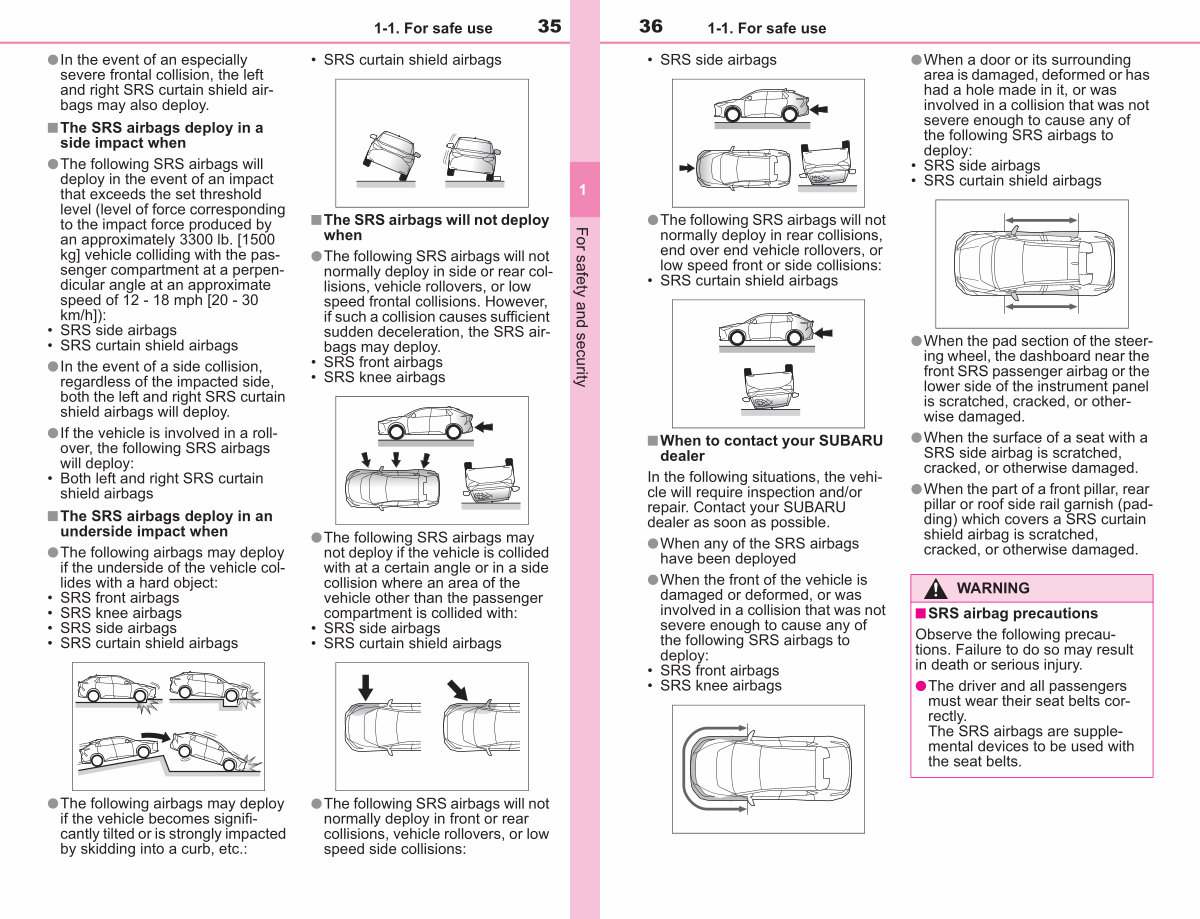

1-1. For safe use
35
●In the event of an especially severe frontal collision, the left and right SRS curtain shield airbags may also deploy.
■ The SRS airbags deploy in a side impact when
●The following SRS airbags will deploy in the event of an impact that exceeds the set threshold
level( level of force corresponding to the impact force produced by an approximately 3300 lb. [ 1500
kg ] vehicle colliding with the passenger compartment at a perpendicular angle at an approximate
speed of 12- 18 mph [ 20- 30 km / h ]):
• SRS side airbags
• SRS curtain shield airbags
●In the event of a side collision,
regardless of the impacted side, both the left and right SRS curtain shield airbags will deploy.
●If the vehicle is involved in a rollover, the following SRS airbags
will deploy:
• Both left and right SRS curtain shield airbags
■ The SRS airbags deploy in an underside impact when
●The following airbags may deploy
if the underside of the vehicle collides with a hard object:
• SRS front airbags
• SRS knee airbags
• SRS side airbags
• SRS curtain shield airbags
• SRS curtain shield airbags
■ The SRS airbags will not deploy when
●The following SRS airbags will not
normally deploy in side or rear collisions, vehicle rollovers, or low speed frontal collisions. However,
if such a collision causes sufficient sudden deceleration, the SRS airbags may deploy.
• SRS front airbags
• SRS knee airbags
●The following SRS airbags may not deploy if the vehicle is collided with at a certain angle or in a side
collision where an area of the vehicle other than the passenger compartment is collided with:
• SRS side airbags
• SRS curtain shield airbags
1
For safety and security
●The following airbags may deploy
if the vehicle becomes significantly tilted or is strongly impacted by skidding into a curb, etc.:
●The following SRS airbags will not normally deploy in front or rear
collisions, vehicle rollovers, or low speed side collisions:
