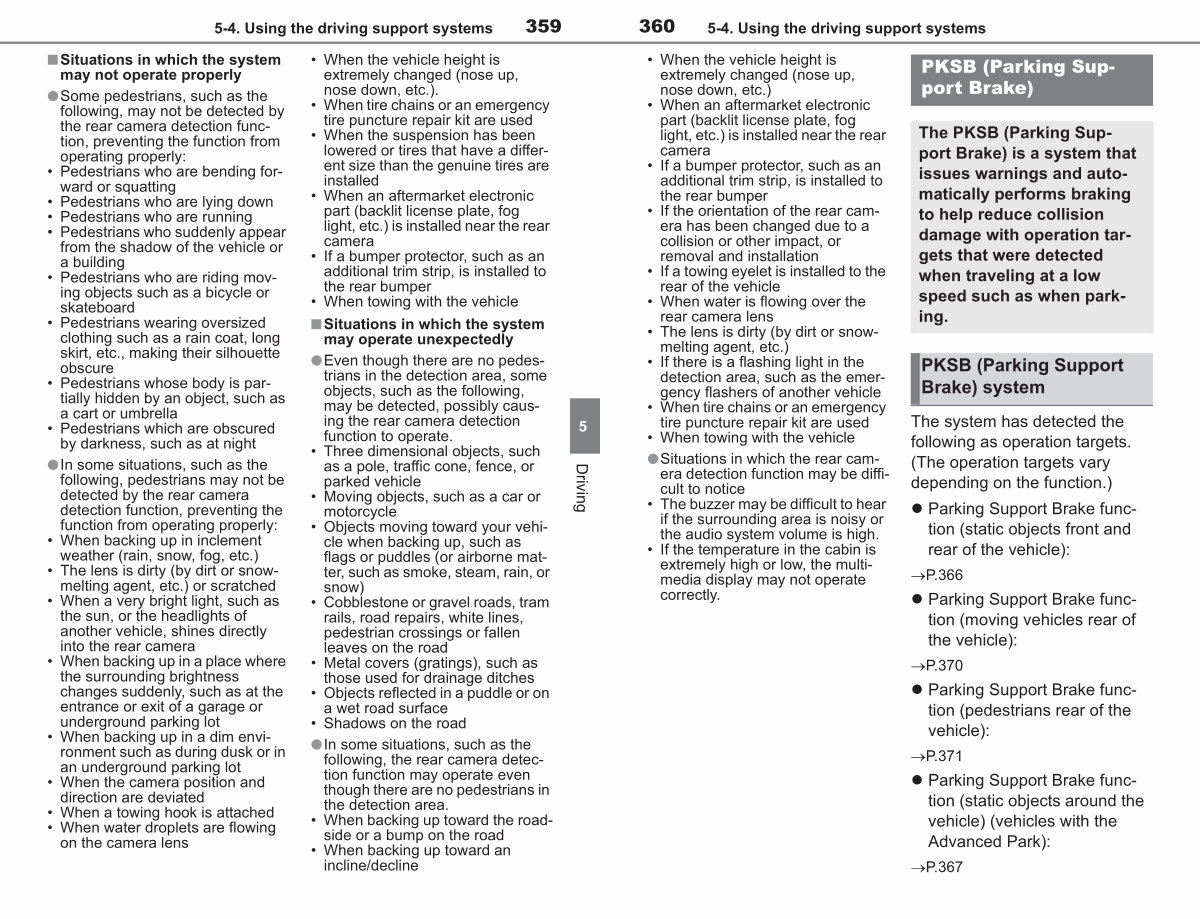

360 5-4. Using the driving support systems
• When the vehicle height is extremely changed( nose up, nose down, etc.)
• When an aftermarket electronic part( backlit license plate, fog light, etc.) is installed near the rear camera
• If a bumper protector, such as an additional trim strip, is installed to
the rear bumper
• If the orientation of the rear camera has been changed due to a
collision or other impact, or removal and installation
• If a towing eyelet is installed to the
rear of the vehicle
• When water is flowing over the rear camera lens
• The lens is dirty( by dirt or snowmelting agent, etc.)
• If there is a flashing light in the
detection area, such as the emergency flashers of another vehicle
• When tire chains or an emergency
tire puncture repair kit are used
• When towing with the vehicle
●Situations in which the rear camera detection function may be difficult to notice
• The buzzer may be difficult to hear if the surrounding area is noisy or the audio system volume is high.
• If the temperature in the cabin is extremely high or low, the multimedia display may not operate
correctly.
PKSB( Parking Support Brake)
The PKSB( Parking Support Brake) is a system that issues warnings and automatically performs braking to help reduce collision damage with operation targets that were detected when traveling at a low speed such as when parking.
PKSB( Parking Support Brake) system
The system has detected the following as operation targets.( The operation targets vary depending on the function.)
• Parking Support Brake function( static objects front and rear of the vehicle):
�P. 366
• Parking Support Brake function( moving vehicles rear of the vehicle):
�P. 370
• Parking Support Brake function( pedestrians rear of the vehicle):
�P. 371
• Parking Support Brake function( static objects around the vehicle)( vehicles with the Advanced Park):
�P. 367
