1-1. For safe use
31

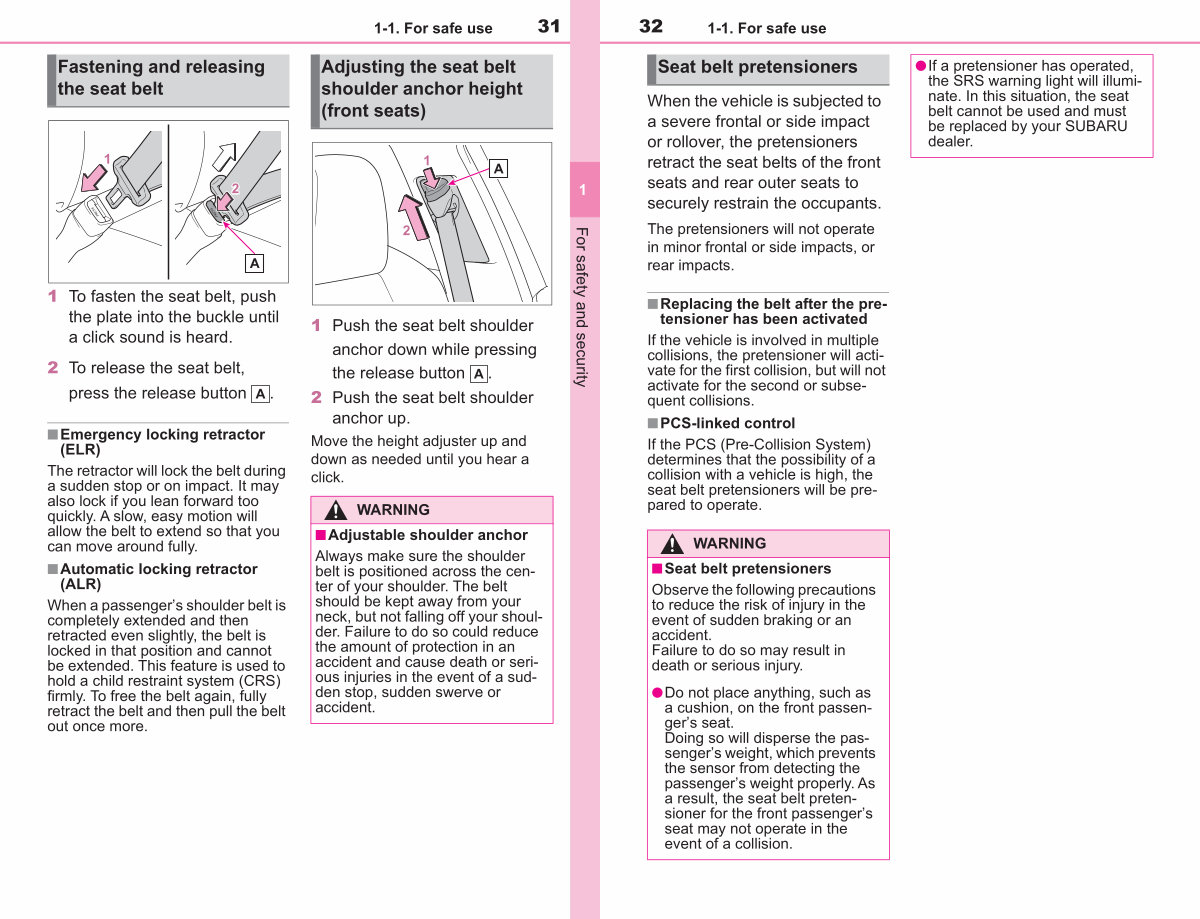

Fastening and releasing the seat belt
Adjusting the seat belt shoulder anchor height( front seats)
1
1 To fasten the seat belt, push the plate into the buckle until a click sound is heard.
2 To release the seat belt, press the release button.
■ Emergency locking retractor( ELR)
The retractor will lock the belt during a sudden stop or on impact. It may
also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you
can move around fully.
■ Automatic locking retractor( ALR)
When a passenger’ s shoulder belt is completely extended and then retracted even slightly, the belt is
locked in that position and cannot be extended. This feature is used to hold a child restraint system( CRS)
firmly. To free the belt again, fully retract the belt and then pull the belt out once more.
1 Push the seat belt shoulder anchor down while pressing the release button.
2 Push the seat belt shoulder anchor up.
Move the height adjuster up and down as needed until you hear a click.
WARNING
■ Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your
neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop, sudden swerve or
accident.
For safety and security
