294 5-4. Using the driving support systems
WARNING
●Situations in which the lane may not be detected: �P. 266
●Situations in which the sensors may not operate properly: �P. 264
●Situations in which some or all
of the functions of the system cannot operate: �P. 266
●When it is necessary to disable the system: �P. 259

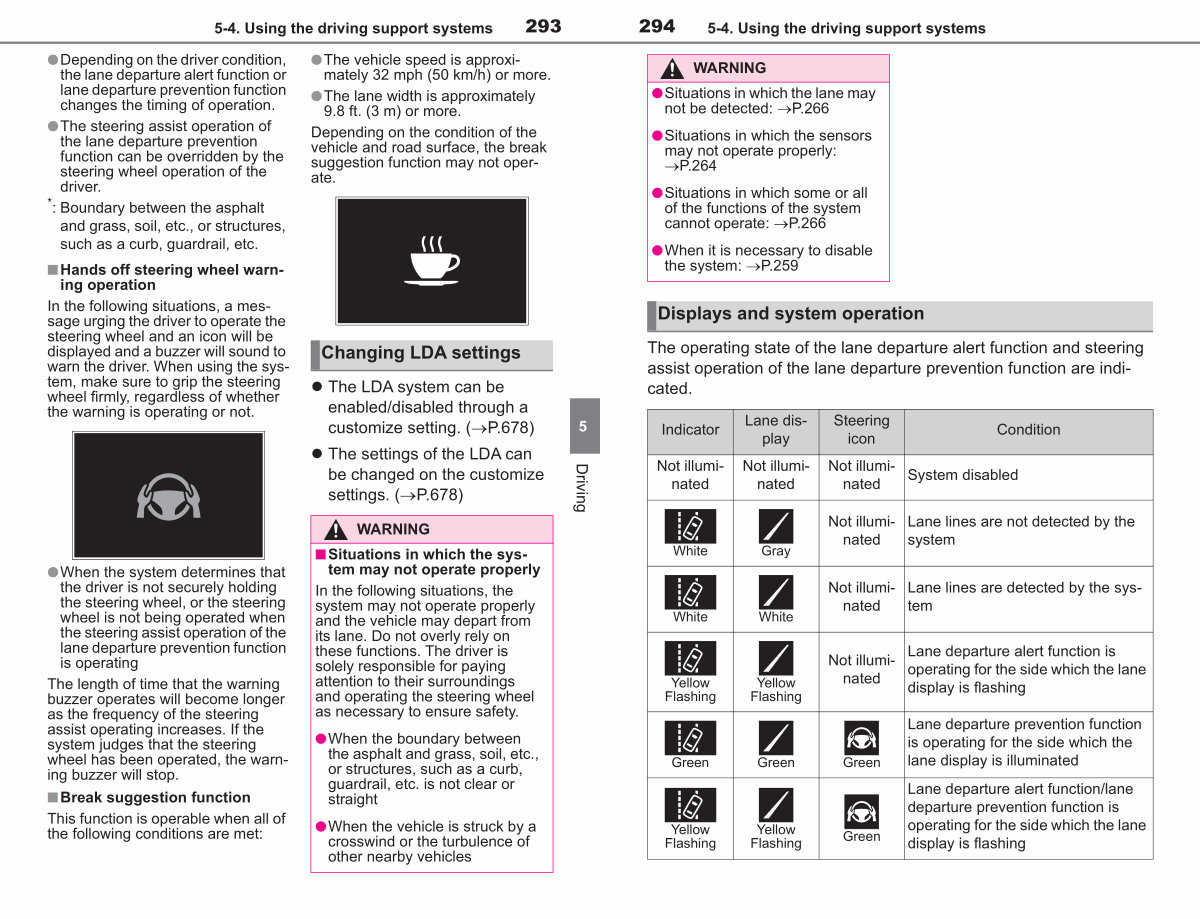

Displays and system operation
The operating state of the lane departure alert function and steering assist operation of the lane departure prevention function are indicated.
Indicator |
Lane display |
Steering icon |
Condition |
Not illuminated |
Not illuminated |
Not illuminated |
System disabled |
White |
Gray |
Not illuminated |
Lane lines are not detected by the system |
White |
White |
Not illuminated |
Lane lines are detected by the system |
Yellow Flashing
Yellow Flashing
Not illuminated
Green Green Green
Yellow Flashing
Yellow Flashing
Green
Lane departure alert function is operating for the side which the lane display is flashing
Lane departure prevention function is operating for the side which the lane display is illuminated
Lane departure alert function / lane departure prevention function is operating for the side which the lane display is flashing
