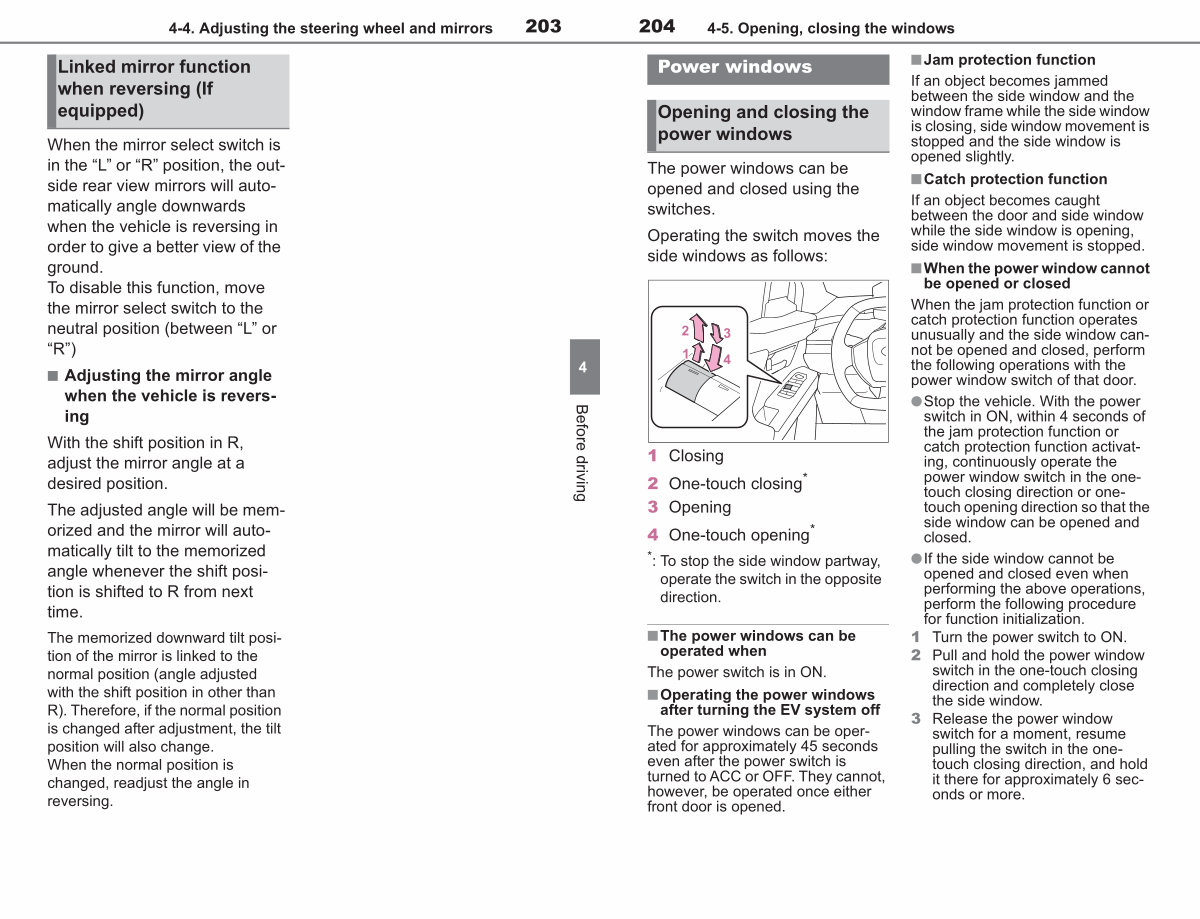

204 4-5. Opening, closing the windows
Power windows
4-5. Opening, closing the windows
Opening and closing the power windows
The power windows can be opened and closed using the switches.
Operating the switch moves the side windows as follows:
1 Closing 2 One-touch closing * 3 Opening 4 One-touch opening * *: To stop the side window partway,
operate the switch in the opposite direction.
■ The power windows can be operated when
The power switch is in ON.
■ Operating the power windows after turning the EV system off
The power windows can be operated for approximately 45 seconds even after the power switch is turned to ACC or OFF. They cannot, however, be operated once either front door is opened.
■ Jam protection function
If an object becomes jammed between the side window and the window frame while the side window is closing, side window movement is stopped and the side window is opened slightly.
■ Catch protection function If an object becomes caught between the door and side window while the side window is opening,
side window movement is stopped.
■ When the power window cannot be opened or closed
When the jam protection function or catch protection function operates unusually and the side window cannot be opened and closed, perform the following operations with the power window switch of that door.
●Stop the vehicle. With the power switch in ON, within 4 seconds of
the jam protection function or catch protection function activating, continuously operate the
power window switch in the onetouch closing direction or onetouch opening direction so that the
side window can be opened and closed.
●If the side window cannot be opened and closed even when performing the above operations,
perform the following procedure for function initialization.
1 Turn the power switch to ON.
2 Pull and hold the power window switch in the one-touch closing
direction and completely close the side window.
3 Release the power window switch for a moment, resume pulling the switch in the onetouch closing direction, and hold it there for approximately 6 seconds or more.
