3-1. Instrument cluster
143
Shift position indicator / regenerative braking power indicator.( �P. 233) SOC( State of Charge) gauge
Displays the amount of charge remaining in the traction battery.
Driving range Displays driving range with remaining charge.( �P. 233)
When the air conditioning system is operating, and the driving range with the air conditioning system on are displayed. Odometer and trip meter display( �P. 144)

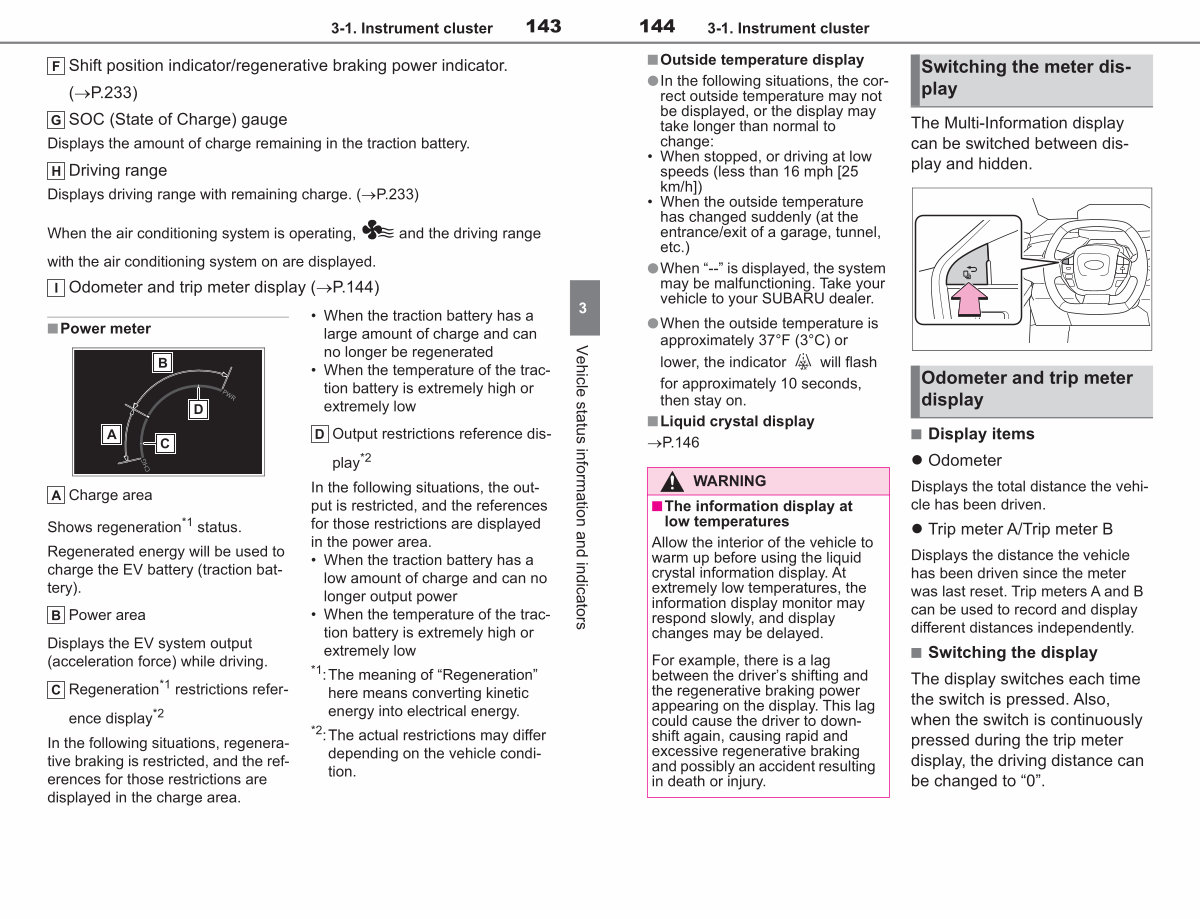

■ Power meter
Charge area
Shows regeneration * 1 status.
Regenerated energy will be used to charge the EV battery( traction battery).
Power area
Displays the EV system output( acceleration force) while driving.
Regeneration * 1 restrictions reference display * 2
In the following situations, regenerative braking is restricted, and the references for those restrictions are displayed in the charge area.
• When the traction battery has a large amount of charge and can no longer be regenerated
• When the temperature of the traction battery is extremely high or extremely low
Output restrictions reference display * 2
In the following situations, the output is restricted, and the references for those restrictions are displayed in the power area.
• When the traction battery has a low amount of charge and can no longer output power
• When the temperature of the traction battery is extremely high or extremely low
* 1: The meaning of“ Regeneration”
here means converting kinetic energy into electrical energy.
* 2: The actual restrictions may differ
depending on the vehicle condition.
3
Vehicle status information and indicators
